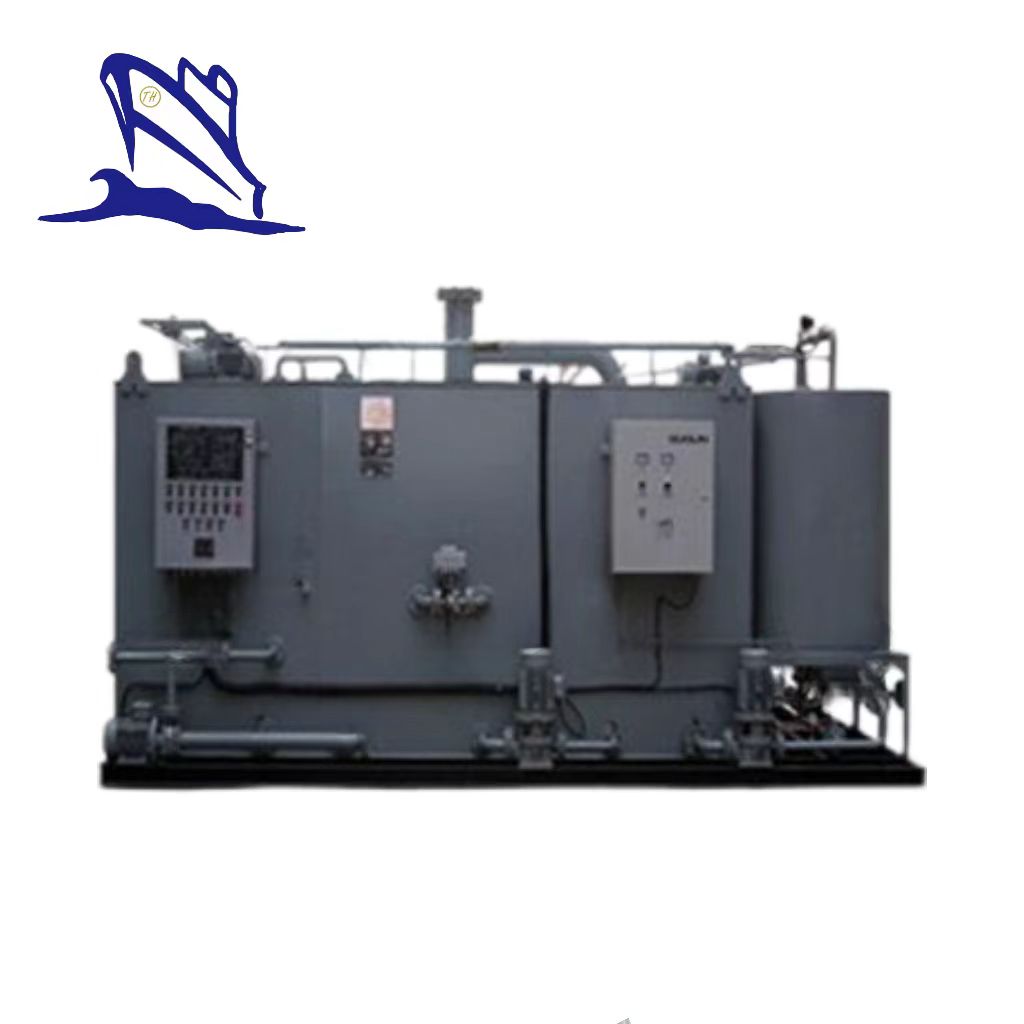

3780L/d Marine Sewage Treatment Plant
3780L/d Marine Sewage Treatment Plant
Purpose:
The device is applicable to treat the sewage and the grey water from the toilet, to meet the standard of IMO. MEPC159（55), and discharge the effluent overboard.
Working Condition:
Environment Condition
Working Environment Temperature: 0℃～+50℃
Environment Relative Humidity: ≤90%
Voltage: AC380V/50Hz/3φ
Composition:
The device consists of main components as follows:
No. | Name | Unit | Qty. | Remarks |
1 | Main body（buffer tank、sequence tank） | Set | 1 | Q235-A |
2 | Cutting pump（50CPW0.5-10B） | Set | 1 | |
3 | Air pump(CYBW-20 ) | Set | 1 | |
4 | Discharge pump (CLH40-32-2(Z)A) | Set | 1 | |
5 | Dosing pump(DL7-5) | Set | 1 | |
6 | Membrane assembly(6040W) | Set | 1 | |
7 | UV-sterilizer(JX-0.5UV) | Set | 1 | |
8 | Electric control box | Set | 1 | |
9 | Motor two-way ball valve(C800-40BF) | Pc | 1 | |
10 | Flowmeter(Z-6016) | Pcs | 2 | |
11 | Level switch | Pcs | 2 | |
12 | Pressure gauge(YC60 0～0.6MPa) | Pcs | 3 |
Specifications:
Model: WCMBR-50(U)
Usage of person: Rated usage of person: 50P
Treatment capacity: Average: 3780L/d
Effluent quality:
BOD5≯25mg/L
TSS≯35mg/L
Coliform≯100MPN/100ml
COD≯125 mg/L
PH=6～8.5
Residual chlorine＜0.5mg/l
Effluent pressure: 0.10MPa
Compressed air (provided by the client): 0.1～0.3MPa, 0.2m3/h.
Membrane flush water: Fresh water, Pressure: 0.1～0.3MPa.
