MARINE LADDER

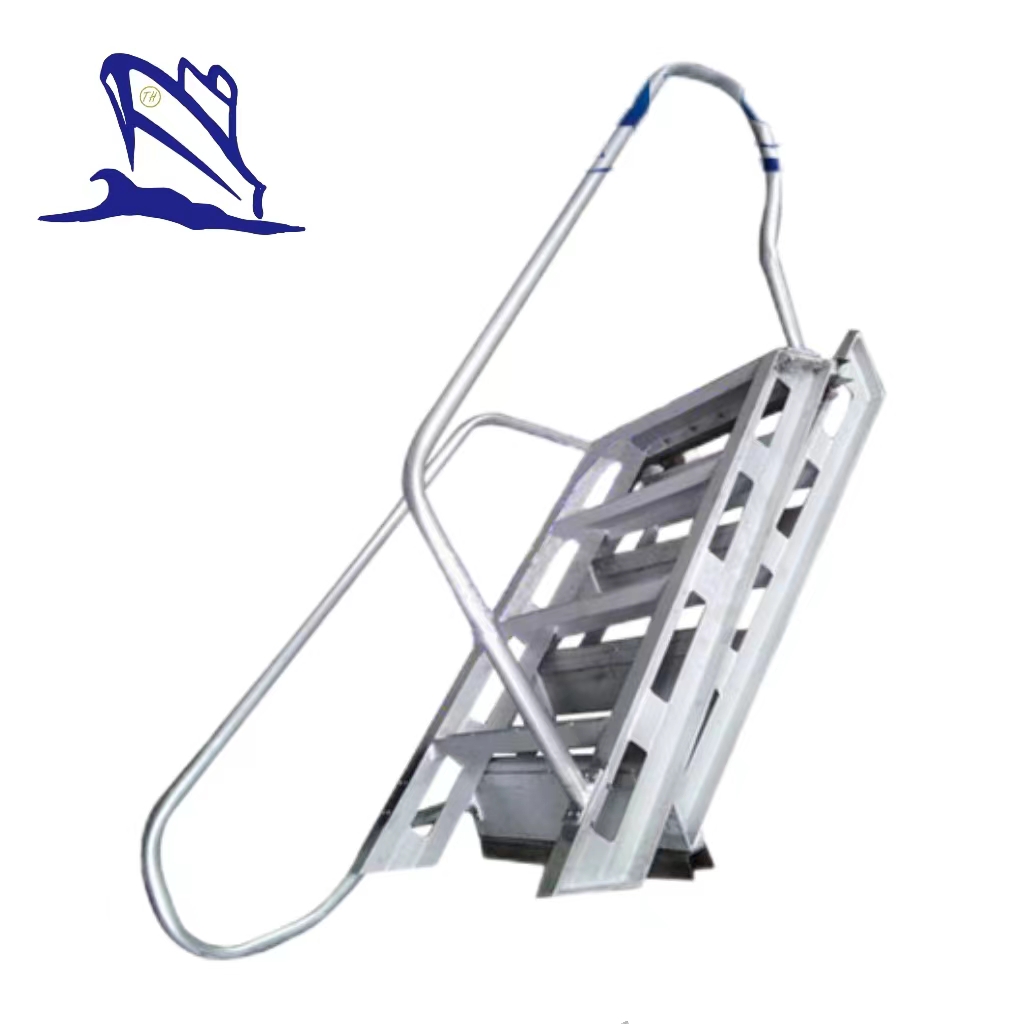

Marine Cargo Hold Inclined Ladder

This ship inclined ladder is used for the general cargo ship and bulk carrier with tonnage over 300 tons. It is designed with the feature of reliable structure and skid resistance. We can supply various types and sizes which conforming to international standard to meet customer’s demand. This cargo hold inclined ladder is in conformity with the requirements of Australia dock-man regulations.

Features:

1. Application: used in cargo hold of ships with gross tonnage of 300 tons and above

2. Features: durable structure, anti-skid

3. Standard: CB*801-85

4. Certificates: CCS, ABS, BV, DNV, GL, LR, RINA, KR, NK, etc.

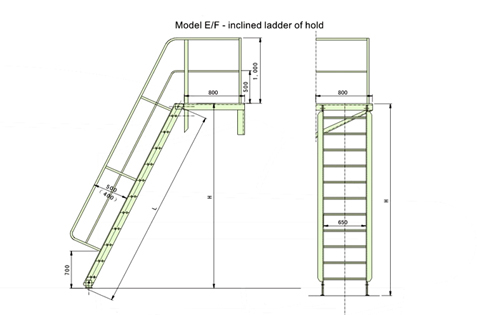

Drawing of Model E-F Cargo Hold Inclined Ladder

Model	Name	Inclination (a)	B(mm)	L(mm)	Application

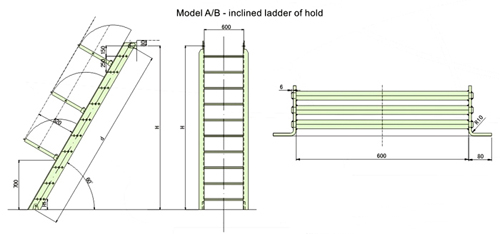

A	Cargo hold inclined ladder with left detachable handrail	60°, 65°	600	2500-6700	general cargo ship
B	Cargo hold inclined ladder with right detachable handrail

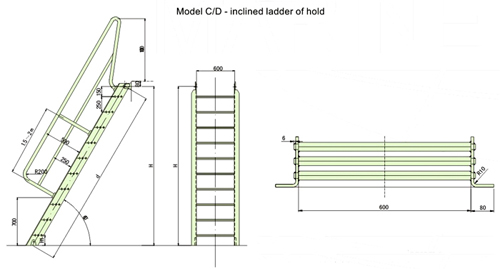

C	Cargo hold inclined ladder with left fixed handrail
D	Cargo hold inclined ladder with right fixed handrail
E	Cargo hold inclined ladder with left fixed handrail	60°, 65°	650	2500-6750	bulk carrier
F	Cargo hold inclined ladder with right fixed handrail
