Biochemical Waste Water Treatment Equipment

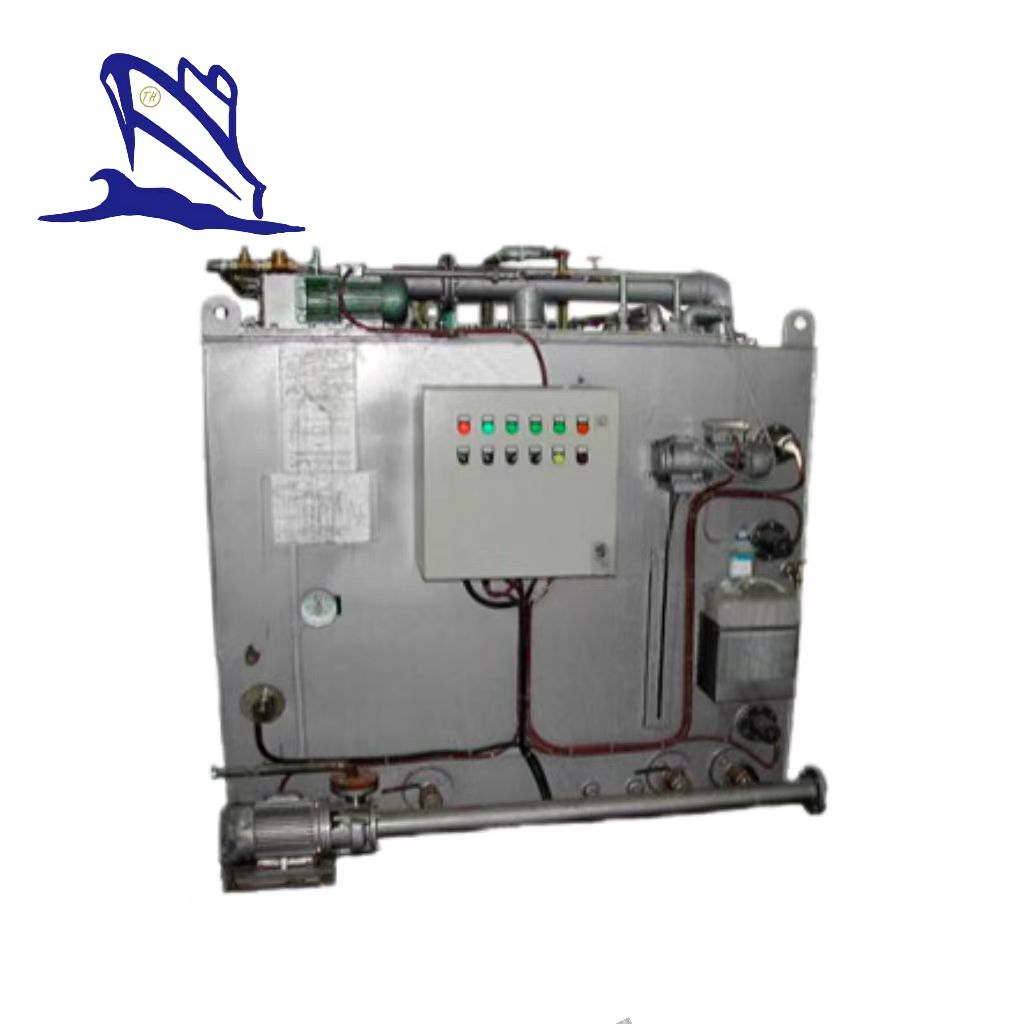

Biochemical Waste Water Treatment Equipment for 10 Persons
The plant is applicable to treat the sewage from the toilets on ships to satisfy international standards for effluent discharge.
The plant can be used for sterilizing gray water on ships as well.
SWCB type Biochemical Sewage Treatment Plant uses the activated sludge and the principle of biologic membranes to digest organic pollutant.
The plant treats organic pollution substance by using the principles of biochemical method.

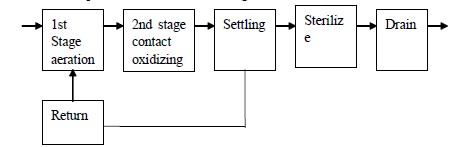

The treatment procedures of the plants are shown as following:
Sewage inlet
MARKS
1. The plant can be used on inspected or non-inspected ships.
2. The plant can use either fresh water or seawater to flush sewage in toilets.
3. The test pressure of the tank is 0.021MPa.
4. The effluent index of the plant is in compliance with the standards of IMO.
Main Technical Parameters:
| Specification | SWCB-10 | |
| Treated Load | Average (L/D) | 840 |
| Pinnacle(L/H) | 105 | |
| Organic Load (kgBOD5/d) | 0.42 | |
| Rated Capacity (Person) | 10 | |
| Max. Capacity (Person) | 12 | |
| Power | AC 380V/50HZ/3Φ, AC440V/60HZ/3Φ | |
| Chemical Consumption (kg/d) | 0.034 | |
| Air Pump | Type | CYBW-6 |
| Capacity (m³/h) | 6 | |
| Pressure (Kpa) | 60 | |
| Speed (r/min) | 1400/1720 | |
| Motor Power (kw) | 0.25 | |
| Cutting and Discharge Pump | Type | 0.5CWF-8 |
| Capacity (m³/h) | 5 | |
| Pressure (Kpa) | 0.08 | |
| Speed (r/min) | 2840/3470 | |
| Motor Power (kw) | 0.75 | |
| Motor Type | YS-H8012 | |
| Size (mm) (L*W*H) | 1300*1170*1380 | |
| Weight | Dry (kg) | 1050 |
| Wet (kg) | 2100 | |
| Pollution Discharge | Biochemical Oxygen Demand(BOD5)≤50mg/L, Suspended Solid(SS)≤50mg/L, Colichin≤250pc/100ml, Phvalue6-9 | |
