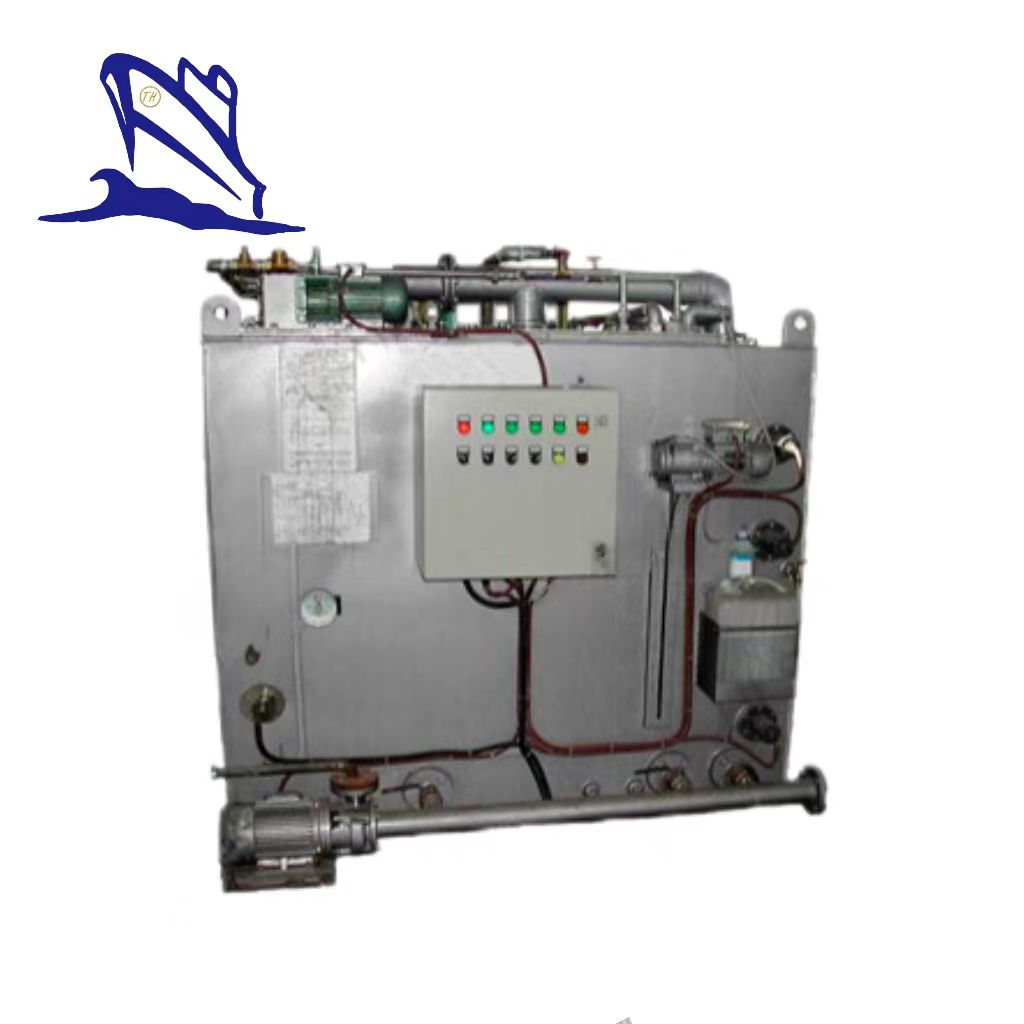

10 Persons Wastewater Treatment Device
10 Persons Wastewater Treatment Device
The regulation specifies the requirements of constitution, main function, design, manufacture, test and delivery for SWCB-10 type Sewage Treatment Plant (hereinafter to be referred as SWCB-10 type Device).
Main technical characteristic
1. Model: SWCB-10 Type
2. Quantity: 1 set/vessel
3. Capacity: Rated capacity: 10persons
4. Max capacity: 12persons
5. Emission index: BOD5≯50mg/l; SS≯50mg/l; Coliform group≯250/100ml; PH =6~9
6. Voltage: 400V/ 50Hz /3Φ
7. Power: 1.5KW
2.8 Outline dimension: L×W×H=1300×1170×1380mm
2.9 Dry weight/wet wight: 1050/2210 kg
Equipment list
1. Complete machine is provided with SWCB-10 type device one set, the main components include:
No. | Name | Model | Amount | Remarks |
1 | The device base | 321DF-10-01 | 1set | Material: Q235-B |
2 | Main body | 321DF-10-02 | 1set | Material: Q235-B |
3 | Cutting pump | 0.5CWF-8 | 1set | Marine electric machine |
4 | Electric control box | 321DF-1-00YL | 1set | The main components select Schneider product |
5 | Air pump | CYBW-10 | 1set | Marine electric machine |
6 | Dosing pump | 1set | ||
7 | Piping accessory of device | 1set |
2. Spare parts
one set of standard spare part is provided as follows:
No. | Name | Amount | Remarks |
1 | O ring | 1pc | Cutting pump |
2 | Mechanical seal | 1pc | Cutting pump |
3 | Sliding vane | 4pcs | Air pump |
