15ppm Oil Water Separator Factory
Our 15ppm oil water separator factory is located in Chongqing, China.
We are specializing in the marine equipments more than 20 years. Also, we have many other marine equipments, such as sewage treatment plant, Ballast Water System, pressure water tank.
The certificate CCS, BV, EC, GL, LR, NK, ABS, and USCG, etc. is provable.

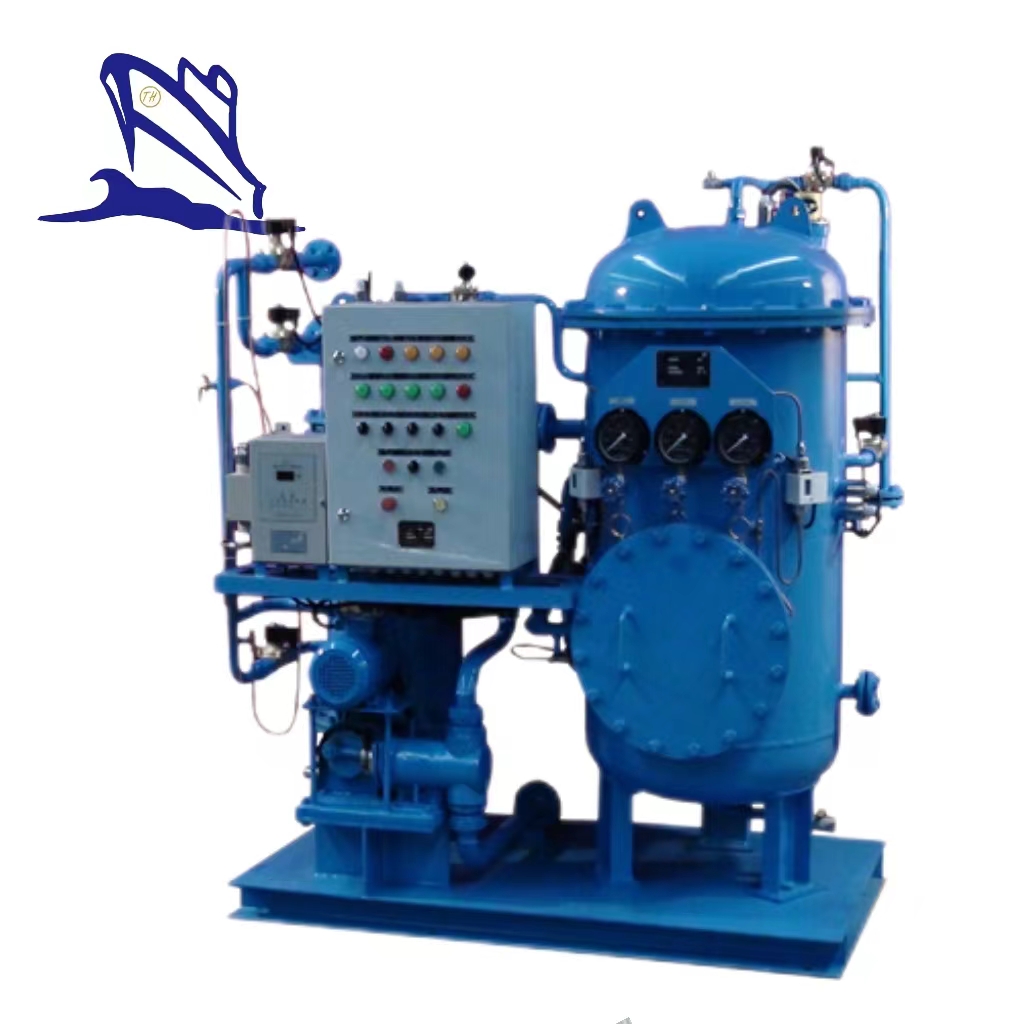

In our factory, there are 8 types of Series 15ppm Bilge Separator (15ppm Bilge Separator), the capacity from 0.1m3/h to 5.00 m3/h.
The smallest type is YZS-0.1 which can be installed on ship less than 1000DWT.The biggest type is YZS-5.00 which can be installed on ship more than 300 thousand DWT.
This separator can also be used in industrial and petroleum, besides in ship vessels.
The Types of Our YZS Series 15ppm Bilge Separator:
Mod. | YSZ-0.1 | YSZ-0.25 | YSZ-0.5 | YSZ-1.0 | YSZ-2.0 | YSZ-3.0 | YSZ-4.0 | YSZ-5.0 |
Rated Capacity | 0.1 | 0.25 | 0.5 | 1.0 | 2.0 | 3.0 | 4.0 | 5.0 |
Discharge Standard | ≤15ppm, satisfying（IMO）MEPC.107（49） | |||||||
Working pressure | ≤0.3MPa | |||||||
Motor power(kw) | 0.12 | 0.18 | 0.25 | 0.37 | 0.75 | 1.1 | 1.5 | 1.5 |
Electric heating | - | 1 | 2 | 2~3 | 3 | |||
Power supply | 3Ph/380V/50Hz; 3Ph/440V/60Hz (optional) | |||||||
