MARINE LADDER

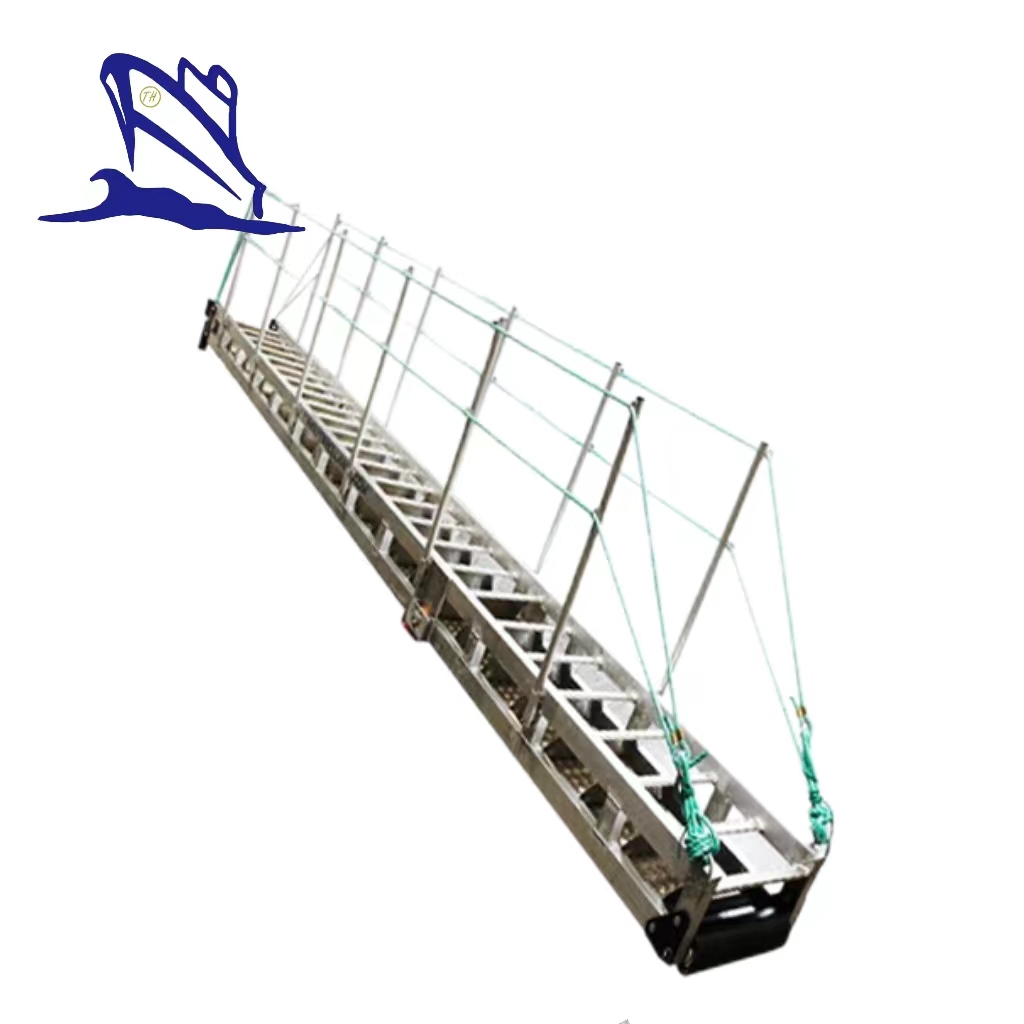

Marine Aluminum Accommodation Ladder

This product is fixing arc step accommodation ladder made of aluminum alloy. It is in conformity with the requirements of standard ISO5488-1979 and is applicable to ships of various types. This marine accommodation ladder has a light weight and high intensity. The steps are fixed arc steps with skid-proof grooves on the surface. All of them are anodized. According to the customer's request, it can be designed as vertical flip type, flat place type and telescopic type.

Features:

1. Material: aluminum

2. Step: fixed arc step with skid-proof grooves, anodized

3. Handrail: rope/steel/aluminum

4. Standard: CB/T14360-93

5. Certificates: CCS, BV, ABS, RINA, GL, LR, NK, KR, etc.

6. OEM service available

、

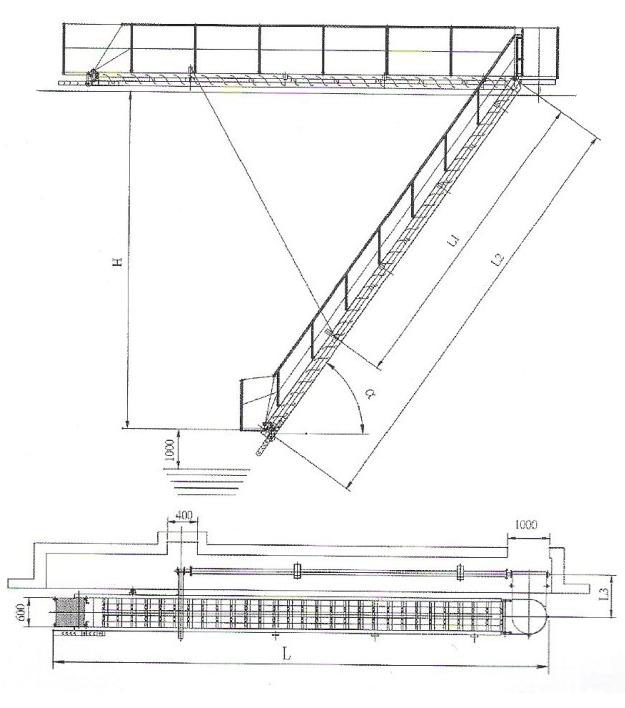

Drawing of Marine Aluminum Accommodation Ladder

Number of Steps	L1 (mm)	Max. Height (H:mm)	L (mm)	h (mm)	Weight (kg)
12	3600	3500	5290	250	320
14	4200	4100	5890	250	330
16	4800	4590	6490	250	340
18	5400	5080	7090	250	530
20	6000	5800	7690	250	560
22	6600	6300	8290	250	580
24	7200	6800	8890	250	600
28	8400	7800	10090	250	780
32	9600	8800	11290	250	850
36	10800	9800	12490	320	890
40	12000	10800	13690	320	970
44	13200	11800	14890	350	1180
48	14400	12800	16090	350	1260
52	15600	13800	17290	420	1370
