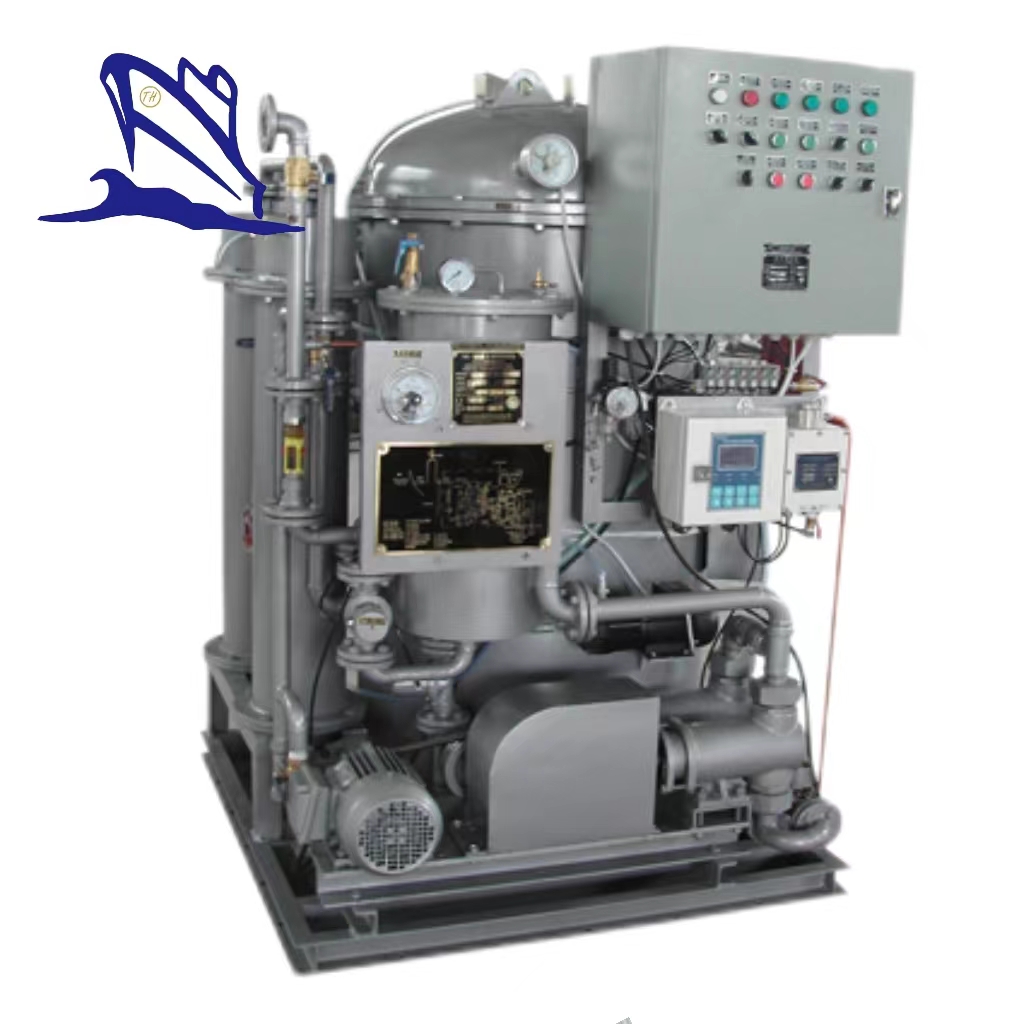

YWC-1.50 Automatic Oily Water Separator
1. Automatic Oily Water Separator Application:
This separator can be used to treat oily bilge water in order to make it reach the requirements of IMO.MEPC.107 (49) resolution, which is also called 15ppm bilge separator.It contains type approved 15ppm bilge water separator ,15ppm bilge alarm and Automatic shut down Device.
2. Automatic Oily Water Separator Principle:
The separator adopts the combination of 1st stage, cone plate gravity and coalesce separation; 2nd stage, fiber filter and 3rd stage, membrane permeation in order to make the treated bilge water to reach the requirements of discharge standard of the resolution of IMO MEPC.107 (49).
Automatic Oily Water Separator Main Parameters:
Model | YWC-1.5 | |
Technical Specifications | 1.5 | |
Rated capacity(m3/h) | 1.5 | |
Oil content of the discharged water | ≤15ppm | |
Power of the electric heater(kw) | 6kw | |
Electrical System | 380V/50Hz,/φ, 415V/50Hz/3φ, 440V/60Hz/3φ, 480V/60HZ/3φ, etc. | |
Power of the electric motor | 1.1kw | |
Suction head | ≤6m-H2O | |
Pressure of the discharged water | 5-10m-H2O | |
Outline Dimension(L*W*H)(mm) | 1100*1130*1650 | |
Base | 6# | |
Weight (kg) | Dry Weight | 1060 |
Wet Weight | 1650 | |
