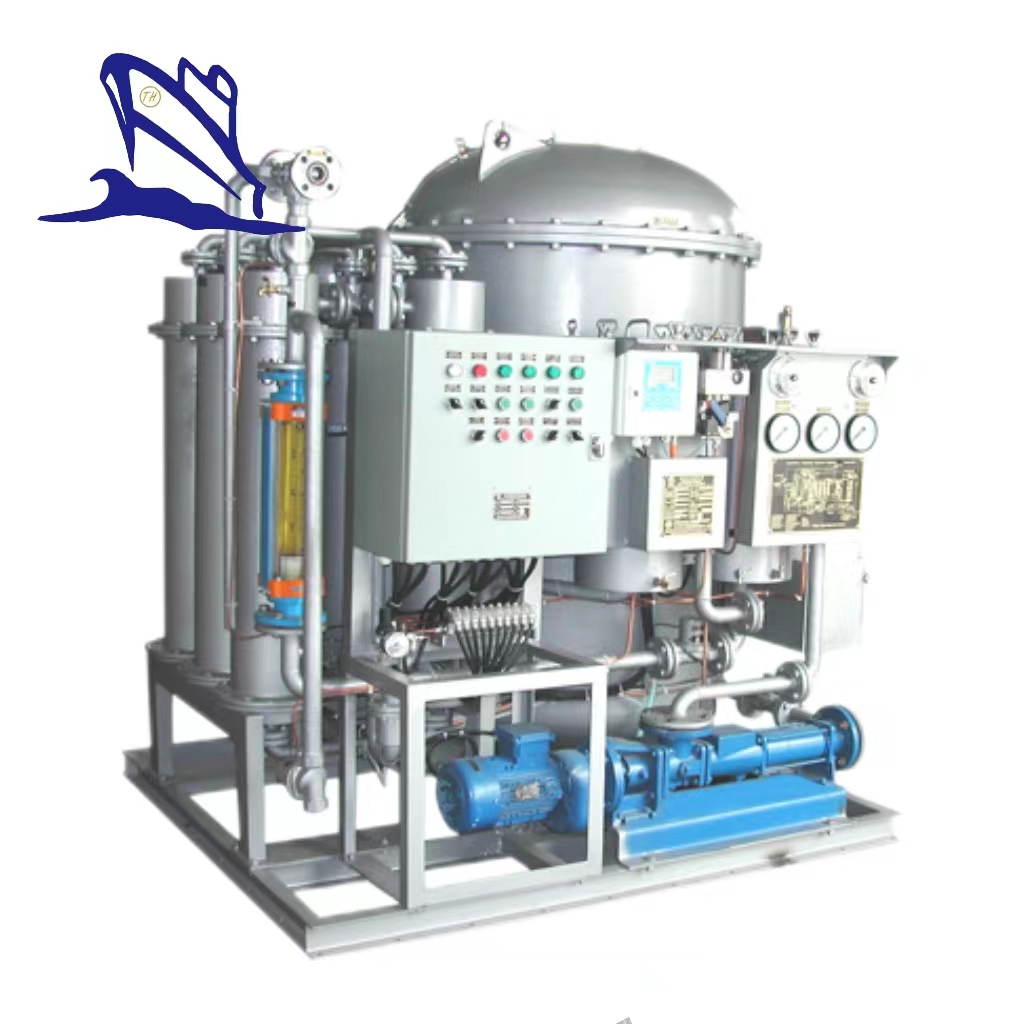

1.00m3/h Oily Ballast Water Separator
The Oily Ballast Water Separator adopts the combination of 1st stage, cone plate gravity and coalesce separation; 2nd stage, fiber filter and 3rd stage, membrane permeation in order to make the treated bilge water to reach the requirements of discharge standard of the resolution of IMO MEPC.107 (49).
1. Oily Ballast Water Separator Spare parts list:
NO. | Name | Quantity |
1 | Grease seal of feeding pump | 2 sets |
2 | The 2ndfilter core | 2 sets |
3 | O-Ring of the separator | 1 piece |
4 | O-Ring of the filter | 1 piece |
5 | O-Ring of the flange | 8pieces |
6 | Bilge level Probe | 1 pcs |
7 | Seawater initial Filter | 1 pcs |
2. Oily Ballast Water Separator Technical Parameters:
Model | YWC-1.0 | |
Technical Specifications | 1.0 | |
Rated capacity(m3/h) | 1.0 | |
Oil content of the discharged water | ≤15ppm | |
Power of the electric heater(kw) | 6kw | |
Electrical System | 380V/50Hz/3φ, 415V/50Hz/3φ, 440V/60Hz/3φ, 480V/60HZ/3φ | |
Power of the electric motor | 0.75kw | |
Suction head | ≤6m-H2O | |
Pressure of the discharged water | 5-10m-H2O | |
Outline Dimension(L*W*H)(mm) | 1050*1000*1620 | |
Base | 6# | |
Weight (kg) | Dry Weight | 800 |
Wet Weight | 1200 | |
