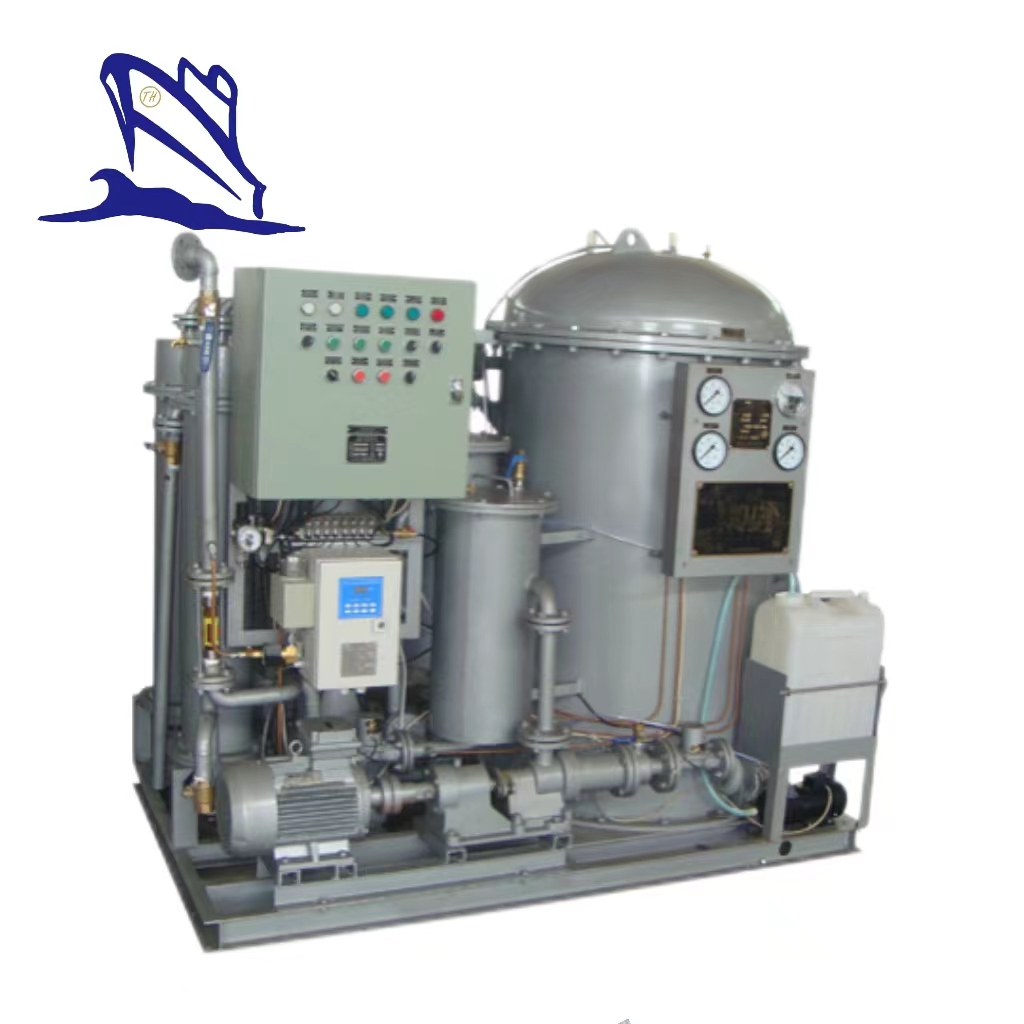

2.00m3/h Oil Water Separating Device
Capacity: 2.0m3/hr (30KDWT to 50KDWT vessel)
Certificate: CCS, EC, BV, GL, etc.
Application:
This oil water separating device an be used to treat oily bilge water in order to make it reach the requirements of IMO.MEPC.107 (49) resolution, which is also called 15ppm bilge separator.It contains type approved 15ppm bilge water separator ,15ppm bilge alarm andAutomatic shut down Device.
Principle:
The Oil Water Separating Device adopts the combination of 1ststage, cone plate gravity and coalesce separation; 2ndstage, fiber filter and 3rdstage, membrane permeation in order to make the treated bilge water to reach the requirements of discharge standard of the resolution of IMO MEPC.107 (49).
Main Parameters:
Model | YWC-2.00 | |
Technical Specifications | 2.0 | |
Rated capacity(m3/h) | 2.0 | |
Oil content of the discharged water | ≤15ppm | |
Power of the electric heater(kw) | 6kw | |
Electrical System | 380V/50Hz/3φ, 415V/50Hz/3φ, 440V/60Hz/3φ, 480V/60HZ/3φ | |
Power of the electric motor | 1.1kw | |
Suction head | ≤6m-H2O | |
Pressure of the discharged water | 5-10m-H2O | |
Outline Dimension(L*W*H)(mm) | 1900*1120*1700 | |
Base | 8# | |
Weight (kg) | Dry Weight | 1260 |
Wet Weight | 2260 | |
