MARINE WINDLASS

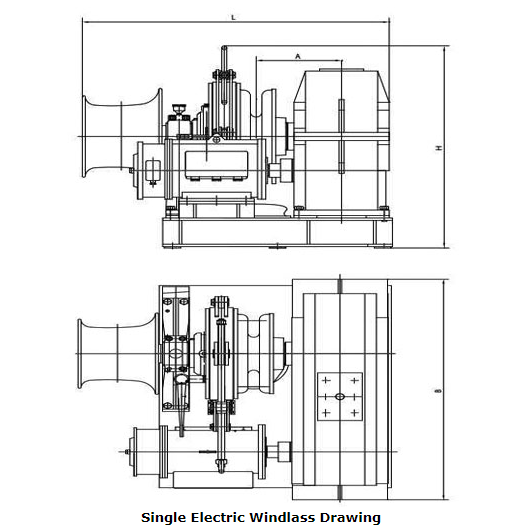

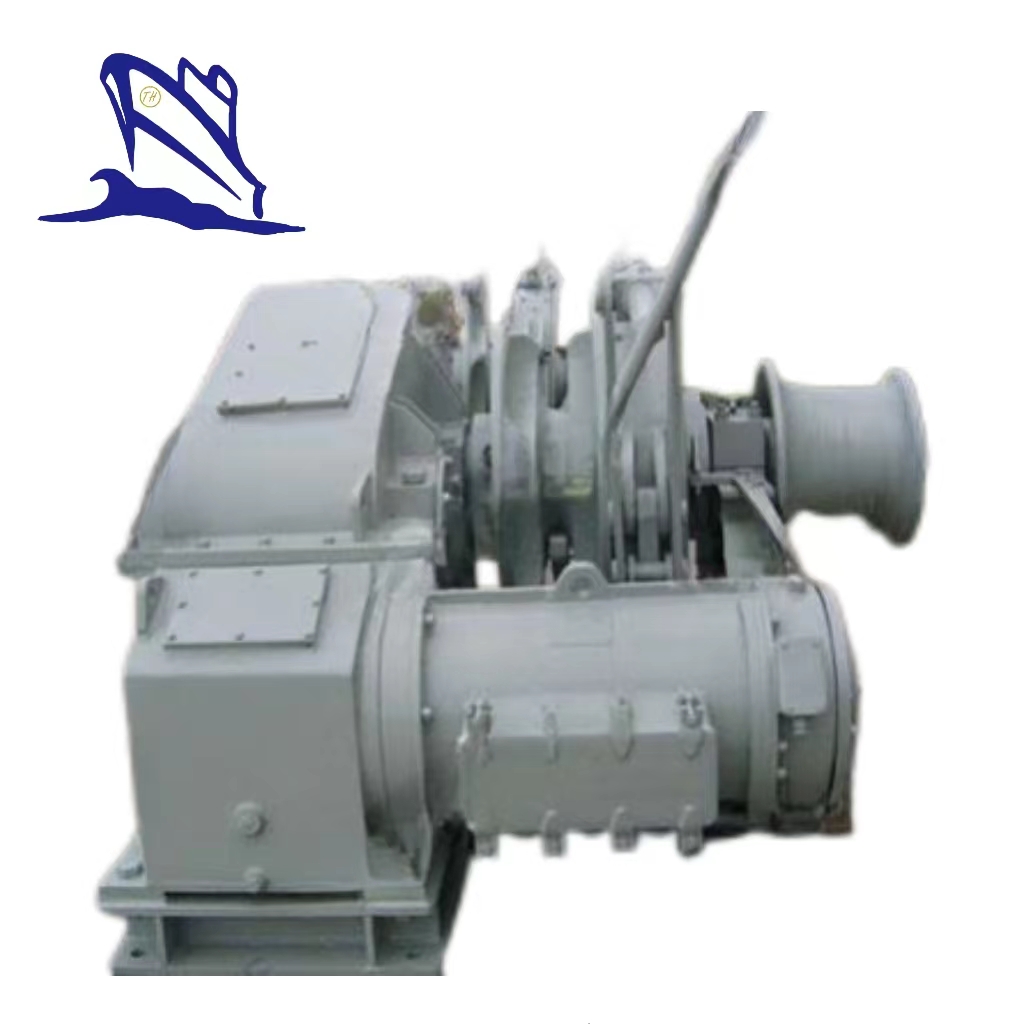

Single Electric Windlass

Windlass is installed in the ship's stern main deck used for ship setting sailing and anchor mooring.

We supply various types of marine windlass such as symmetrical electric windlass, single electric windlass, symmetrical el-combined windlass mooring winch,single el-combined windlass mooring winch; symmetrical hydraulic windlass,single hydraulic windlass, symmetrical hy-combined windlass mooring winch, single hy-combined windlass mooring winch etc..

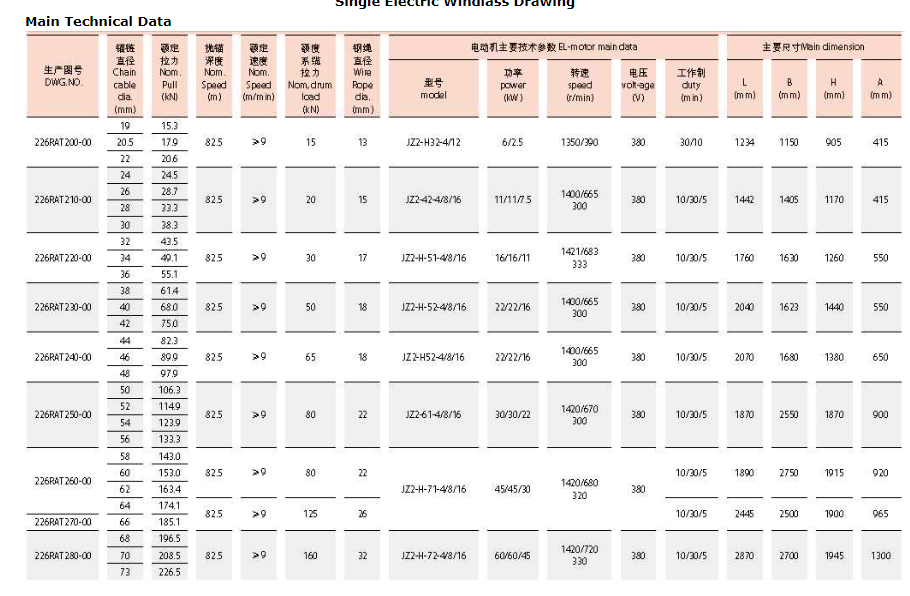

Main Specifications

1. Chain Cable Diameter: 19mm to 73mm

2. Nominal Pull: 15.3kN to 226.5kN

3. Anchor Depth: 82.5m

4. Nominal Speed: ≥9m/min

5. Nominal Drum Load: 15kN to 160kN

6. Wire Rope Diameter: 13mm to 32mm
