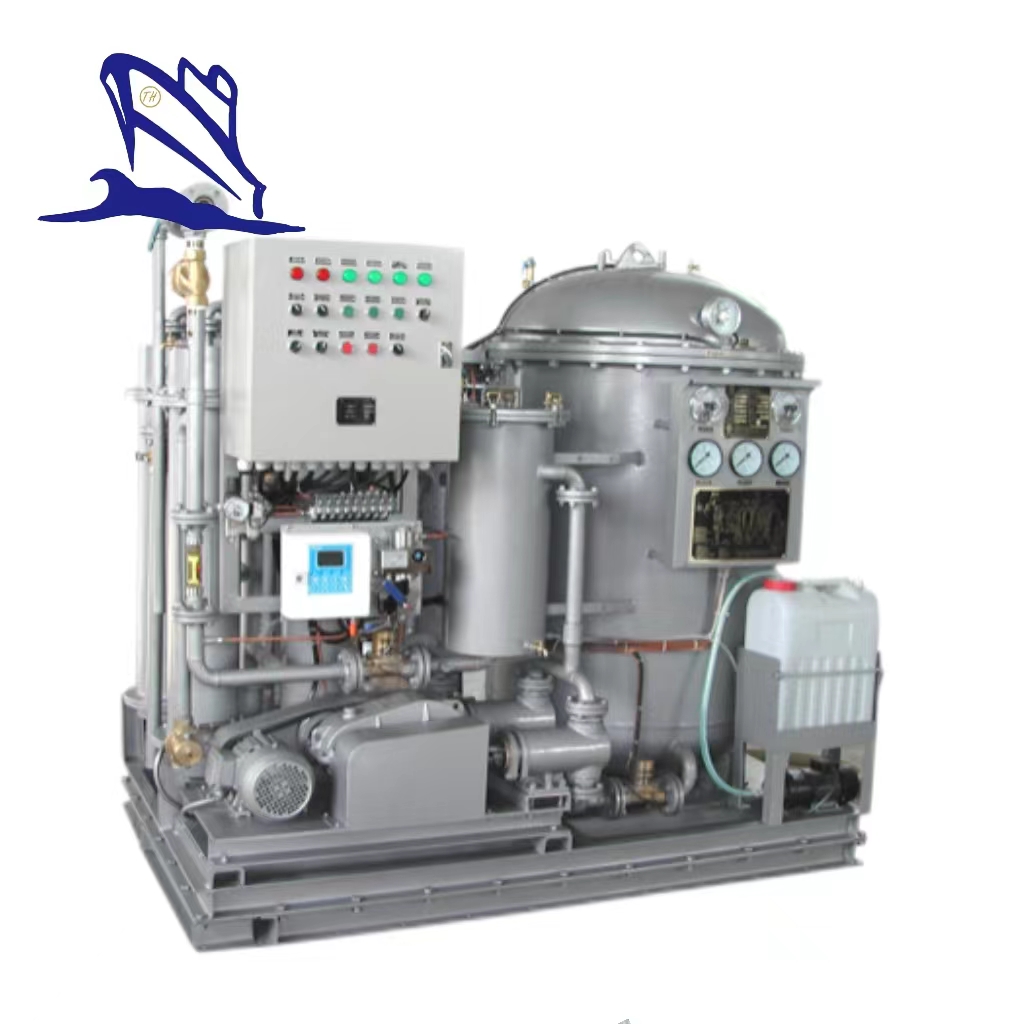

YWC-2.50 Oil Water Separating Treater
This Oil Water Separating Treater, which is suit for 50KDWT to 100KDWT vessel, the rate capacity is 2.5m3/hr.
Explosion proof type is also available, used for oil platform.
Produce standard: IMO.MEPC.107 (49)
1. Oil Water Separating Treater Principle:
The plant adopts the combination of 1ststage, cone plate gravity and coalesce separation; 2ndstage, fiber filter and 3rdstage, membrane permeation in order to make the treated bilge water to reach the requirements of discharge standard of the resolution of IMO MEPC.107 (49).
2. Oil Water Separating Treater Technical Parameters:
Model | YWC-2.50 | |
Technical Specifications | 2.5 | |
Rated capacity(m3/h) | 2.5 | |
Oil content of the discharged water | ≤15ppm | |
Power of the electric heater(kw) | 6kw | |
Electrical System | 380V/50Hz/3φ, 415V/50Hz/3φ, 440V/60Hz/3φ, 480V/60HZ/3φ | |
Power of the electric motor | 1.5kw | |
Suction head | ≤6m-H2O | |
Pressure of the discharged water | 5-10m-H2O | |
Outline Dimension(L*W*H)(mm) | 1900*1120*1900 | |
Base | 8# | |
Weight (kg) | Dry Weight | 1500 |
Wet Weight | 2800 | |
