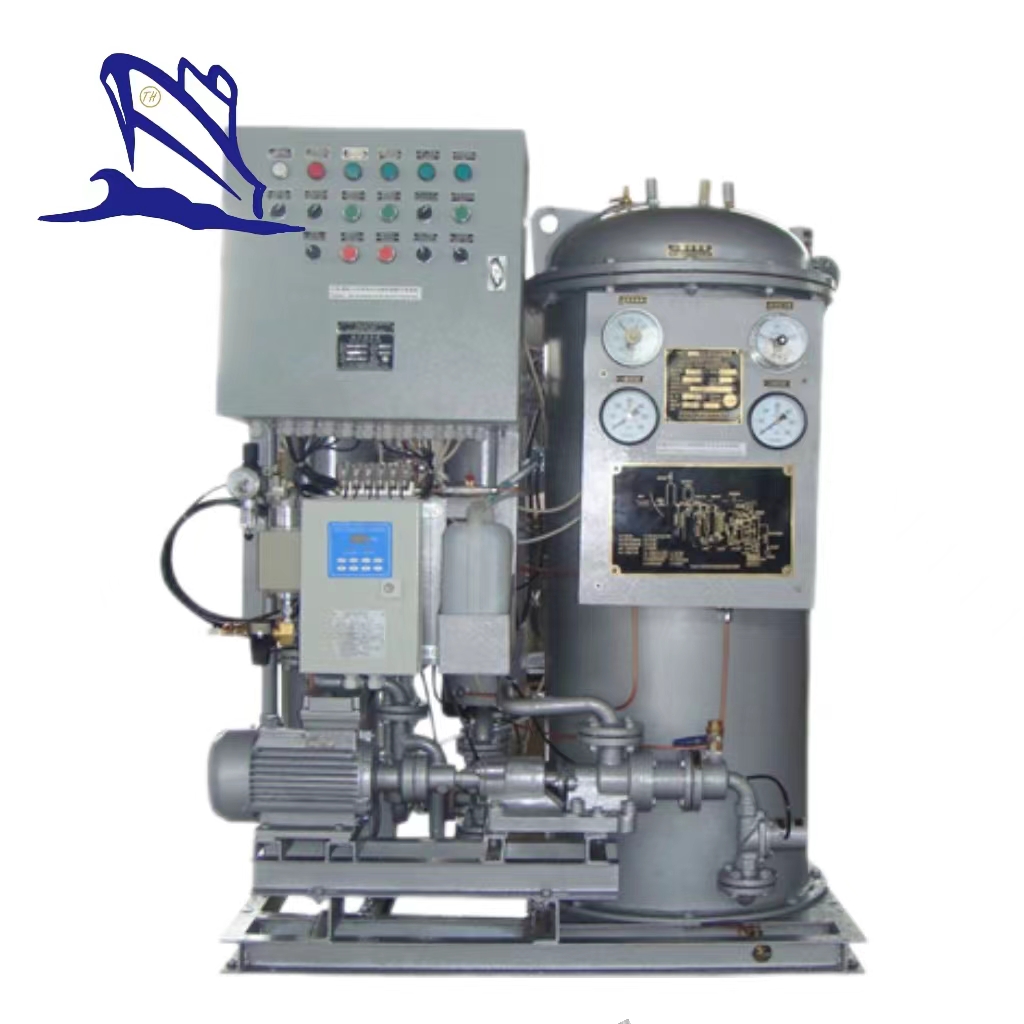

YWC-0.50 Oily Water Separator
1. Oily Water Separator Specification:
Type: YWC-0.50
Rated capacity: 0.50 m3/h
Effluent oil content≤15PPm
Electric power:415V/ 50Hz /3Φ (Optional)
Motor power:0.55 kw
Method of heating: Electric heating
Outline Dimension: L×B×H=1100×690×1460 mm
Discharge pressure: 0.05-0.1Mpa
Protection grade: Electric Motor IP 44
Electric control box IP 44
Electric cable: For marine use
Outer joint flange standard: GIS standard
Surface color of the equipment: dark grey
Nameplate :Stainless steel, white characters on black background
Applicable Vessel: 1,000-5,000DWT
2. A whole set ofYWC-0.50Type oil waterseparator and each contains the following parts:
No. | Name | Model | Quantity |
1 | 1st Stage Coalescer | 322DF-1-01 | 1 set |
2 | 2ndStage Filter | 322DF-1-02 | 2sets |
3 | 3rdStage Membrane | 322DF-1-03 | 4sets |
4 | Electric Box | 322DF-1-00SY | 1 set |
5 | 15ppm bilge alarm | 1 set | |
6 | Marine motor | 1 set | |
7 | pump | 1 set | |
8 | Pneumatic Valve | 7 sets | |
9 | Flow meter | 1 set | |
10 | Dosing Pump | 1 set | |
11 | Safety valve | 1 set | |
12 | Pressure Meter | 3 sets | |
13 | Thermometer | 1 set | |
14 | Pressure Meter | 1 set | |
15 | Relative Pipe System | 1 set | |
16 | Trouble alarm delay | 1 set |
3. Oily Water Separator Spare Parts:
No. | Name | Model | Quantity | Note |
1 | Spare parts of the pump | 1 set | ||
2 | The 2ndfilter core | 322DF-1-02 | 1 sets | |
3 | O-Ring of the 1stcoalescer | DFY-1001 | 1 piece | |
4 | O-Ring of the 2ndfilter | DFY-1002 | 1 piece | |
5 | O-Ring of the flange | DFY-1003 | 8 piece | |
6 | The seawater filter | 1 piece |
