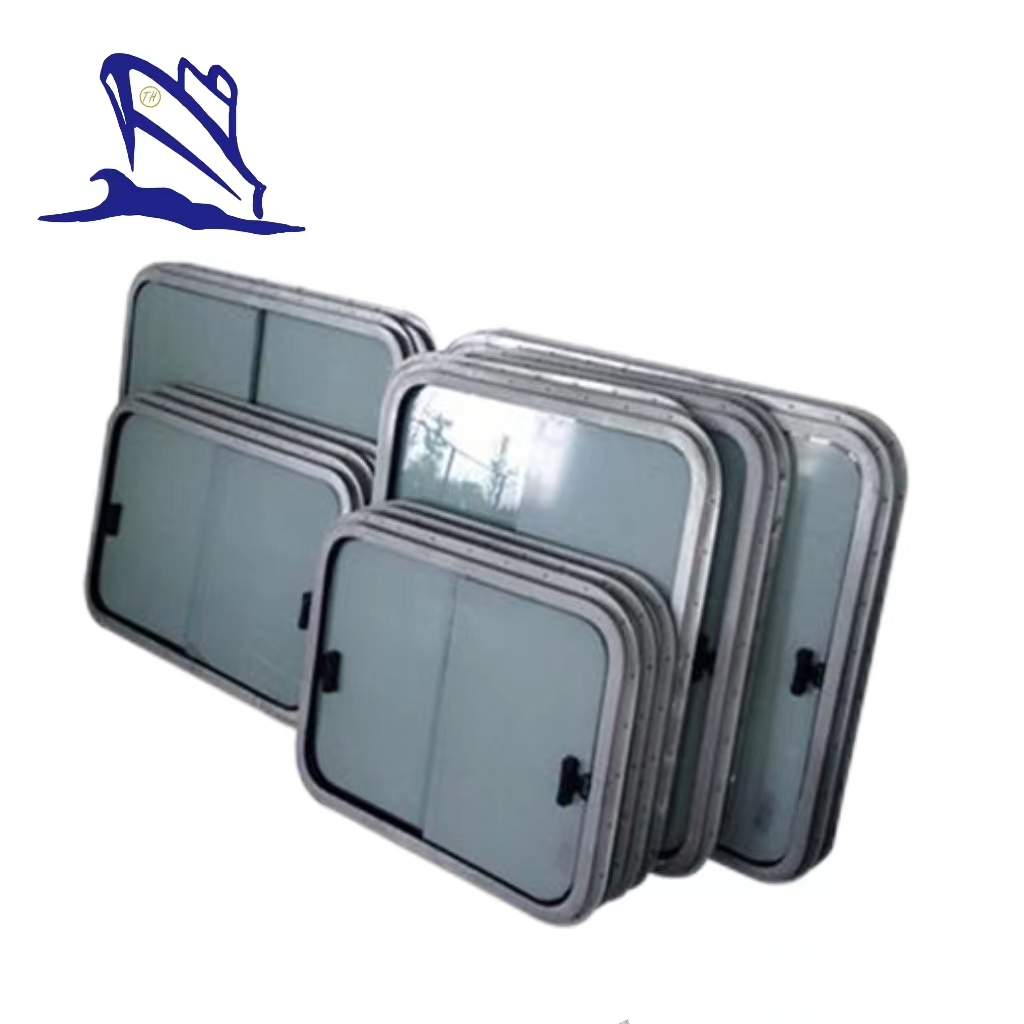

Light Aluminum Marine Sliding Window
Light Aluminum Marine Sliding Window
Approved by CB/T3765-96, this product is kind of sliding windows. It is made of aluminum and used for deck house above freeboard deck and superstructure of various kinds of vessels. We can supply two types of this sliding window: square angle window and round angle window; and the sizes are customized. Besides, CCS, BV, ABS, DNV, NK, LR, KR and RINA certificates can be provided.

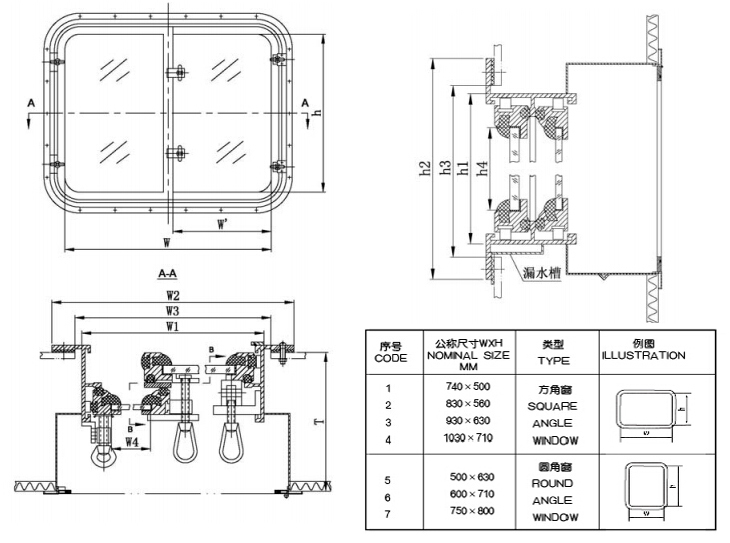

Drawing of Light Aluminum Marine Sliding Window
Nominal size | Size of clear | Size of frame | Size of opening | Size of glass | Bolt QUT | Max. kpa | Weight | ||||
w×h | w’×h×r | w1×h1×r1 | w2×h2×r2 | w3×h3×r3 | thickness | w4×h4×r4 | t=8 | t=6 | t=8 | t=6 | |
740×500 | 355×500×50 | 825×588×94 | 890×650×125 | 840×600×100 | 6, 8 | 373×518×58 | 20 | 45 | 26 | 20.0 | 18.9 |
830×560 | 400×560×50 | 918×648×94 | 980×710×125 | 930×660×100 | 418×578×58 | 24 | 36 | 21 | 21.9 | 20.7 | |
930×630 | 450×630×100 | 1018×718×144 | 1080×780×175 | 1030×730×150 | 468×648×108 | 26 | 28 | 16 | 24.8 | 23.3 | |
1030×710 | 500×710×100 | 1118×798×144 | 1180×860×170 | 1130×810×150 | 518×728×108 | 30 | 23 | 13 | 28.0 | 26.1 | |
500×630 | 235×630×50 | 588×718×94 | 650×780×125 | 600×730×100 | 253×648×58 | 18 | 66 | 37 | 18.6 | 17.8 | |
600×710 | 285×710×50 | 688×798×94 | 750×860×125 | 700×810×100 | 303×728×58 | 22 | 46 | 26 | 21.5 | 20.4 | |
750×800 | 360×800×50 | 838×888×94 | 900×950×125 | 850×900×100 | 378×818×58 | 46 | 30 | 18 | 25.6 | 24.0 | |
