MARINE AIR CONDITIONING

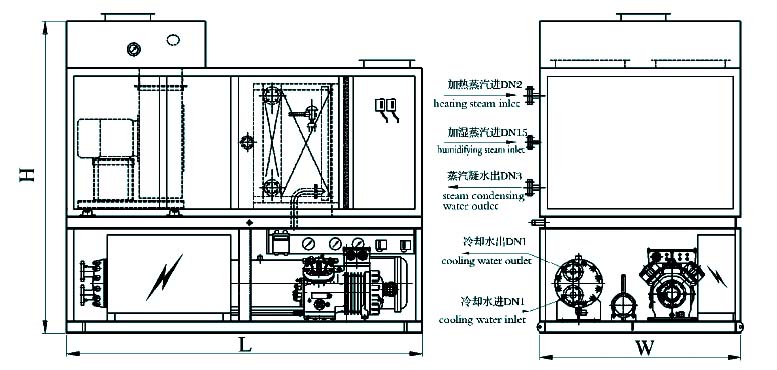

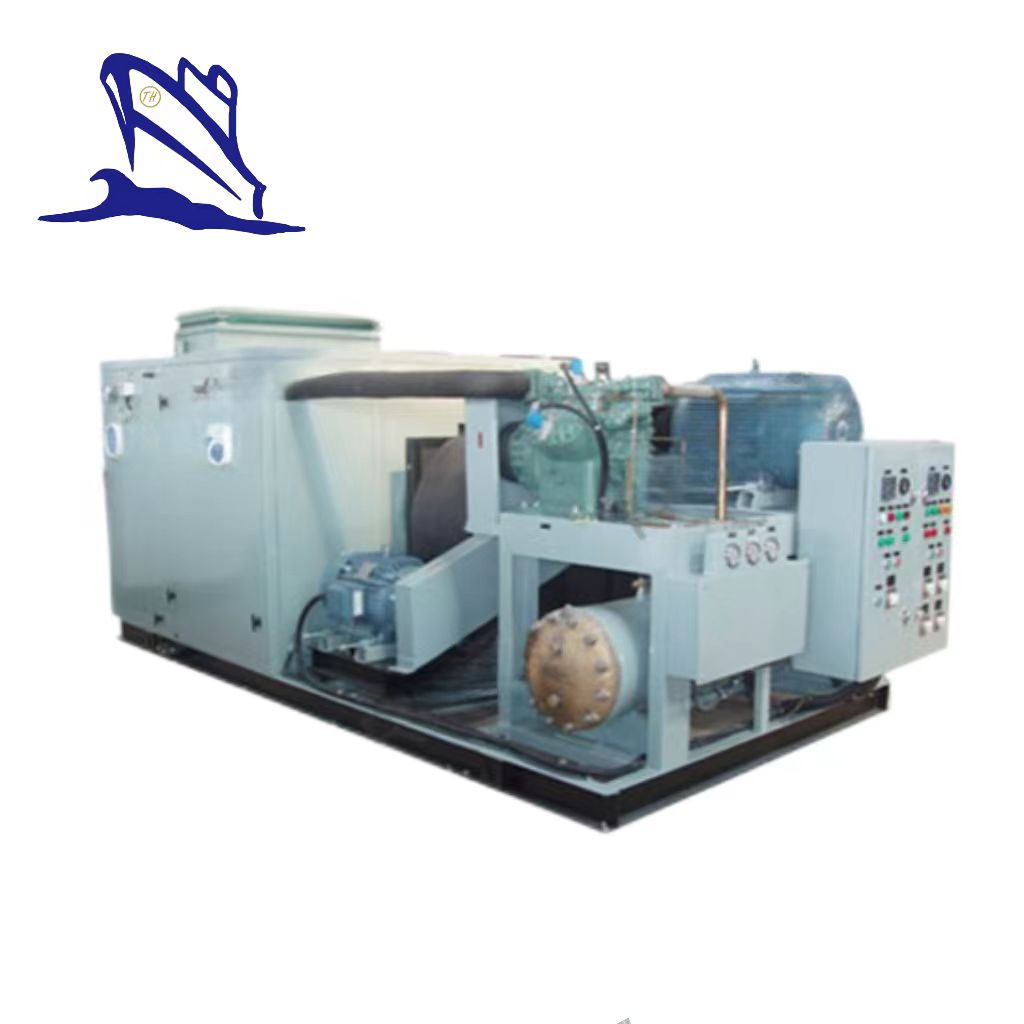

CJKR marine air conditoning plant

marine air conditoning plant is the key equipment which can deal with the temperature and humidity of air directly.The plant has feature of new design, ,easy operation,stable working,safety and conveninent maintaining etc.They are widely applied for all kinds of passenger ships,cargo ships and oil platforms etc.

Feature:

Cooling capacity:23KW-302KW,Heating capacity:35KW-302KW

Design terms of cooling mode:outside temp 35℃，relative humidity 70%,inside temp 27℃，relative humidity 50%

Design terms of heating mode:outside temp -20℃，relative humidity 50%,inside temp 20℃，relative humidity 40%
Mainly composed of compressor,condenser,drier evaporator and themal expansion valve

Choosing name brand refrigeration compressor

Main control are imported famous brand

Condenser is HAL77-2 or Bfe10-1-1 or Fe30-1-1 high effieient heat transfering pipe,which can protect ship swinging from flow stop

Pressure test,vacuum test and running test have been done defore delivery

Ready for operation only when connected with water pipe and power source

Design,manufacture and inspection comply with CCS and navy standards

Special design and manufacture can be done upon use’s requirement
