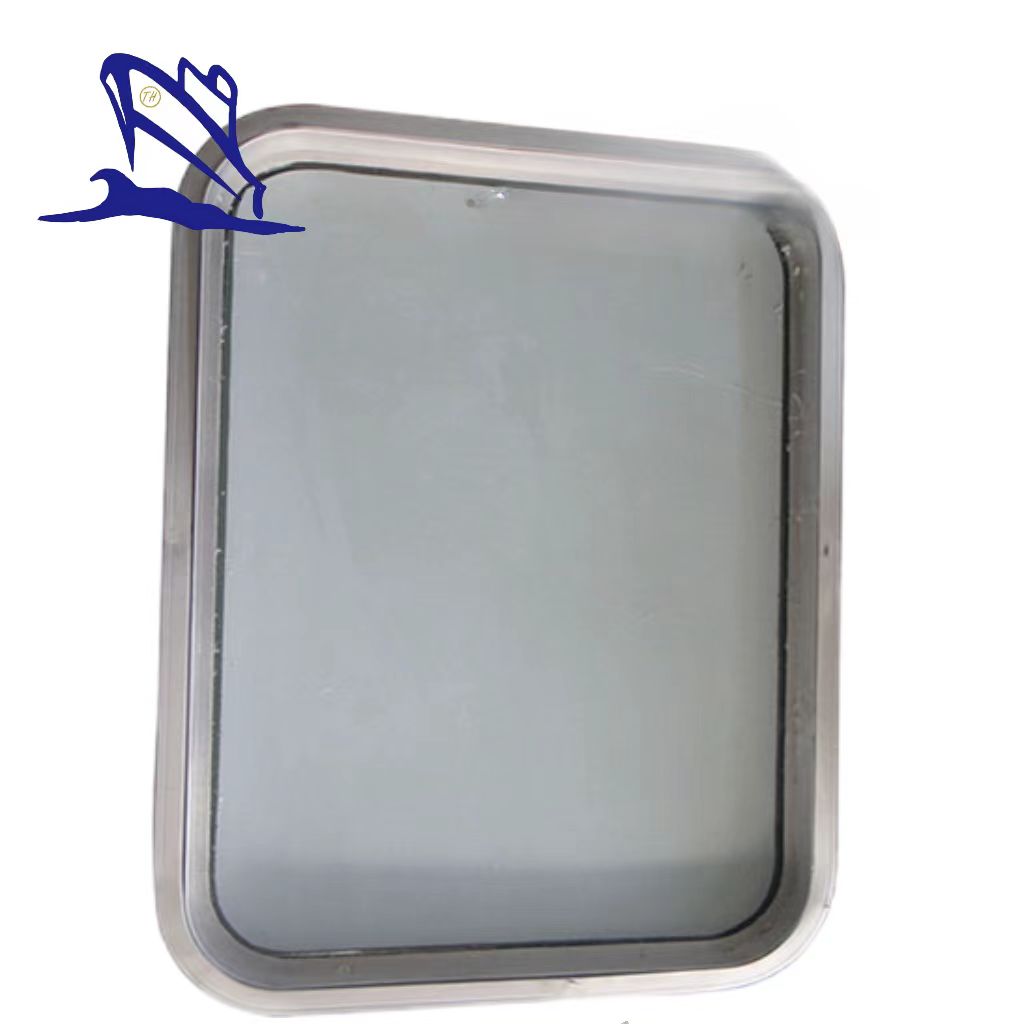

Marine Fire Resistant Service Window

Made with steel pr aluminum, this product is a kind of fire resistant service windows for ship. It is applied to the galleys, pantries and canteens. We can supply two type of this fire resistant window: type A-plate structure sliding window, type B-blade sliding window. This marine fire resistance service window is approved by the CB*3228-87 standard and I meets all the requirements of these certificates: CCS, DNV, BV, LR, KR, NK etc.

Drawing and specifications:

Drawing of Marine Fire Resistant Service Window

Type

Size of clear

Size of opening

Size of frame

Slide-way

Width of frame

Weight(kg)

A B

W×h

W2×h2

W1×h1

W3×h3

W4×h4

W5

b

b1

steel

aluminum

A, B

A, B

A, B

A, B

A, B

A, B

A, B

A

B

A

B

630×500

696×566

690×560

720×590

750×620

1350

180

120

31.8

26.9

16.2

12.7

900×630

966×696

960×690

990×720

1020×750

1890

45.7

38.2

23.1

17.7

1100×800

1167×867

1160×860

1190×890

1220×920

2290

220

160

62.6

52.0

31.8

23.7

1400×1100

1467×1067

1460×1060

1490×1090

1520×1120

2890

86.8

69.3

44.5

31.0

1800×1100

1868×1168

1860×1160

1890×1190

1920×1120

3690

260

300

115.2

91.9

59.2

40.6

2300×1200

2368×1268

2360×1260

2390×1290

2420×1320

4690

118.8

116.5

76.5

51.0
