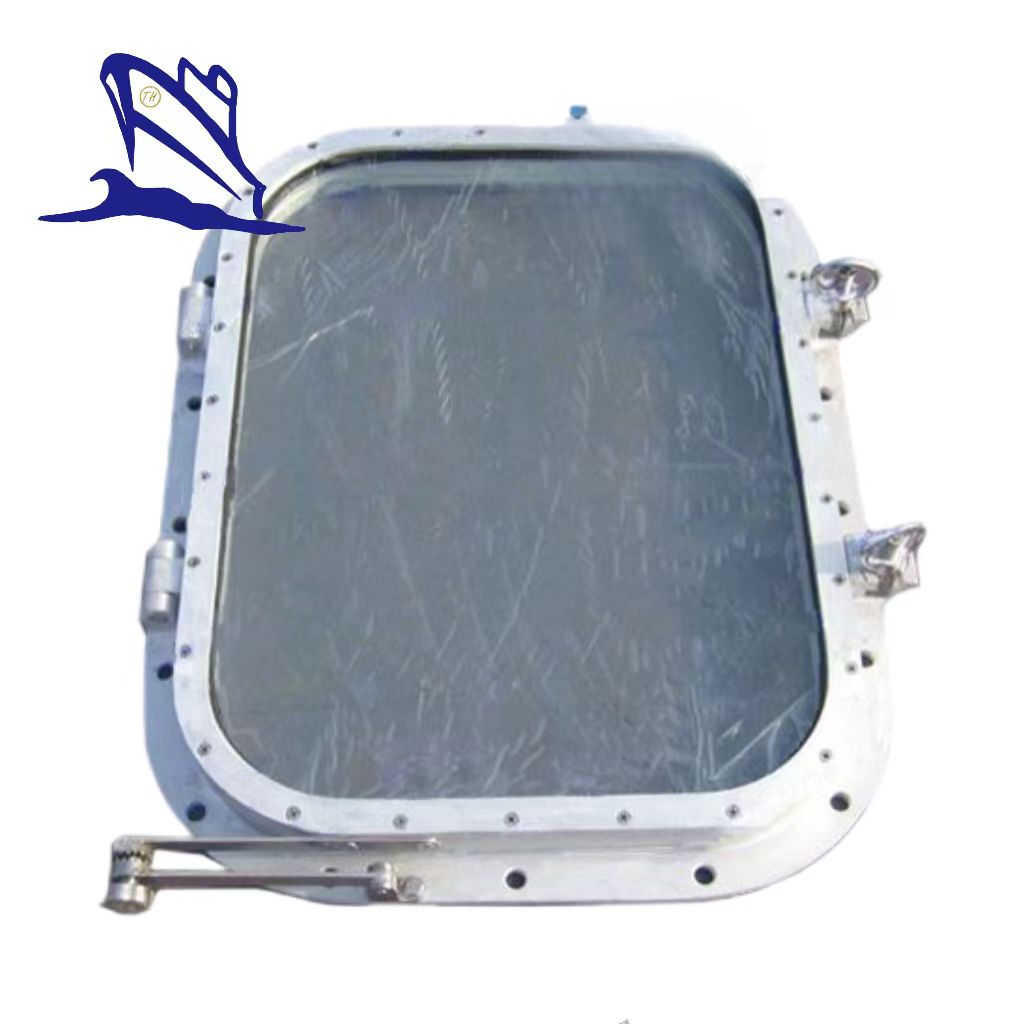

Marine A0 Fireproof Rectangular Window
Marine A0 Fireproof Rectangular Window
This product can be made with aluminum or steel. It is a fire proof rectangular window which can be opened. With high quality, it meets a variety of quality certification like CCS, DNV, BV, LR, KR, NK, etc. It is used for oil tanker, drilling platform, chemical vessel and oil area tug which has a less than 60℃ flash point. If needed, we can offer heating glass.
Drawing and specifications:
Drawing of Marine A0 Fireproof Rectangular Window
mm
No | Nominal size W×H | Size of opening W1×H1×R1 | External size W2×H2 | Glass thickness | Size of glass W3×H3×R3 | |
Heavy type | Medium type | |||||
1 | 300×425 | 352×477×R76 | 348×473 | 15 | 15 | 318×443×R59 |
2 | 355×500 | 407×552×R76 | 403×548 | 15 | 15 | 373×518×R59 |
3 | 400×560 | 452×612×R76 | 448×608 | 15 | 15 | 418×578×R59 |
4 | 450×630 | 502×682×R126 | 498×678 | 15 | 15 | 468×648×R109 |
5 | 500×700 | 522×762×R126 | 548×758 | 15 | 15 | 518×728×R109 |
6 | 560×800 | 612×852×R126 | 608×848 | 15 | 15 | 578×818×R109 |
