A60 Fireproof Side Scuttle

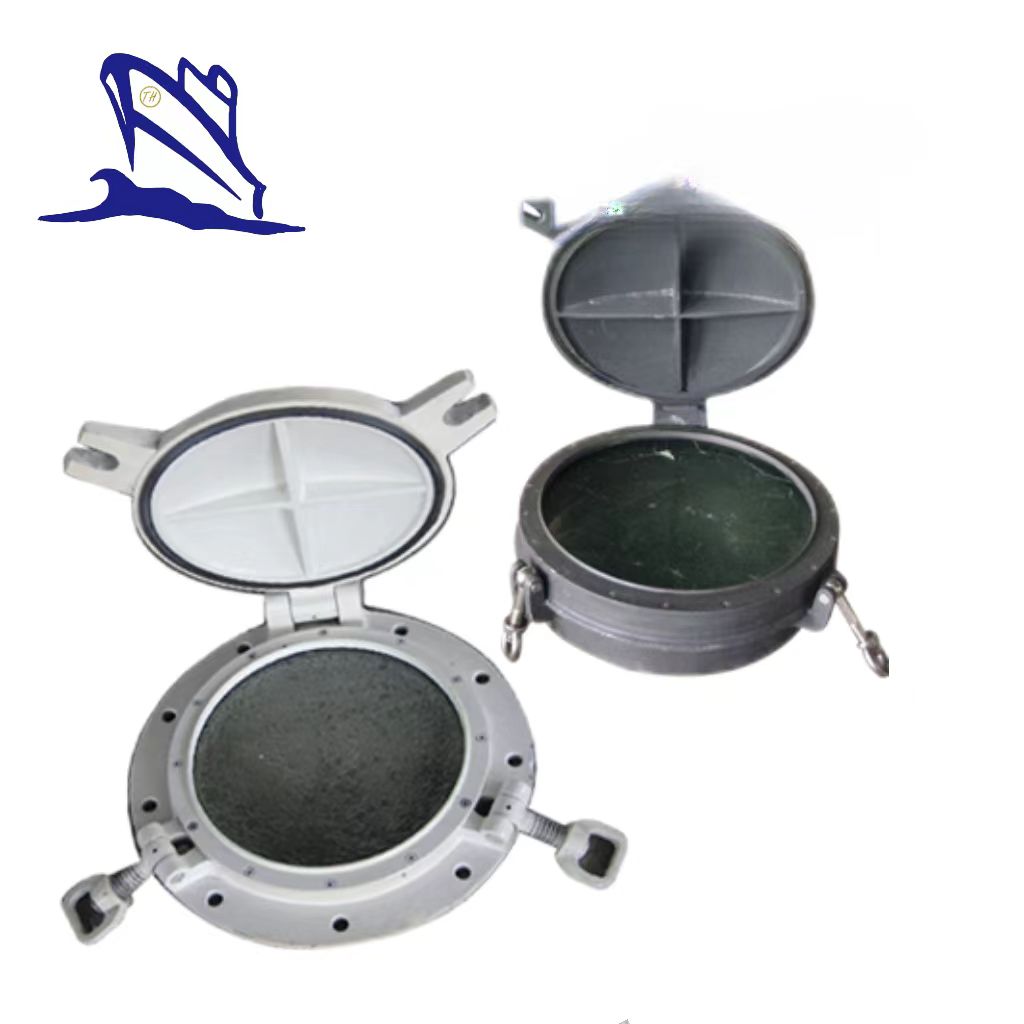

A60 Fireproof Side Scuttle
This product is a kind of fire resistant side scuttles made with steel, aluminum, stainless steel. It can be installed by welded or bolted. This fire proof side scuttle is applicable for accommodations with required fire rating A60. We can offer relevant certificates about this side scuttle like CCS, ABS, DNV, GL etc.

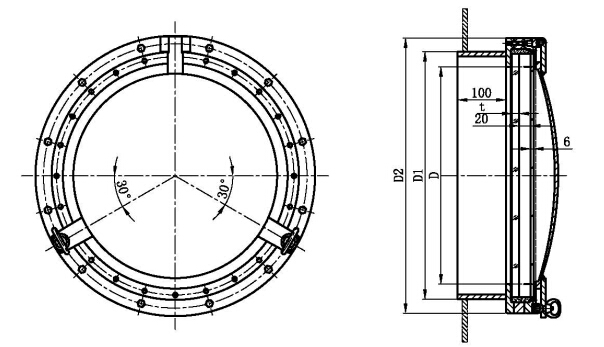

Drawing of A60 Fireproof Side Scuttle
mm
Nominal size | Opening size of bulkhead | External size | Glass thickness | Weight (kg) | |
Type A | Type B | ||||
200 | 253 | 330 | 10 | 8 | 22.1 |
250 | 303 | 380 | 12 | 8 | 29.1 |
300 | 363 | 430 | 15 | 10 | 35.2 |
350 | 413 | 480 | 15 | 12 | 45.8 |
400 | 463 | 530 | 19 | 12 | 55.2 |
450 | 513 | 580 | 19 | 15 | 72.2 |
