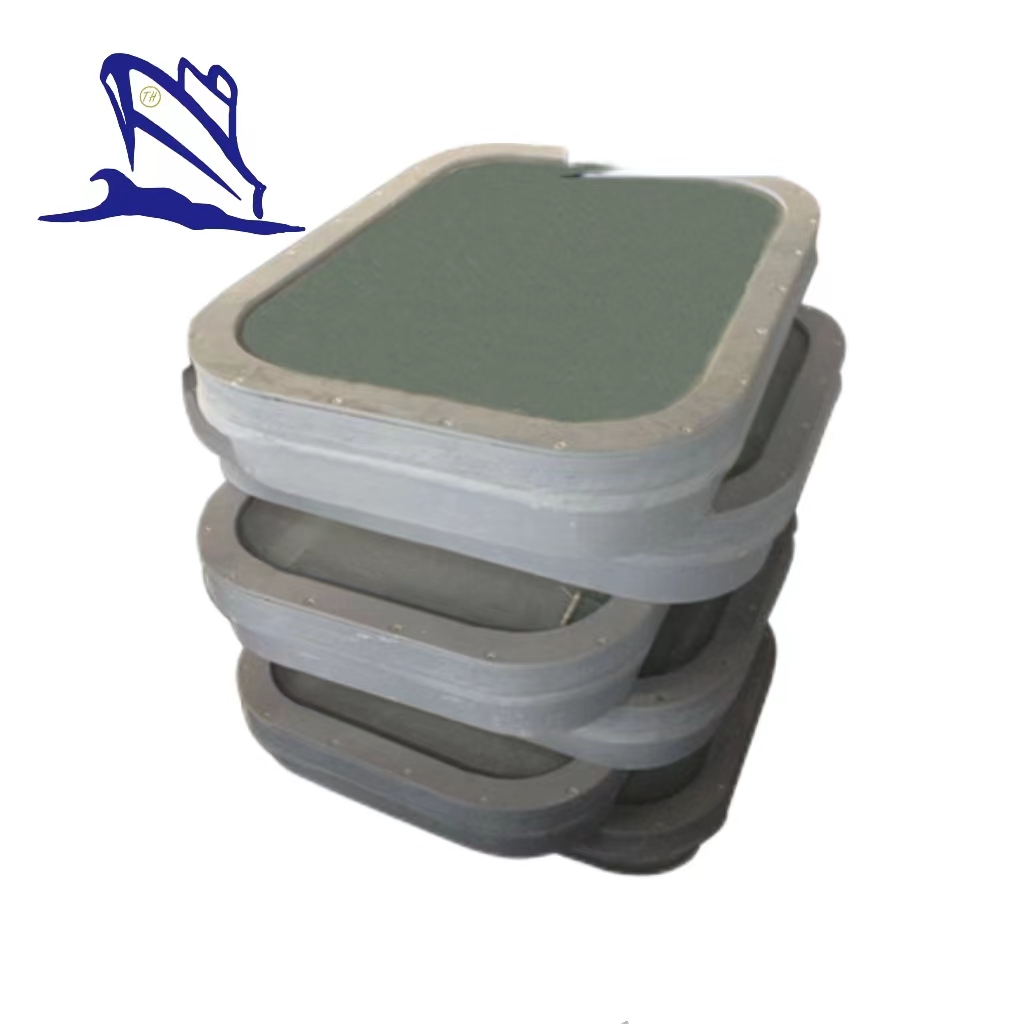

Marine Class A60 Welded Fireproof Rectangular Window




Marine Class A60 Welded Fireproof Rectangular Window

Made with aluminum or steel, this fire proof widow is applicable for accommodations with required fire rating A60. Certificates about this fire proof rectangular window are CCS, DNV, BV, LR, KR, and NK. To meet customers’ different requirements, we can offer OEM service.

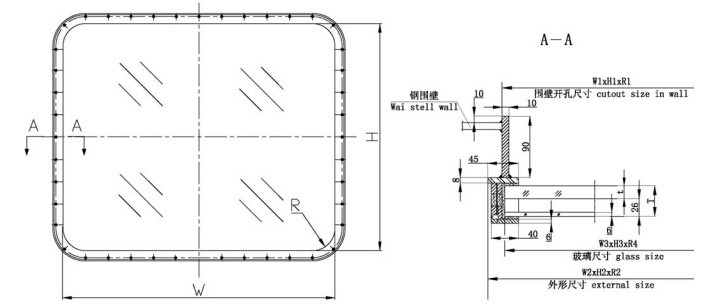

Drawing of Class A60 Welded Fireproof Rectangular Window

mm

Nominal size

W×H×R

Size of opening

W1×H1×R1

External size

W2×h2×R2

Glass size

W3×H3×R3

Glass thickness

E(t)+20+6=T

F(t)+20+6=T

300×425

R50

352×477

R76

440×565

R120

340×465

R70

(8)+20+6=34

(10)+20+6=36

355×500

407×552

495×640

395×540

(8)+20+6=34

(10)+20+6=36

400×560

452×612

540×700

440×600

(8)+20+6=34

(12)+20+6=38

450×630

R100

502×682

R126

590×770

R170

490×670

R120

(8)+20+6=34

(12)+20+6=38

500×710

552×762

640×850

540×750

(10)+20+6=36

(15)+20+6=41

560×800

612×852

700×940

600×840

(10)+20+6=36

(15)+20+6=41

900×630

952×682

1040×770

940×670

(12)+20+6=38

(19)+20+6=45

1000×710

1052×762

1140×850

1040×750

(12)+20+6=38

(19)+20+6=45

1100×800

1152×852

1240×940

1140×840

(15)+20+6=41

(19)+20+6=45

1200×800

1252×852

1340×940

1240×840

(15)+20+6=41

(19)+20+6=45

1600×800

1652×852

1740×940

1640×840

(15)+20+6=41

(19)+20+6=45
