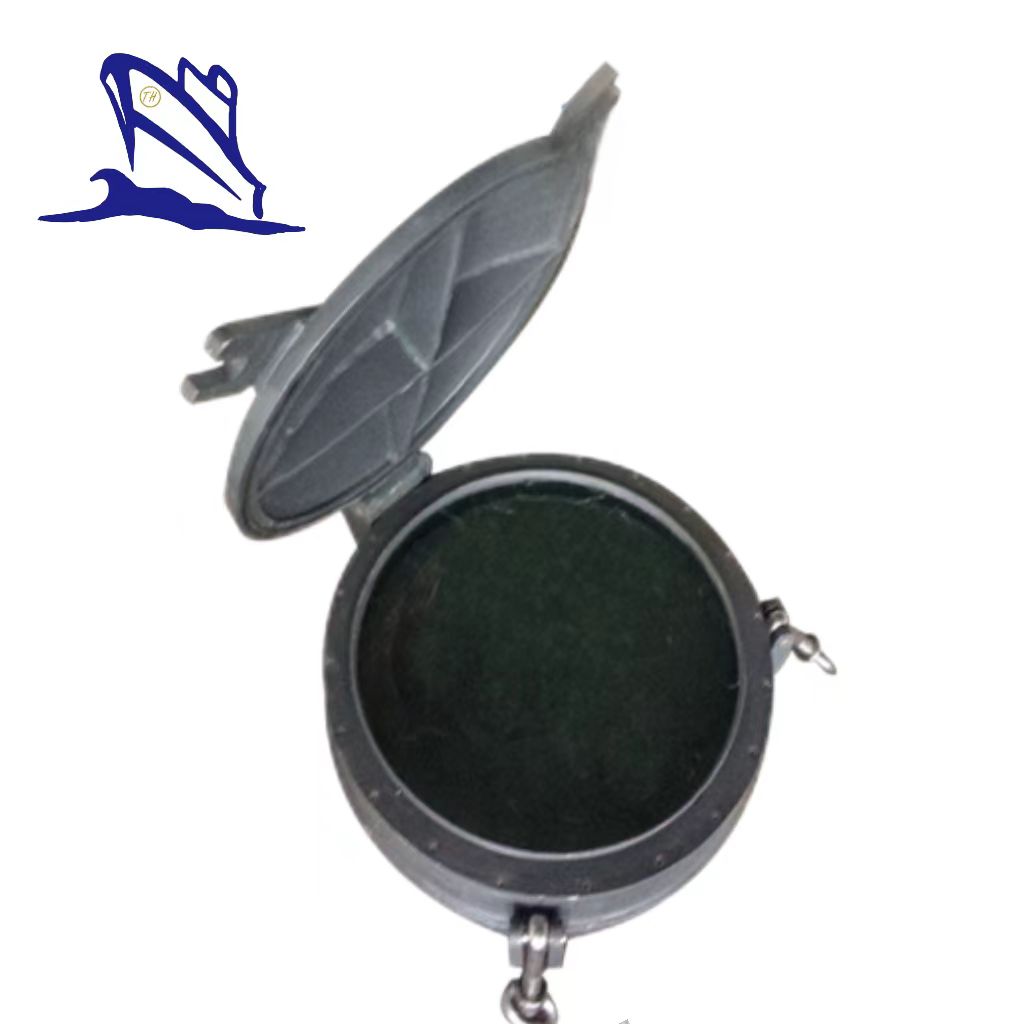

A60 Welded Fireproof Side Scuttle
A60 Welded Fireproof Side Scuttle
This product is a kind of welded fire resistant side scuttles made with steel, aluminum, stainless steel. This welded fire proof side scuttle is applicable for accommodations with required fire rating A60. Our company promise to provide marine fireproof side scuttles with the best quality. We can offer relevant certificates about this side scuttle like CCS, ABS, DNV, GL etc.

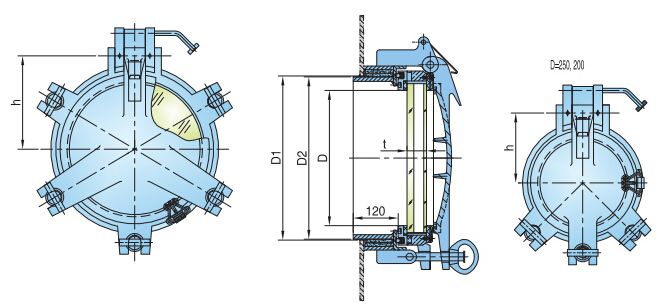

Drawing of A60 Welded Fireproof Side Scuttle
mm
Nominal size D | Size of B. H. opening D1 | External size D2 | Glass thickness | |
Heavy | Medium | |||
200 | 253 | 250 | 15+22A+6 | 15+22A+6 |
250 | 308 | 305 | 15+22A+6 | 15+22A+6 |
300 | 363 | 360 | 15+22A+6 | 15+22A+6 |
350 | 413 | 410 | 15+22A+6 | 15+22A+6 |
400 | 463 | 460 | 19+22A+6 | 15+22A+6 |
450 | 513 | 510 | 19+22A+6 | 15+22A+6 |
