MARINE WINDLASS

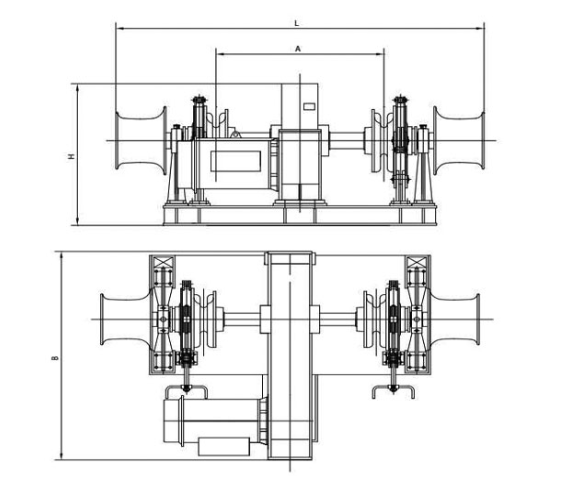

Symmetrical Electric Windlass

Our symmetrical electric windlass has the advantages of compact and reasonable structure, large carrying capacity, good performance, safety and reliability, simple operation and long service life and so on.

We can customize the windlass according to your drawing and requirements.

Some of our products are approved by CCS, ABS, NK, BV, GL, KR, LRS etc..

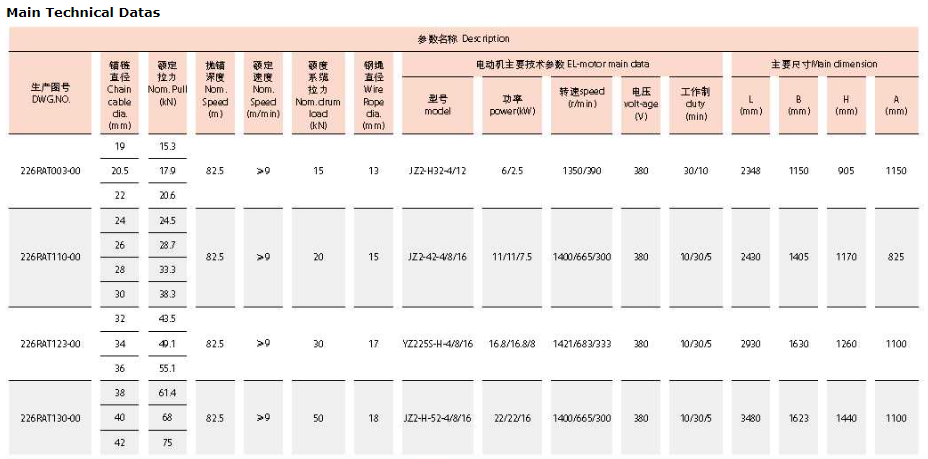

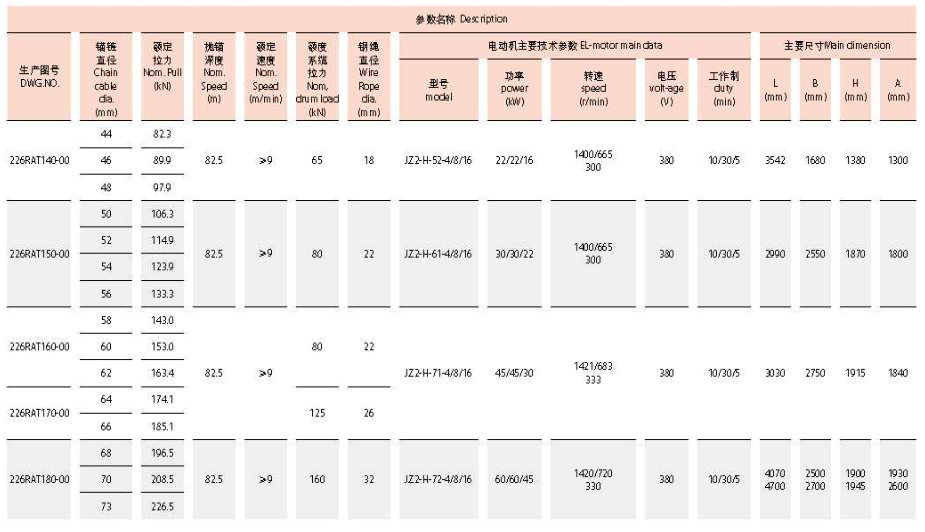

Main Specifications

1. Chain Cable Diameter: 19mm to 73mm

2. Nominal Pull: 15.3kN to 226.5kN

3. Anchor Depth: 82.5m

4. Nominal Speed: ≥9m/min

5. Nominal Drum Load: 15kN to 160kN

6. Wire Rope Diameter: 13mm to 32mm
