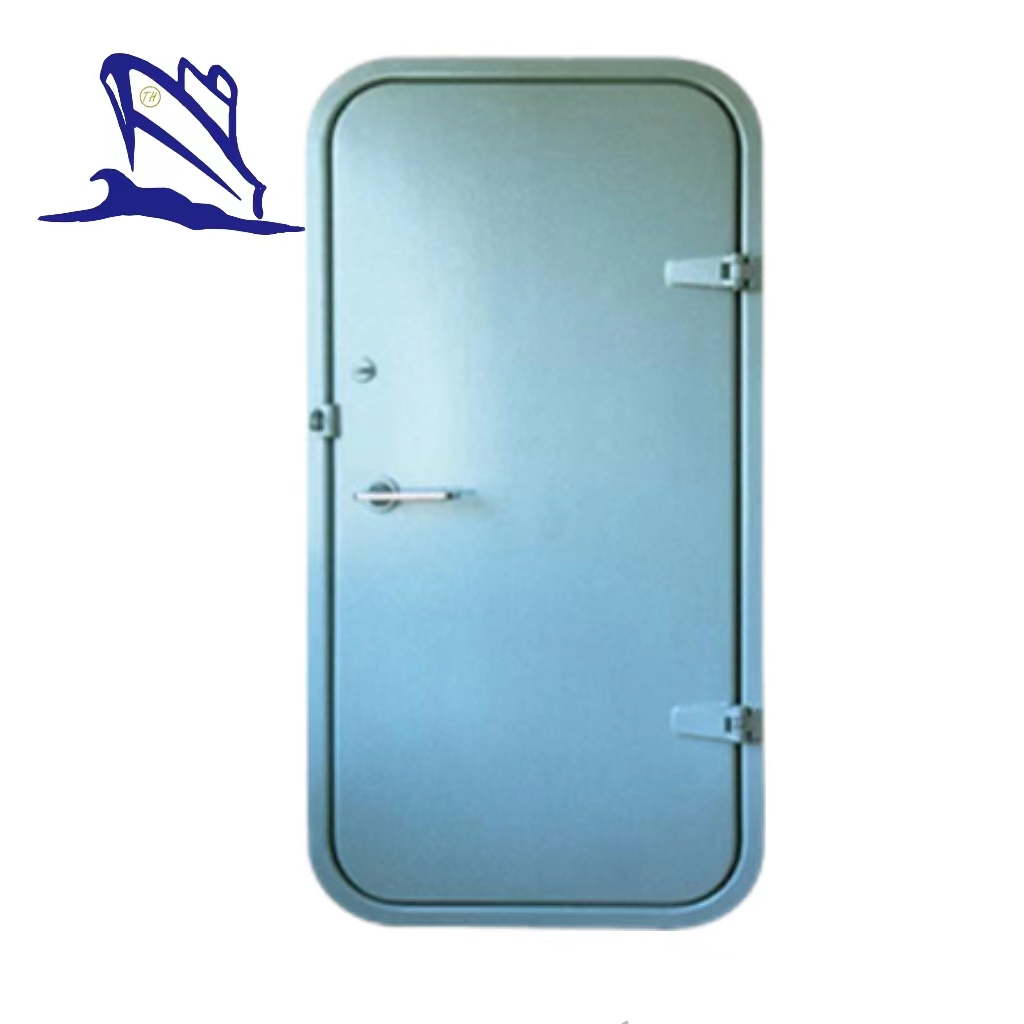

Quick Open & Closing Watertight Steel Door
Quick Open & Closing Watertight Steel Door
It is used for engine room and other compartments with max. water pressure of 0.06Mpa. Quick open & closing steel watertight door with single handle is used for upper structure of ship and constructions on land, drilling platforms and basements. It can be opened and closed quickly and lightly, which meets the requirement of International Load Line Convention 1966. It can withstand the max. water pressure of 0.06Mpa.
Features
▪ Quick open and closed
▪ To withstand the max. Water pressure 0.06Mpa
▪ Long service life
▪ Excellent waterproof performance

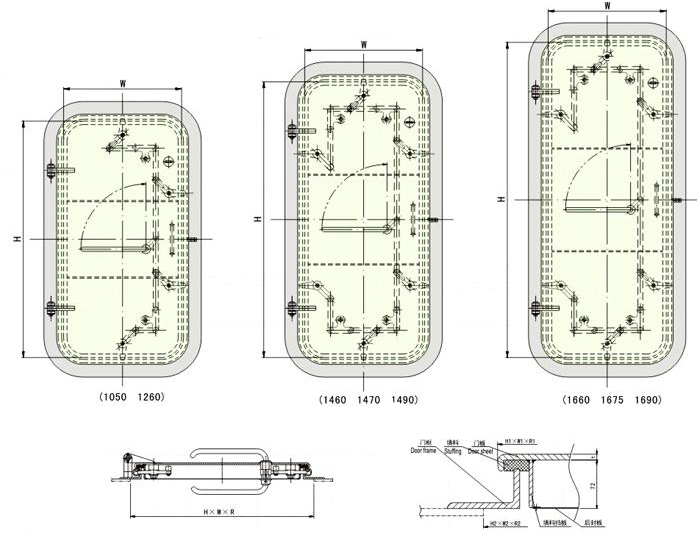

Standard | Size of Doorway H×W×R | Size of Door H1×W1×R1 | Hole Size of Casing Wall H2×W2×R2 | Thickness of Doorleaf | Weight Kg |
1050 | 1000×500×100 | 1049×549×124.5 | 1100×600×150 | 6 | 92.3 |
1050×551×125.5 | 8 | 103.8 | |||
1260 | 1200×600×100 | 1249×649×124.5 | 1300×700×150 | 6 | 113.4 |
1251×651×125.5 | 8 | 129.0 | |||
1460 | 1400×600×100 | 1449×649×124.5 | 1500×700×150 | 6 | 128.6 |
1451×651×125.5 | 8 | 146.7 | |||
1475 | 1400×750×100 | 1449×799×124.5 | 1500×850×150 | 6 | 144.4 |
1451×801×125.5 | 8 | 165.9 | |||
1490 | 1400×900×100 | 1449×949×124.5 | 1500×1000×150 | 6 | 160.1 |
1451×951×125.5 | 8 | 185.2 | |||
1660 | 1600×600×100 | 1649×649×124.5 | 1700×700×150 | 6 | 136.9 |
1651×651×125.5 | 8 | 154.8 | |||
1675 | 1600×750×100 | 1649×799×124.5 | 1700×850×150 | 6 | 161.4 |
1651×801×125.5 | 8 | 185.7 | |||
1690 | 1600×900×100 | 1649×949×124.5 | 1700×1000×150 | 6 | 178.0 |
1651×951×125.5 | 8 | 206.4 |
