MARINE WINDLASS

Hydraulic Double Windlass

Our windlass is in line with the GB4447-92 standards of anchor windlass and capstan for ship use. Parts of our products are approved by CCS, ABS,NK,BV,GL, KR,LRS etc..This series of windlass have two models of structures,single type, symmetrical type, combined windlass and mooring winch. Our products have the features of compact and reasonable structure, large carrying capacity, excellent performance, safety and reliability, simple operation and long service life and so on.

Main Specifications of Hydraulic Double Windlass

1. Chain Cable Diameter: 19mm to 73mm

2. Working Load: 15.3kN to 226.5kN

3. Supporting Load: 95kN to 1254kN

4. Anchoring Depth: 82.5m

5. Nominal Speed: ≥9

6. Nominal Drum Load: 15kN to 125kN

7. Wire Rope Diameter: 13mm to 26mm

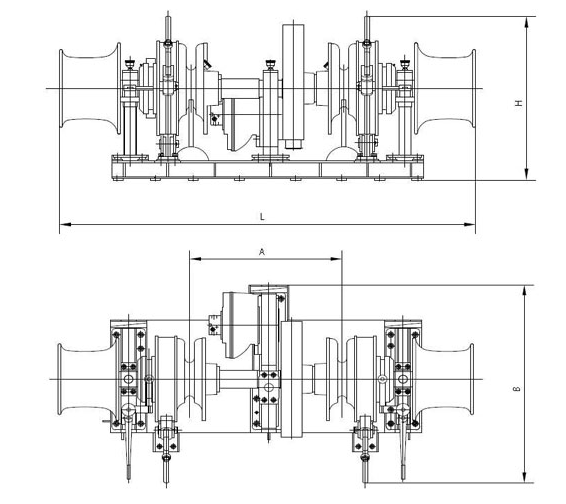

Symmetrical Hydraulic Windlass Drawing
