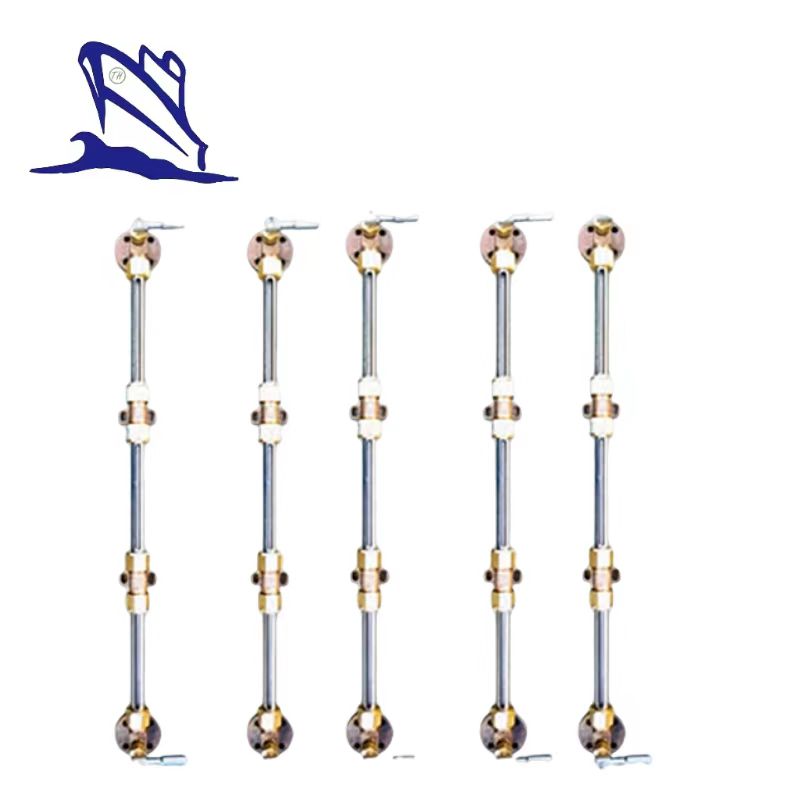

Marine Tube Type Level Gauge
Marine Tube Type Level Gauge
1. Brief Introduction:
Marine tube type level gauge is called oil level gauge. It is widely used for all kinds of marine oil tanks and water tanks.
2. Parameter List:

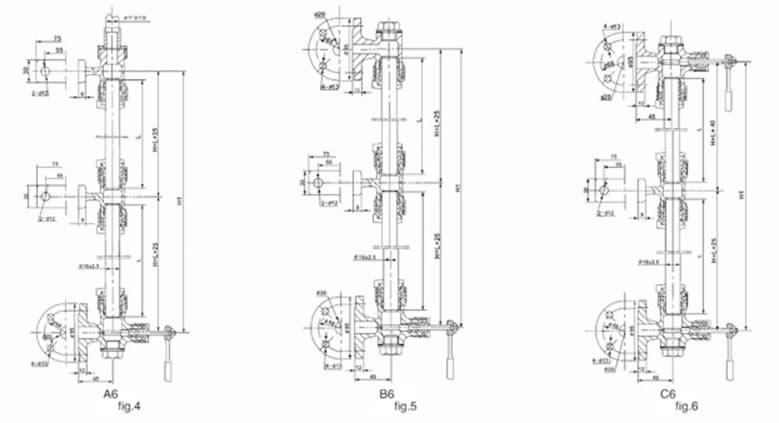

Type | Nominal Pressure PN(Mpa) | Nominal Diameter DN | Working Pressure (Mpa)/Medium Temp. ＜120 ℃ | Working Pressure/Medium Temp. ＞120-200℃ | Medium |
A1 | 0.1 | 10 | 0.1 | 0.1 | Oil (Except heavy oil) |
B1 | 0.1 | 10 | 0.1 | 0.1 | Oil (Except heavy oil) |
C1 | 0.1 | 10 | 0.1 | 0.1 | Oil (Except heavy oil) |
A6 | 0.6 | 10 | 0.6 | 0.5 | Oil (Except heavy oil), Water |
B6 | 0.6 | 10 | 0.6 | 0.5 | Oil (Except heavy oil), Water |
C6 | 0.6 | 10 | 0.6 | 0.5 | Oil (Except heavy oil), Water |
