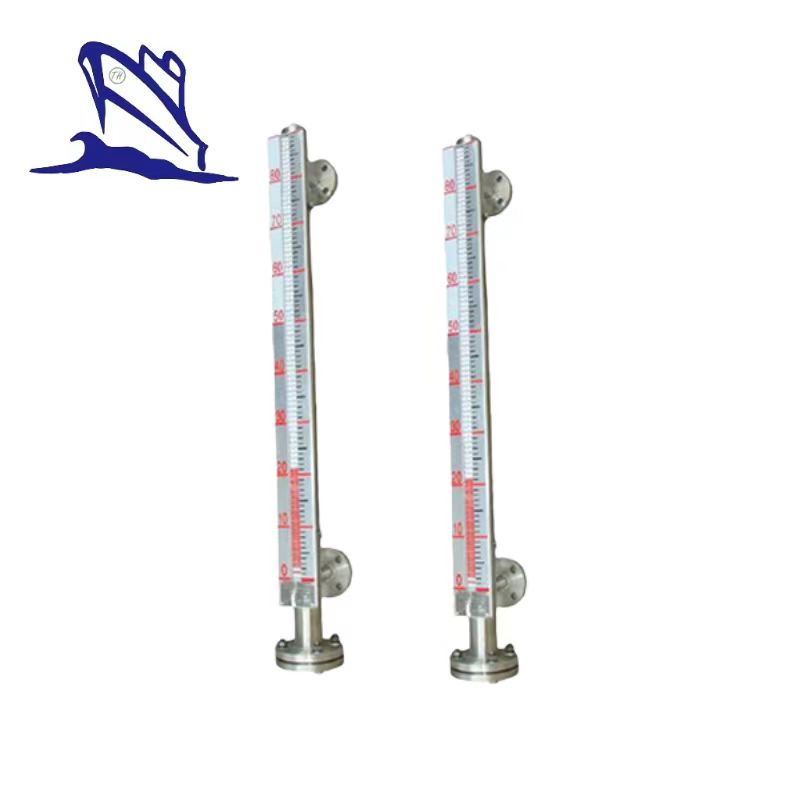

Marine Magnetic Type Level Gauge
Marine Magnetic Type Level Gauge
1. Brief Introduction:
Marine magnetic type level gauge is widely used to measure and control level and show liquidity in the tank.
2. Application: Ship field.
3. Types: conventional type and jacket type.
4. Specification:
Conventional type | |
Accuracy | ±8mm |
Measuarement range | 500-8000mm |
Medium | F.W.,F.O,L.O,D.O.,etc. |
Specific gravity of medium | ≥0.6/cm^3 |
Max.working pressrue | 0.2Mpa |
Test pressure | 0.3Mpa |
Temperature of working medium | -17℃~+80℃ |
Connecting flange standard | 16020 GB2506-89 |
Tolerance of nominal length | ≤1/1000 |
Main material | 1Cr18Ni9Ti |
Drain type | Drain ball valve or drain plug |
————————————————————————————————————————————————————————
Jacket | |
Accuracy | ±8mm |
Measuarement range | 500-8000mm |
Medium | F.W.,F.O,L.O,D.O.,etc. |
Specific gravity of medium | ≥0.6/cm^3 |
Max.working pressrue | 0.2Mpa |
Test pressure | 0.3Mpa |
Working pressure of steam | 0.7Mpa |
Temperature of working medium | ≤300℃ |
Connecting flange standard | 16020 GB2506-89 |
Tolerance of nominal length | ≤1/1000 |
Steam joint size | M16X1.5,G1/2" |
Main material | 1Cr18Ni9Ti |
Drain type | Drain ball valve or drain plug |
