MARINE WINDLASS

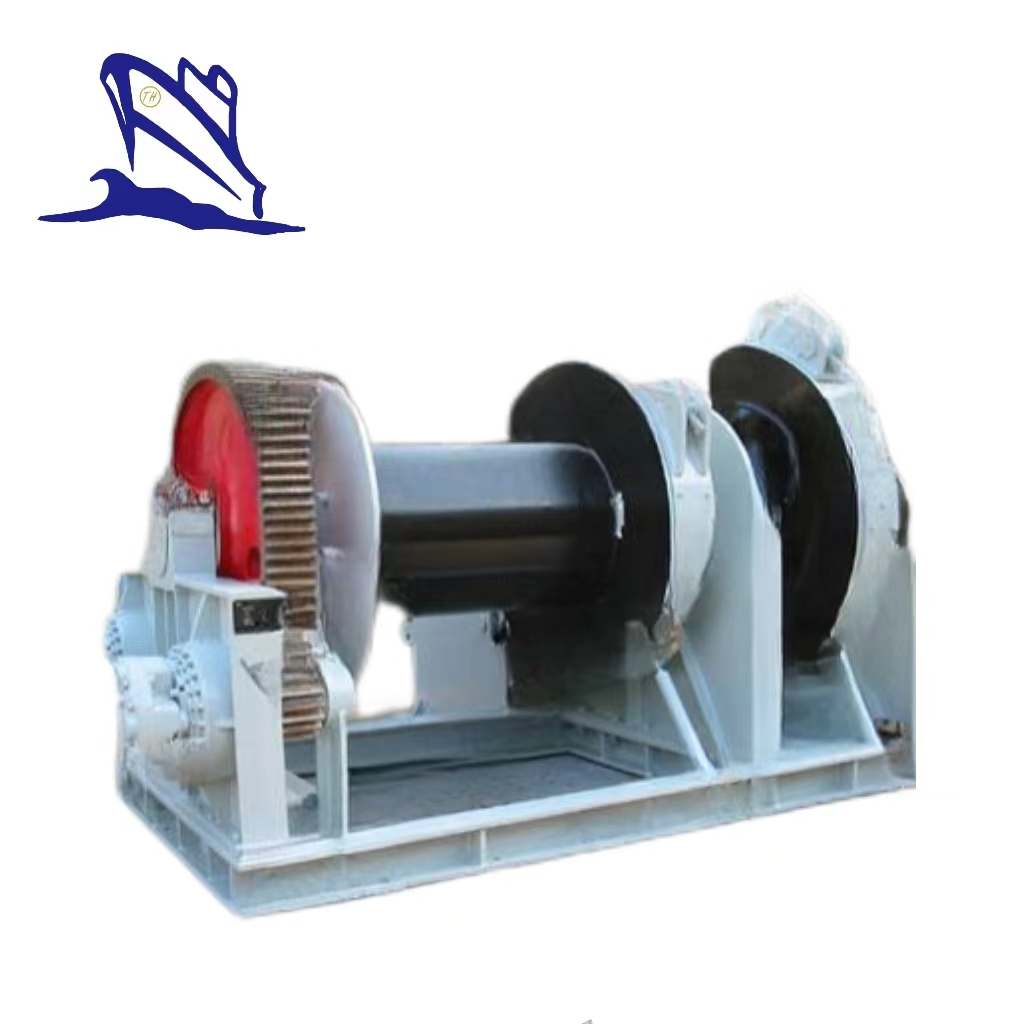

Hydraulic Combined Windlass Mooring Winch:

According to the drum distribution, the hydraulic combined windlass/mooring winches are divided into two types: symmetrical type and single type. Our windlass winches are in line with the standards of GB4447-92 and some parts of it are approved by CCS, ABS, BV, NK, GL, KR, LRS etc.. Compact structure, large capacity, excellent performance, safe and reliability, simple operation and long service life are the advantages of our products.

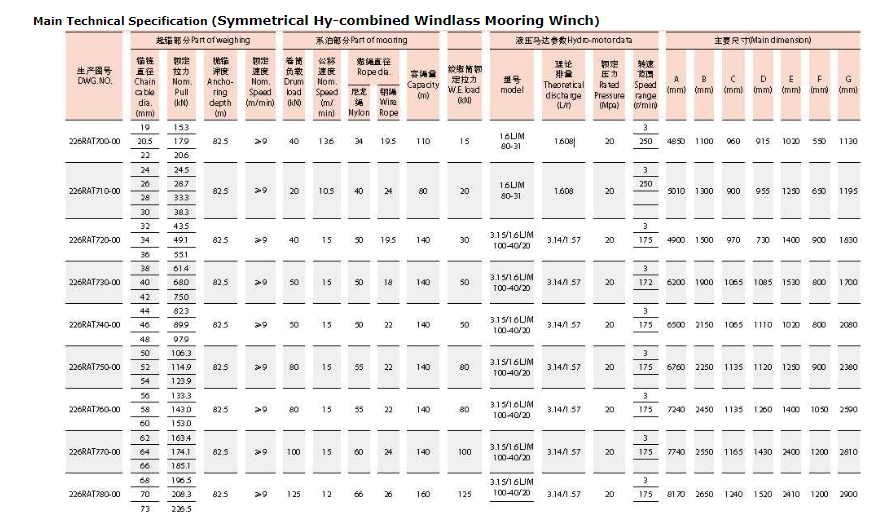

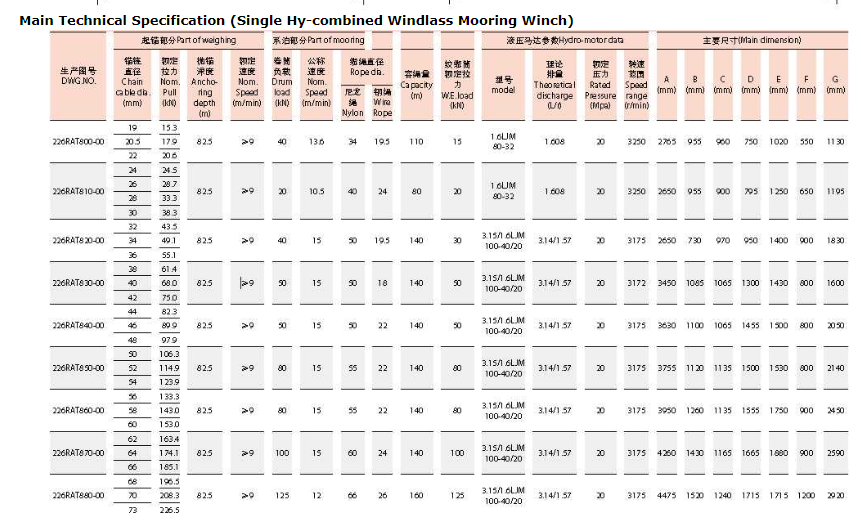

Main Specifications for Hydraulic Combined Windlass Mooring Winch:

1. Chain Cable Diameter: 19mm to 73mm

2. Nominal Pull: 15.3kN to 226.5kN

3. Anchoring Depth: 82.5m

4. Nominal Speed: ≥9m/min

5. Rope Diameter:

A. Nylon Rope Diameter: 34mm to 60mm

B. Wire Rope Diameter: 19.5mm to 26mm

6. Rope Capacity: 80m to 160m

7. Nominal Pull of Cable Drum: 15kN to 125kN
