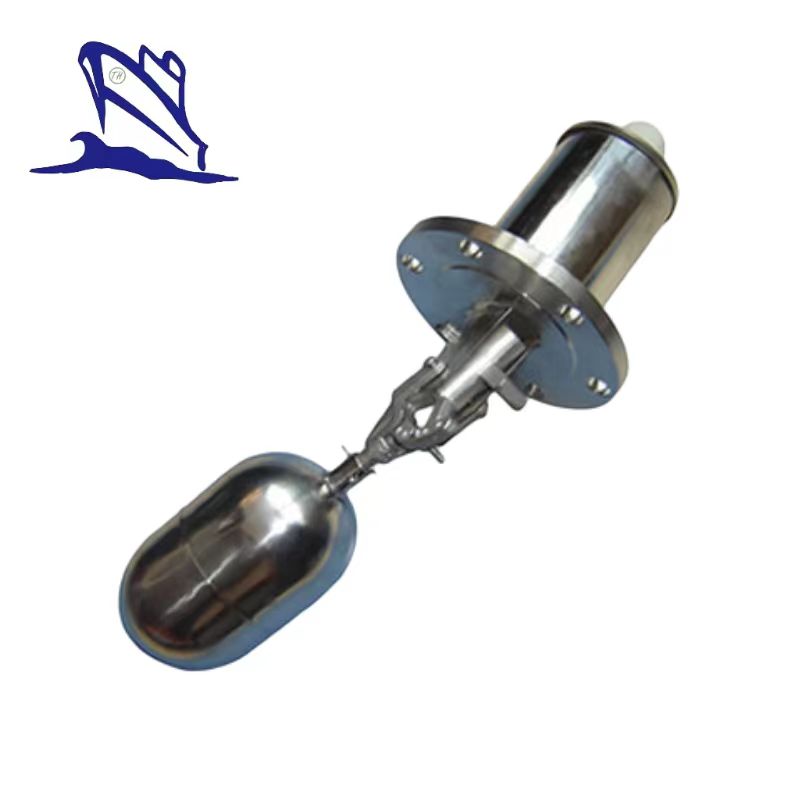

Float Level Switch
Float Level Switch
1. Field: Ship Building, Ship Repair
2. Application: It is widely used in ship to control and alarm the liquid level in tank.
3. Installation: Top Mounting (Vertical Mounting)
4. Max. Working Pressure: 10 kg/cm2
5. Max. Working Temperature: 150 ℃
6. Switch Type: Micro Switch
7. Protection: IP 56, Weather Proof
8. Size:
| Nominal Pressure | Size | O.D | P.C.D | No. of Hole | Diameter of Hole |
| 5 K | 65 mm | 155 mm | 130 mm | 4 Pieces | 15 mm |
9. Parts Name:
| No. | Description |
| 1 | Body |
| 2 | Cover |
| 3 | Flange |
| 4 | Float |
| 5 | Magnet |
| 6 | Swith Box |
| 7 | Name Plate |
| 8 | Cable Gland |
| 9 | Earth Terminal |
