Marine Pressure sea Gauge

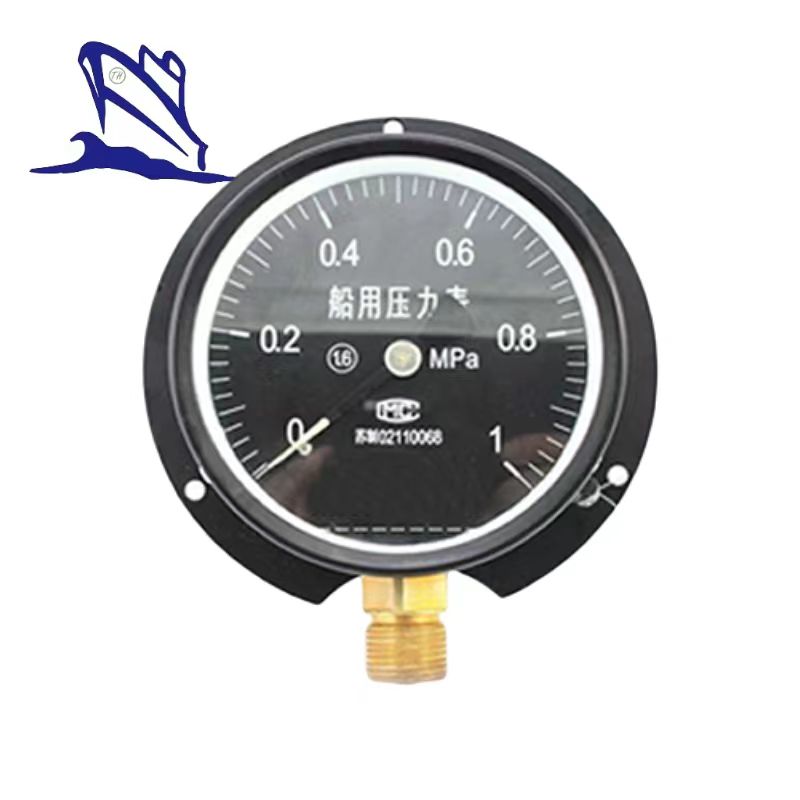

Marine Pressure Gauge
1. Suitable Medium: Gas, Liquid etc.
2. Measuring Range: 0-60 Mpa
3. Accuracy: 2.5 Grade
4. Dial Diameter: 60 mm, 75mm, 100mm, 150mm, 200mm
5. Material: Iron Alloy, Al-Alloy, Copper Alloy, Stainless Steel

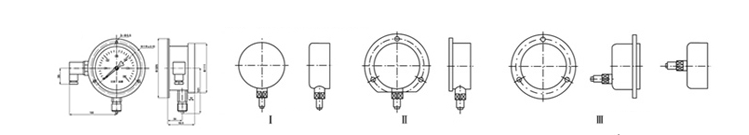

Marine Pressure Gauge Mounting Dimension
D | D1 | A | B | d2 | d0 | d1 |
60 | Φ85 | 64 | 48 | Φ4.5 | 72 | Φ5 |
75 | Φ98 | - | - | - | 88 | Φ4.5 |
100 | Φ130 | 102 | 80 | Φ5.5 | 118 | Φ6 |
150 | Φ180 | - | - | - | 165 | Φ6 |
200 | Φ230 | - | - | - | 215 | Φ6 |
Marine Pressure Gauge Connection Screw Thread Dimension
Dial Nominal Diameter mm | Connection Size | ||
d | L mm | d1 mm | |
60 | M10X1 | 10 | Φ4.5 |
75 | M14X1.5 | 14 | Φ5 |
100 | G3/8 inch | 16 | |
150 | M20X1.5 G1/2 inch | 20 | Φ6 |
200 | |||
Remark: We can produce according to customer's requirements. | |||
