Marine Pressure Transmitter sea

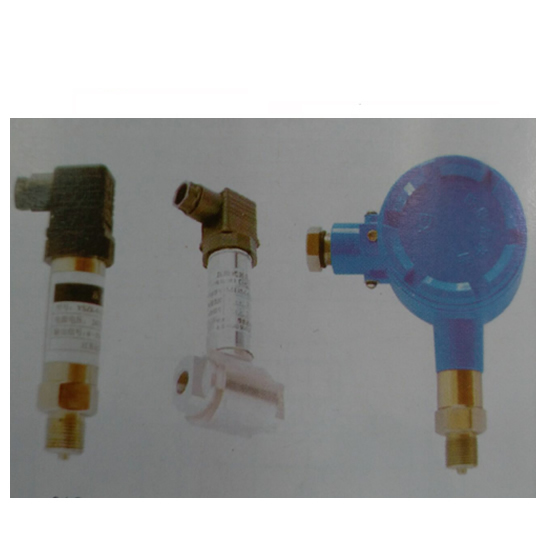

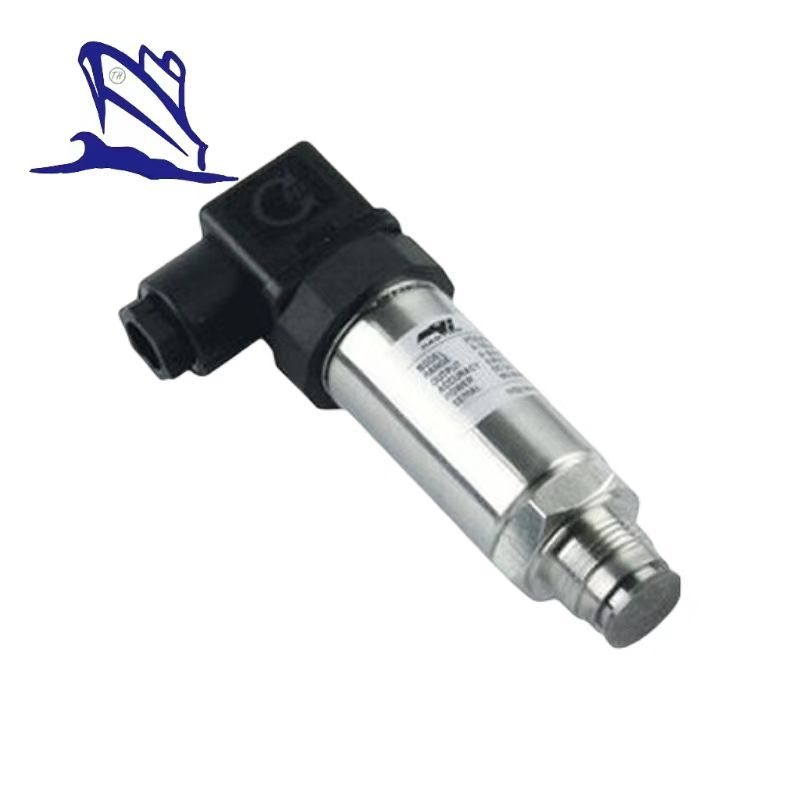

Marine Pressure Transmitter
1. Application: Used for measure the pressure of liquid, gas in ship.
2. Working Temperature: -20--+80℃
3. Protection: IP 56
4. Over Load: 150% above max. Range
5. Power: 24V +10% DC
6. Output: DC 4-20 mA (two wires)
7. Measuring Accuracy: ±0.5% FS
Measure Range
Model | Measuring Range (MPA) |
Gauge Type | -0.1~0.1, -0.1~0, 0~0.10, 0~0.16, 0~0.25, 0~0.40, 0~0.60, 0~1.0, 0~1.6, 0~2.5, 0~4.0, 0~6.0, 0~10, 0~16, 0~25, 0~40, 0~60 |
Abs. Type | 0~0.10, 0~0.16, 0~0.25, 0~0.40, 0~0.60, 0~1.0, 0~1.6, 0~2.5, 0~4.0, 0~6.0, 0~10, 0~16, 0~25, 0~40, 0~60 |
Seal Type | 0~0.01, 0~0.02, 0~0.05, 0~0.10, 0~0.20, 0~0.50, 0~1.0, 0~2.0 |
