MARINE FIRE ALARM SYSTEM

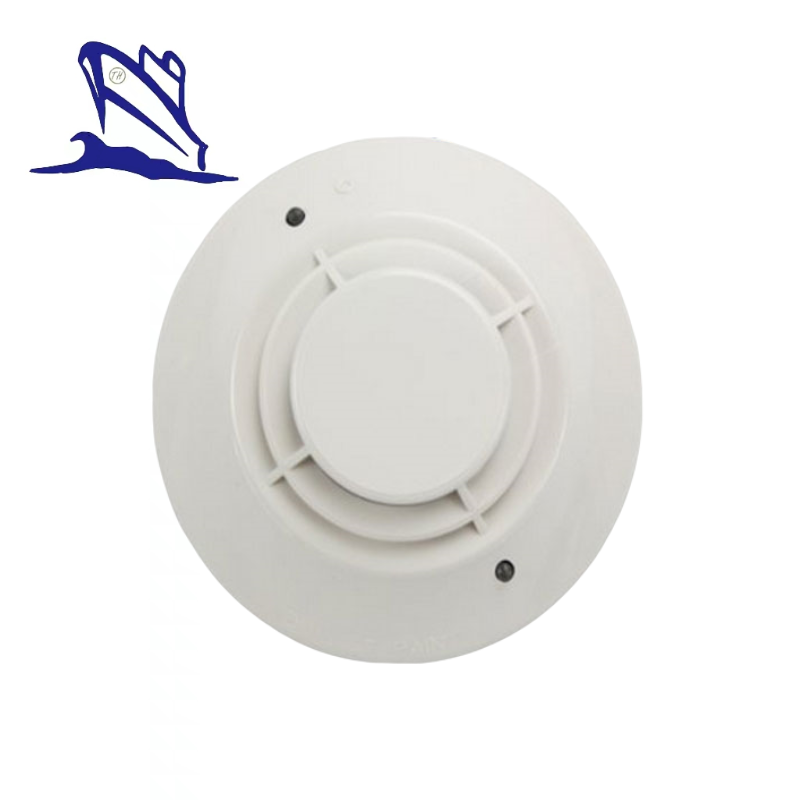

Marine Intelligent Photoelectric Smoke Detector

Marine intelligent photoelectric smoke fire detector is an addressable fire alarm device cooperating with intelligent fire alarm control panels to bulid a fire detection system. It shows fire alarm by LED indicators and transmits the fire signal to the control panel.

Main Features

I. Twin LED for 360° View

II.Electronically addressed in field

III.Bulit-in microprocessor stores 14 history data

IV.Remote indicator output available

V.Auto-reset function

VI.Photoelectric sensor

Technical Parameters

Voltage: DC 9V -35V

Static Current:50uA

Alarm Current:35 mA at DC 12V,60mA at 24V

Alarm indication:Red LED on

Operating Temperature:-10° —— 50°

Humidity 0%-95%

Alarm Output: Remote LED

Dimension:103* 53 mm
