MARINE FIRE ALARM SYSTEM

What Is It?

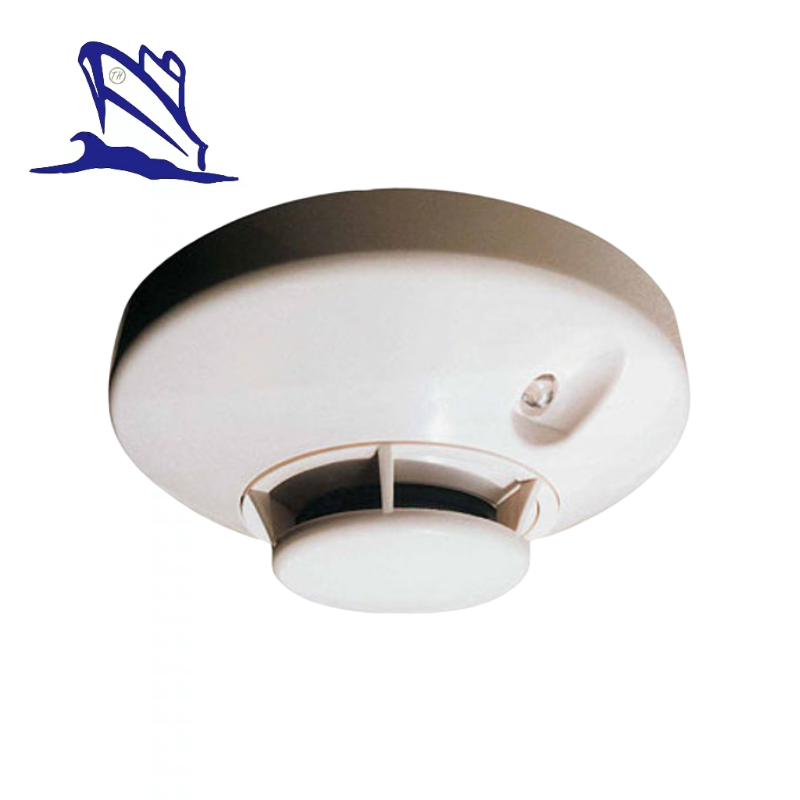

Marine addressable Photoelectric smoke detector incorporating with unique high performance chamber which allows the sensor threashold level to be increased, thereby improving the signal to noise ratio and reduce susceptibility to false alarms.

Specification

Diameter:102mm

Height:50mm

Weight:106g(with base)

Operating Temperature Range: -10deg~55deg

Operating Humidity Range:10%~95%RH,Noncondensing

Max Air Velocity:10m/s

Operating Voltage:15~35VDC

Standby Current: be smaller or equal to 700uA (24VDC)

Alarm Current(LED on) :be smaller or equal to 3.0mA (24VDC)
