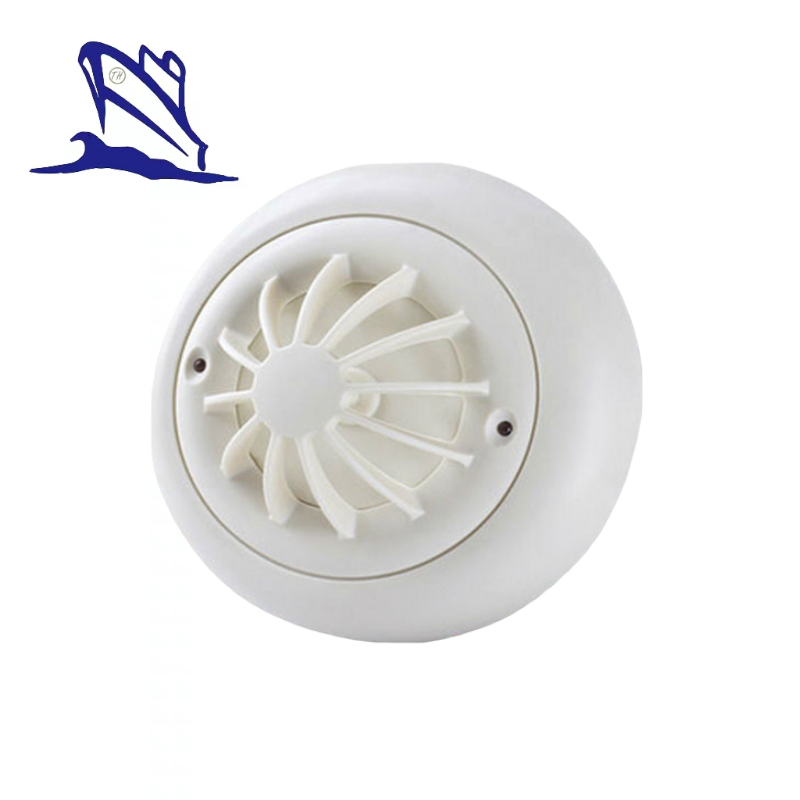

MARINE FIRE ALARM SYSTEM

Main Features

I.High stability

II.Low standby current

III.Anti-rfi & anti-emi

IV.Dual LED for 360 visibility

V.Remote LED indicator output

VI.2 wire or 4 wire is available

Technical Specification

Operating voltage: 9~35V DC

Static Current:55uA

Alarm Current:25mA (DC 12V) /54mA (DC 24V)

Alarm Output: Remote indicator on / relay output

Temperature trip point:135( 57)

Operating temperature: -10~ 50

Operating Humidity:95HR

Alarm indication:LED continuously emitting red light

Dimension: 100mm* 40mm( Dia* Hight)
