Rubber Hard Suction Hose

Rubber Hard Suction Hose

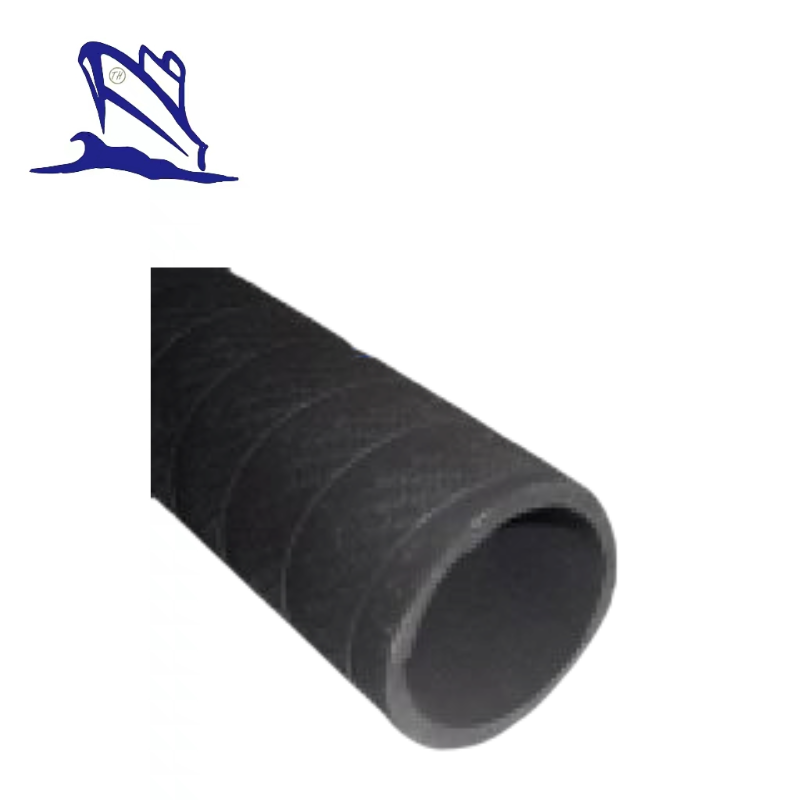

Rubber Hard Suction Hose sometimes called hard suction, is usually a rubber-covered hose with internal mental reinforcements. It is used to suck water out of unpressurized sources, such as ponds or rivers, by means of a vacuum. It is widely used in industry, agriculture, factory, mining, etc
Product details:
Place of origin: Chongqing, China (mainland)
Brand name: HI-SEA
Hose tube: SBR synthetic rubber
Reinforcement layer: High tensile tire cord with helix steel wire.
Outer cover: SBR synthetic rubber
I.D.(inch): 3',4',5',6',8',10
Working temperature: -30 centigrade degree to +80 centigrade degree
Characters:
1. Abrasion resistant, weather resistant and zone resistant
2. High pressure, durable and strong.
Specifications:
Technical Requirements | |||||
I.D. (Inch/mm) | Wall thickness (mm) | Working Pressure | Bending Radius (Inch/mm) | ||
3' | 76 | 6.5 | 10/150 | 20 | 500 |
4' | 102 | 7.5 | 10/150 | 28 | 700 |
5' | 127 | 9.5 | 10/1500 | 40 | 1000 |
6' | 152 | 10 | 10/1500 | 48 | 1200 |
8' | 203 | 11 | 10/150 | 64 | 1600 |
10' | 254 | 14 | 10/150 | 100 | 2500 |
