MARINE STRAINER

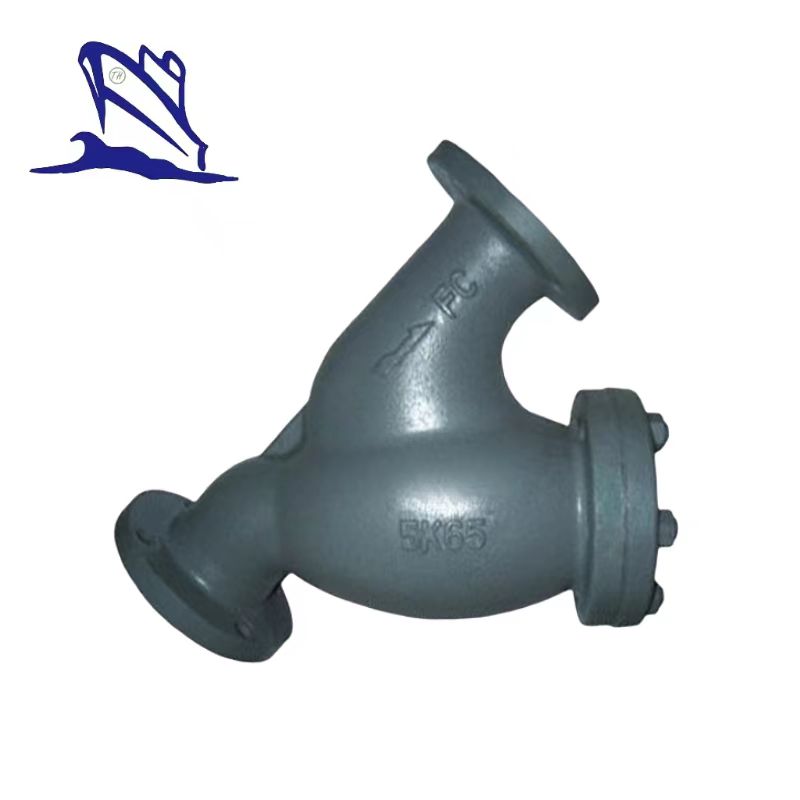

Marine Cast Iron Y strainer JIS F7220:

1. Basic info:

(1). Material: Cast iron

(2). Design standard: JIS F7220-1996

(3). Test standard: JIS 7400-1996

(4). Hydraulic test pressure: Body-- 1.05Mpa

(5). Flange size as per JIS B 2220-5K

2. Main material:

(1). Body: Cast iron (FC200)

(2). Bonnet-Cast iron(FC200)

(3). Strainer-Stainless steel(SUS304)

(4). Gasket: non-asbestos

3.Fundamental dimensions of Marine Cast Iron Y strainer JIS F7220

Marine Cast Iron Y Type Strainer (Filter) JIS F7220

DN	d	L	D	C	Hole (n-d)	t	H
(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)
20	20	200	85	65	4-12	14	127
25	25	225	95	75	4-12	14	155
32	32	260	115	90	4-15	16	164
40	40	280	120	95	4-15	16	180
50	50	320	130	105	4-15	16	208
65	65	350	155	130	4-15	18	253
80	80	373	180	145	4-19	18	268
100	100	390	200	165	8-19	20	286
125	125	410	235	200	8-19	20	295
150	150	430	265	230	8-19	20	318
