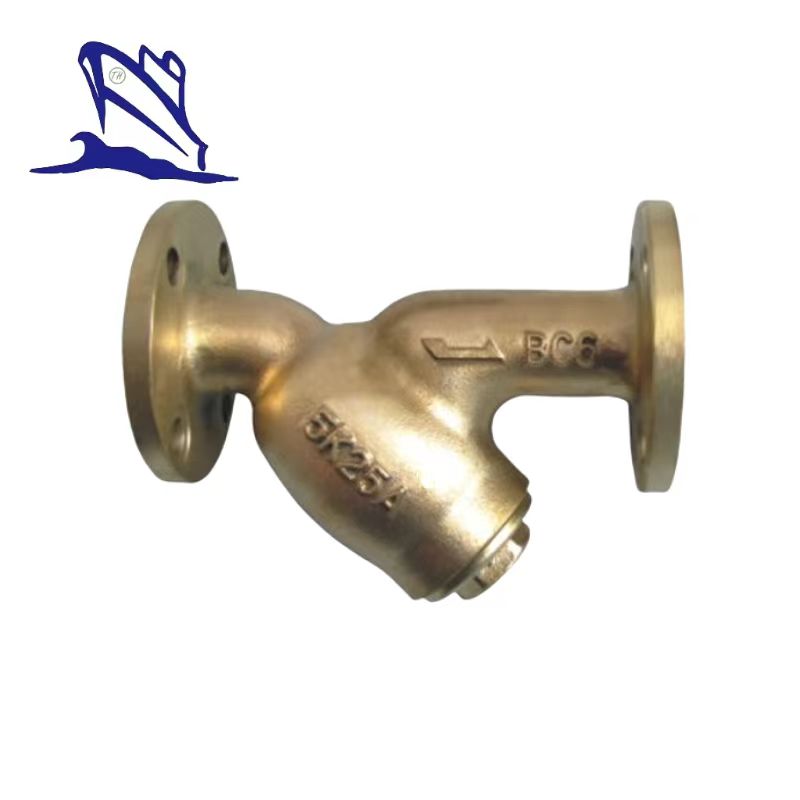

MARINE STRAINER

1. Basic info:

(1). Material: bronze

(2). Design standard: JIS F7220Q-1996

(3). Test standard: JIS 7400-1996

(4). Hydraulic test pressure: Body---1.05Mpa

(5). Flange size as per JIS B2220-5K

(6). 10K,20K also available.

2. Main material:

(1). Body: bronze (BC6)

(2). Bonnet: bronze(BC6)

(3). Strainer: stainless steel(SUS304)

(4). Gasket: non-asbestos

3.Fundamental dimensions of Marine Bronze Y strainer JIS F7220Q

Marine Bronze Y Strainer (Filter) JIS F7220Q

DN	d	L	D	C	Hole (n-d)	t	H
5K15	25	165	80	60	4-12	9	86
5K20	25	165	85	65	4-12	10	86
5K25	25	165	95	75	4-12	10	86
5K32	40	170	115	90	4-15	12	106
5K40	40	170	120	95	4-15	12	106
5K80	80	373	180	145	4-19	18	266
10K/16K15	25	165	95	70	4-12	12	86
10K/16K20	25	165	100	75	4-15	14	86
10K/16K25	25	165	125	90	4-19	14	86
10K/16K32	40	170	135	100	4-19	16	106
10K/16K40	40	170	140	105	4-19	16	106
