MARINE STRAINER

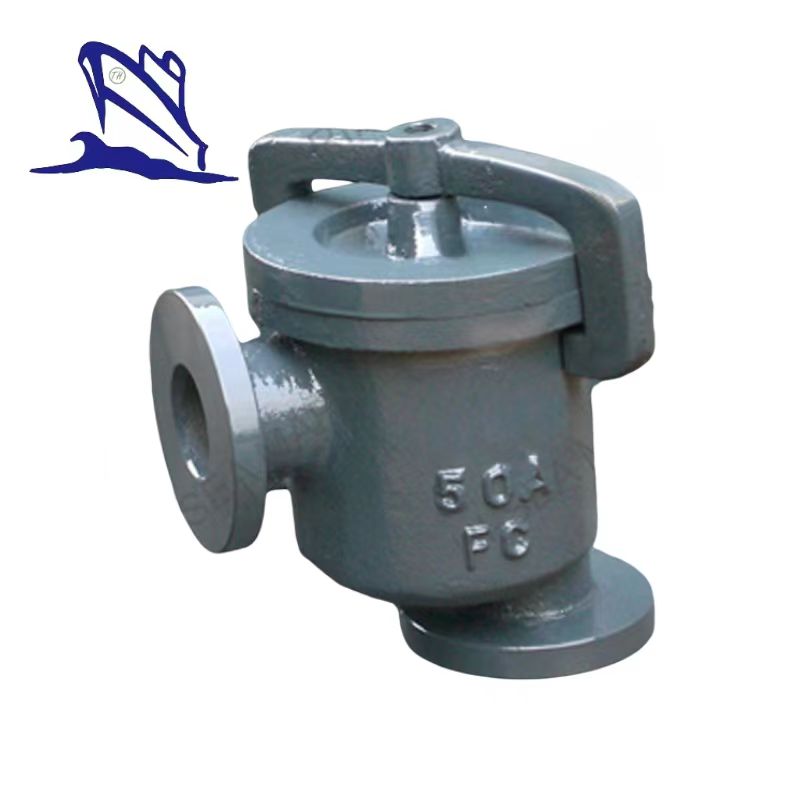

Marine Mud Box JIS F7203 :

1. L type, S type mud box availalbe.

2. Design standard: JIS F 7203-1996.

3. Test: JIS F 7200-1996.

4.PN:5k/10k.

5. Material: cast iron

(1). Bonnet: FC200

(2). Strainer: SS400

(3). Body: FC200

(4).Cover push: FCD400

6.Fundamental dimensions of Marine Mud Box JIS F7203

Marine Mud Box JIS F7203

DN	d	L	L1	D	C	Hole (n-d)	t	E
40	40	90	22.5	120	95	4-15	16	145
50	50	120	40	130	105	4-15	16	145
65	65	150	52.5	155	130	4-15	18	180
80	80	160	55	180	145	4-19	18	195
100	100	190	70	200	165	8-19	20	225
125	125	235	87.5	235	200	8-19	20	275
150	150	280	110	265	230	8-19	22	320
200	200	330	135	320	280	8-23	24	405
250	250	380	155	385	345	12-23	26	525
