MARINE STRAINER

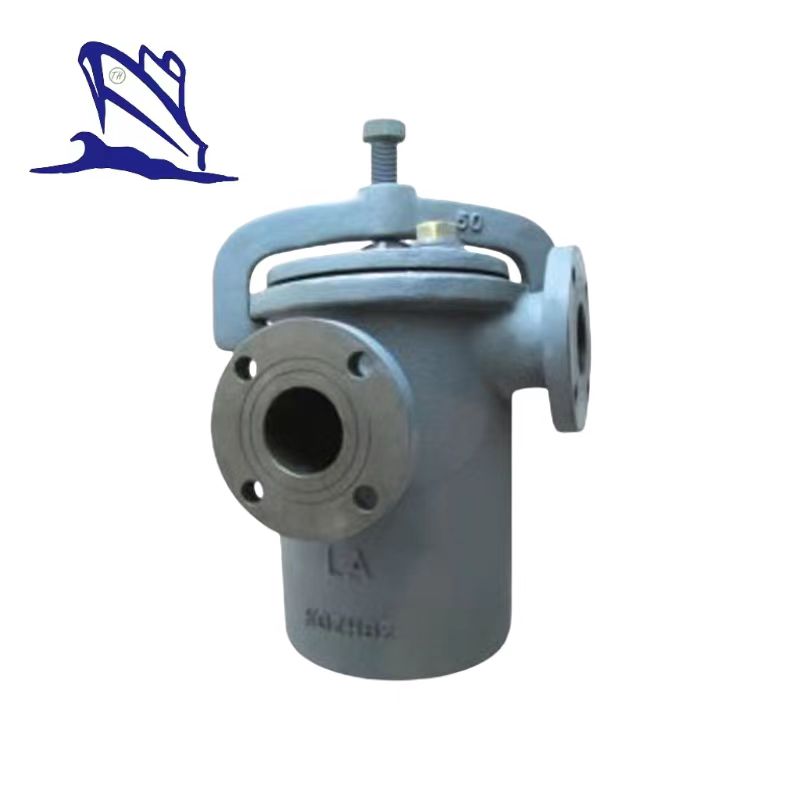

Marine Simplex Oil Strainer JIS F7209:

1. LA, LB strainer available.

2. Material:

(1). Body: FC200

(2). Bonnet: FC200

(3). Cover push: FCD400

(4). Strainer: SS400(SUS 304)

3. Design standard: JIS F 7209-1996

4. Test: JIS F 7200-1996

5.Fundamental dimensions of Marine Simplex Oil Strainer JIS F7209

Marine Simplex Oil Strainer JIS F7209

DN	d	L	L (LA/LB)	D	C	Hole (n-d)	t	H
5K20	25	190		85	65	4-12	14	240
5K25	25	190	95	95	75	4-12	14	240
10K25	25	190	95	125	90	4-19	16	240
5K32	32	260	130	115	90	4-15	18	328
10K32	32	260	130	135	100	4-19	20	328
5K40	40	260	130	120	95	4-15	16	328
10K40	40	260	130	140	105	4-19	20	328
5K50	50	280	140	130	105	4-15	16	405
10K50	50	280	140	155	120	4-19	20	405
5K65	65	340	170	155	130	4-15	18	495
10K65	65	340	170	175	140	4-19	22	495
5K80	80	370	185	180	145	4-19	18	525
10K80	80	370	185	185	150	8-19	22	525
5K100	100	420	210	200	165	8-19	20	651
10K100	100	420	210	210	175	8-19	24	651
