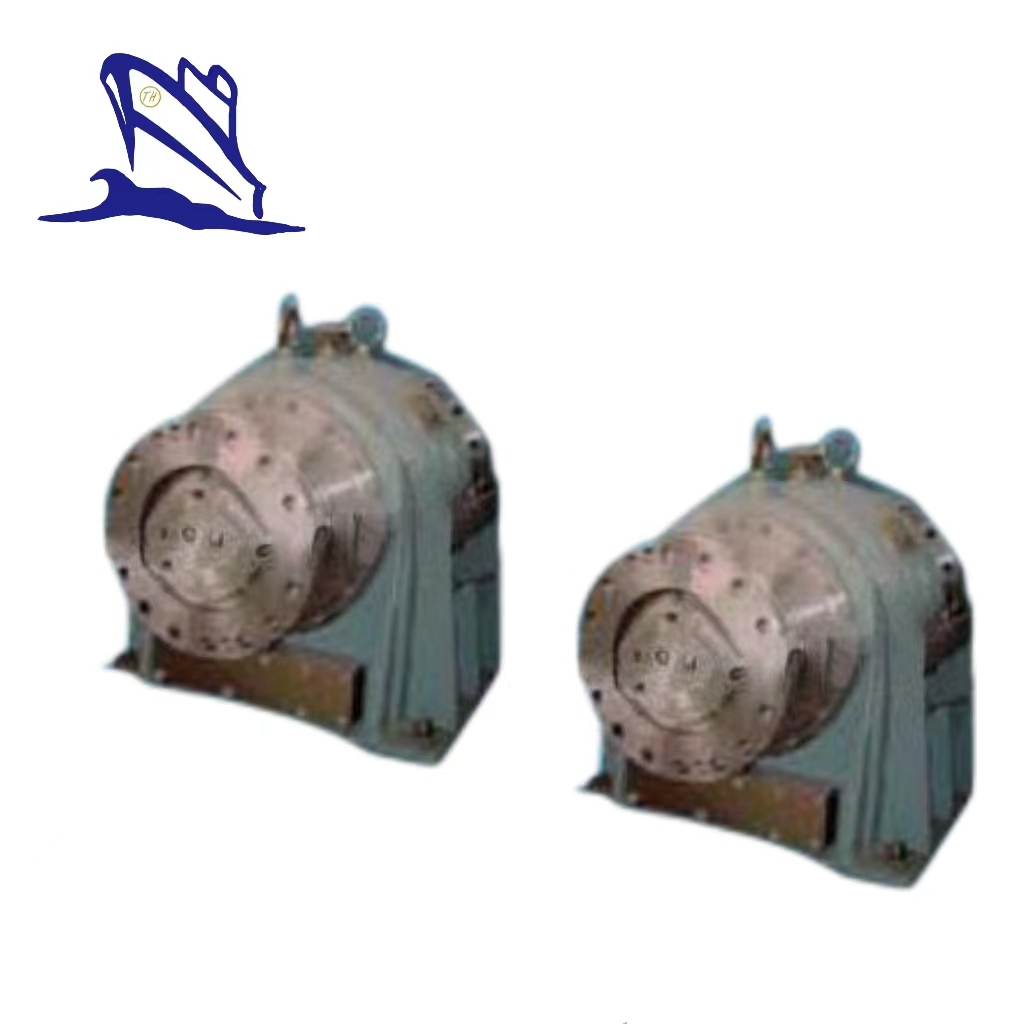

TZ Series Shafting Gliding Thrust Bearing




TZ Series Shafting Gliding Thrust Bearing

This product is marine shafting gliding thrust bearing. Approved by classification society certificates like CCS, ABS, BV, DNV, it is suitable for vessels that have a large thrust requirement and a small axial vibration requirement.

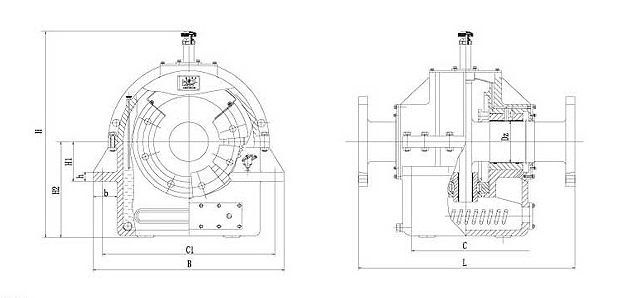

Drawing of TZ Series Shafting Gliding Thrust Bearing

Model

Shaft Journal Dia. Dz(mm)

Pmax (kgf)

N (rpm)

Approximate Sizes of Appearance (mm)

Approximate Sizes of Appearance (mm)

L

B

H

H1

H2

b

h

Base Bolt Hole

C

C1

Reaming

Bore

d1

Quantity

d2

Quantity

TZ140

140

6000

600/300

550

620

650

140

335

70

25

21

4

21

4

550

360

TZ160

160

9000

600/200

640

700

730

150

380

70

25

21

4

21

4

620

400

TZ180

180

12000

600/200

720

800

800

150

400

70

30

32

4

31

4

770

560

TZ200

200

16000

500/180

760

840

835

160

425

70

30

32

4

31

4

770

560

TZ220

220

20000

500/180

830

870

855

180

465

75

35

32

4

31

8

800

540

TZ280

280

30000

350/120

950

990

975

180

525

80

35

38

4

37

8

920

760
