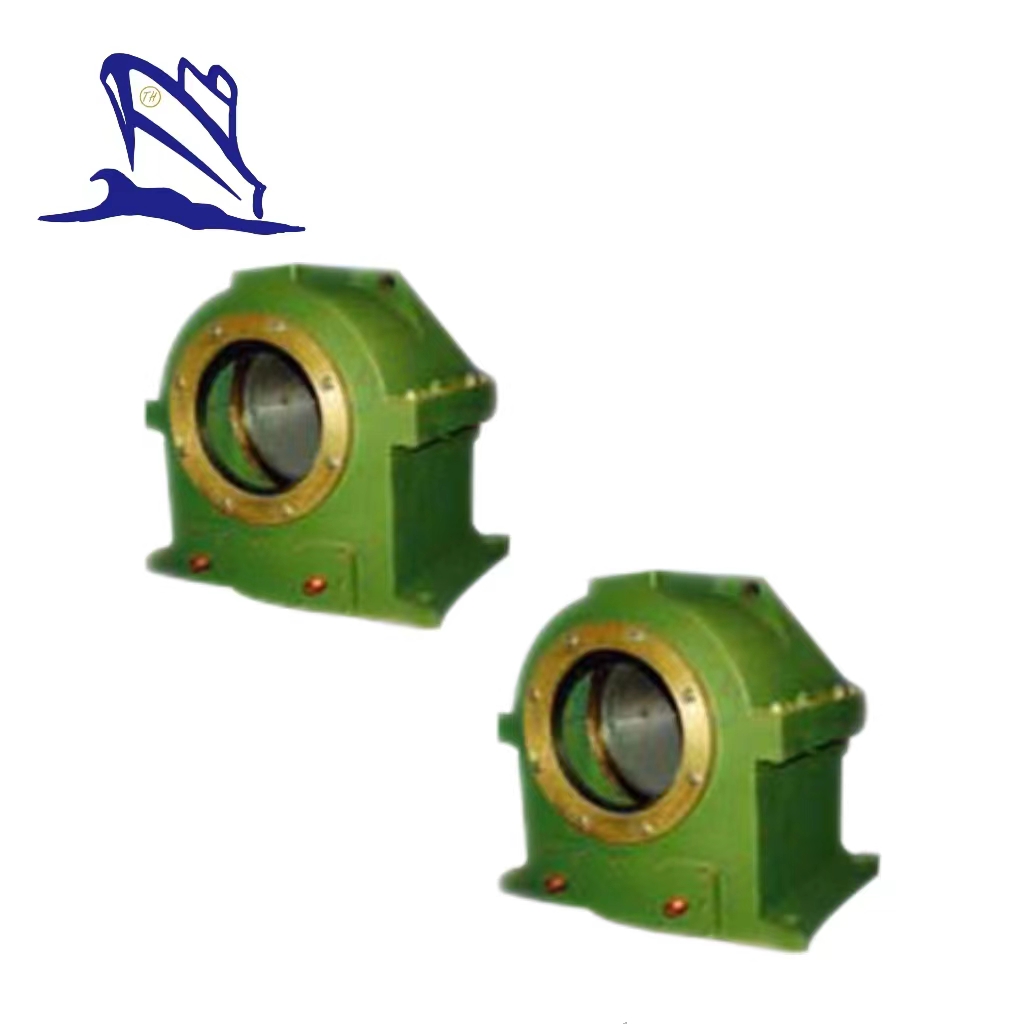

Large Pressure Intermediate Bearing
Large Pressure Intermediate Bearing This kind of large pressure intermediate bearing is suitable for vessels whose shafting pressure is larger than normative pressure (0.6MPa) and which need self-aligning. It is approved by CCCS, BV, DNV, ABS, KR, NK, LRS, etc.

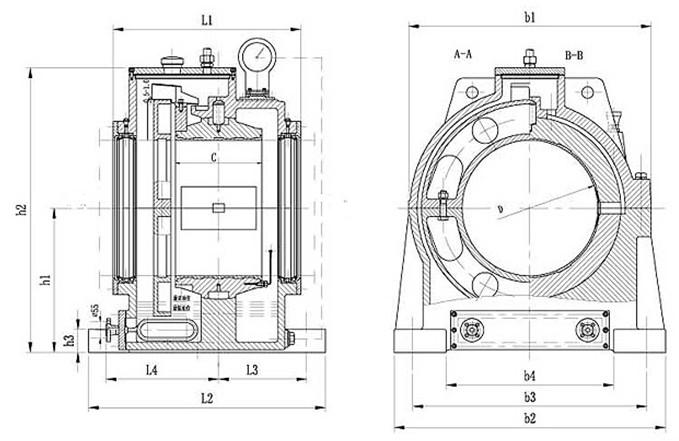

Drawing of Large Pressure Intermediate Bearing
Unit: mm
D | Joint Bolts | b1 | b2 | b3 | b4 | c | h1 | h2 | h3 | L1 | L2 | L3 | L4 |
120~160 | 4×M20 | 320 | 310 | 270 | 160 | 86 | 185 | 360 | 32 | 306 | 320 | 155 | 115 |
161~200 | 4×M20 | 380 | 370 | 320 | 190 | 105 | 220 | 420 | 32 | 330 | 350 | 170 | 130 |
201~240 | 4×M24 | 450 | 440 | 380 | 230 | 126 | 270 | 500 | 35 | 354 | 390 | 185 | 145 |
241~280 | 4×M30 | 514 | 506 | 430 | 260 | 150 | 300 | 560 | 38 | 46 | 450 | 205 | 175 |
281~330 | 4×M30 | 604 | 596 | 520 | 320 | 10 | 370 | 645 | 43 | 436 | 480 | 220 | 190 |
331~390 | 4×M36 | 684 | 664 | 580 | 360 | 200 | 380 | 730 | 48 | 480 | 540 | 245 | 215 |
391~450 | 4×M36 | 770 | 760 | 670 | 440 | 230 | 425 | 820 | 93 | 535 | 585 | 270 | 235 |
451~510 | 4×M42 | 860 | 860 | 760 | 480 | 260 | 480 | 920 | 106 | 620 | 700 | 320 | 280 |
511~570 | 4×M42 | 960 | 910 | 810 | 510 | 290 | 530 | 1020 | 120 | 670 | 740 | 340 | 300 |
571~650 | 4×M48 | 1080 | 1030 | 910 | 570 | 330 | 610 | 1150 | 147 | 770 | 850 | 385 | 345 |
651~740 | 4×M48 | 1190 | 1170 | 1020 | 660 | 380 | 720 | 1330 | 177 | 840 | 930 | 425 | 375 |
