MARINE SHAFTING PARTS

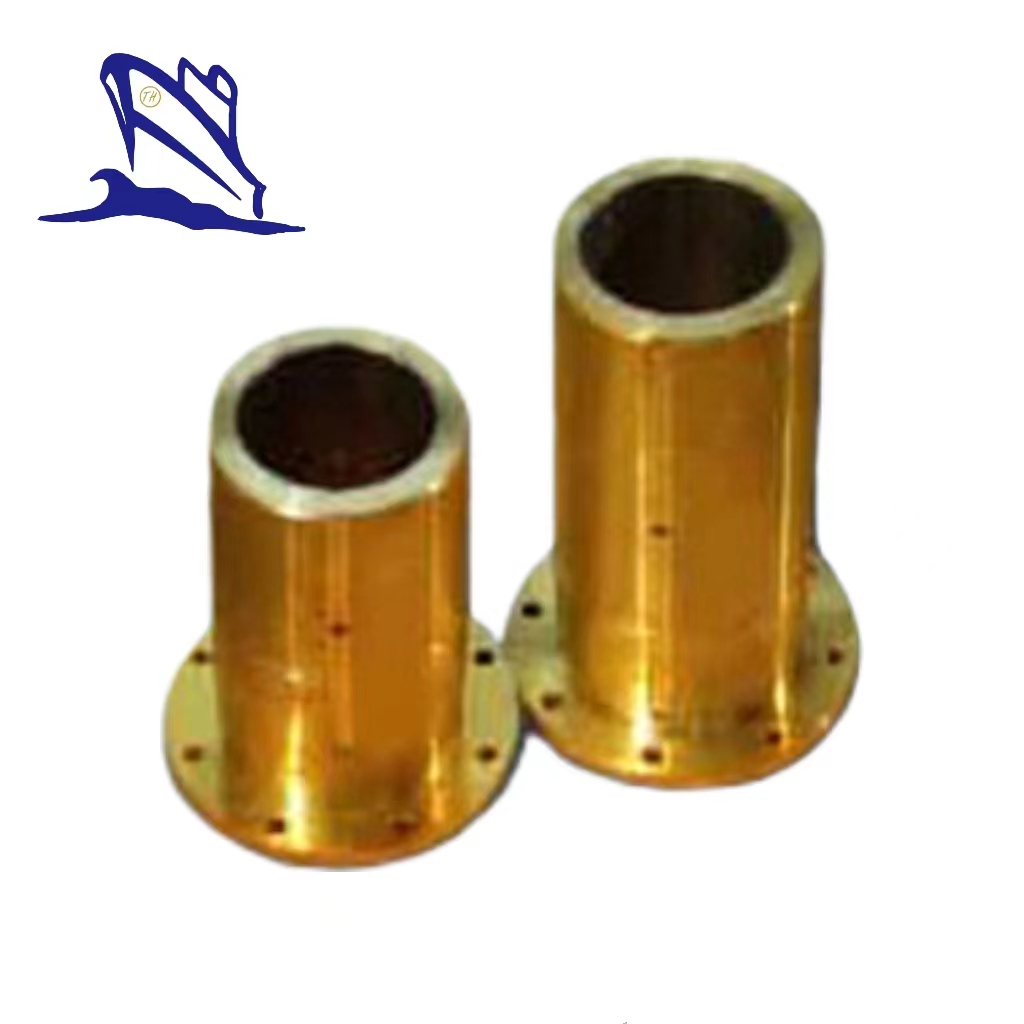

Marine JQ/CS 48A Type Stern Tube Bearing

Marine JQ/CS 48A Type Stern Tube Bearing

Made of white metal, this type of marine stern tube bearing is used together with JQ/CS 48A sealing apparatus. It is approved by CCS, BV, DNV, KR, RINA, etc. We can offer the specified certificate according to customer’s demand.

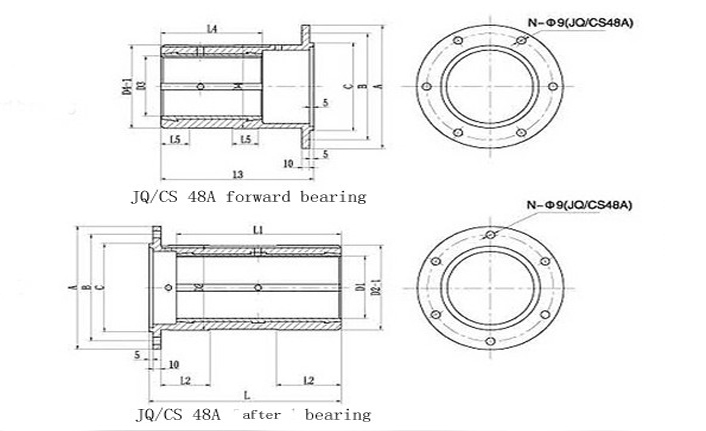

Drawing of Marine 48A Type Stern Tube Bearing

unit: mm

Specification	A	B	C	N	D1	D2	L	L1	L2	L3	L4	L4	Weight (kg)
Specification	A	B	C	N	D1	D2	L	L1	L2	L3	L4	L4	Front	Back
45	110	90	70	4	40	60	135	100	25	95	60	15	1.5	2
50	115	95	75	4	45	66	150	115	30	105	70	15	1.8	2.4
55	120	100	80	4	50	72	160	125	35	115	80	20	2.2	2.9
60	125	105	85	4	55	77	170	135	40	120	85	20	2.6	3.5
65	130	110	90	6	60	83	185	150	45	125	90	25	3.1	4.2
70	135	115	95	6	65	88	195	160	50	130	95	25	3.8	5.0
75	140	120	100	6	70	93	205	170	55	140	105	30	4.3	6.0
80	145	125	105	6	75	98	215	180	60	145	110	30	4.9	7.2
85	150	130	110	6	80	105	225	190	65	155	120	35	5.6	9.0
90	155	135	115	6	85	110	240	205	70	165	130	35	6.4	9.8
95	160	140	120	8	90	115	255	220	75	170	135	40	7.3	10.8
100	165	145	125	8	95	120	265	230	80	175	140	40	8.2	12
105	170	150	130	8	100	126	280	245	85	185	150	45	9.2	13.4
110	175	155	135	8	105	132	295	260	90	195	160	45	10.5	15
