MARINE SHAFTING PARTS

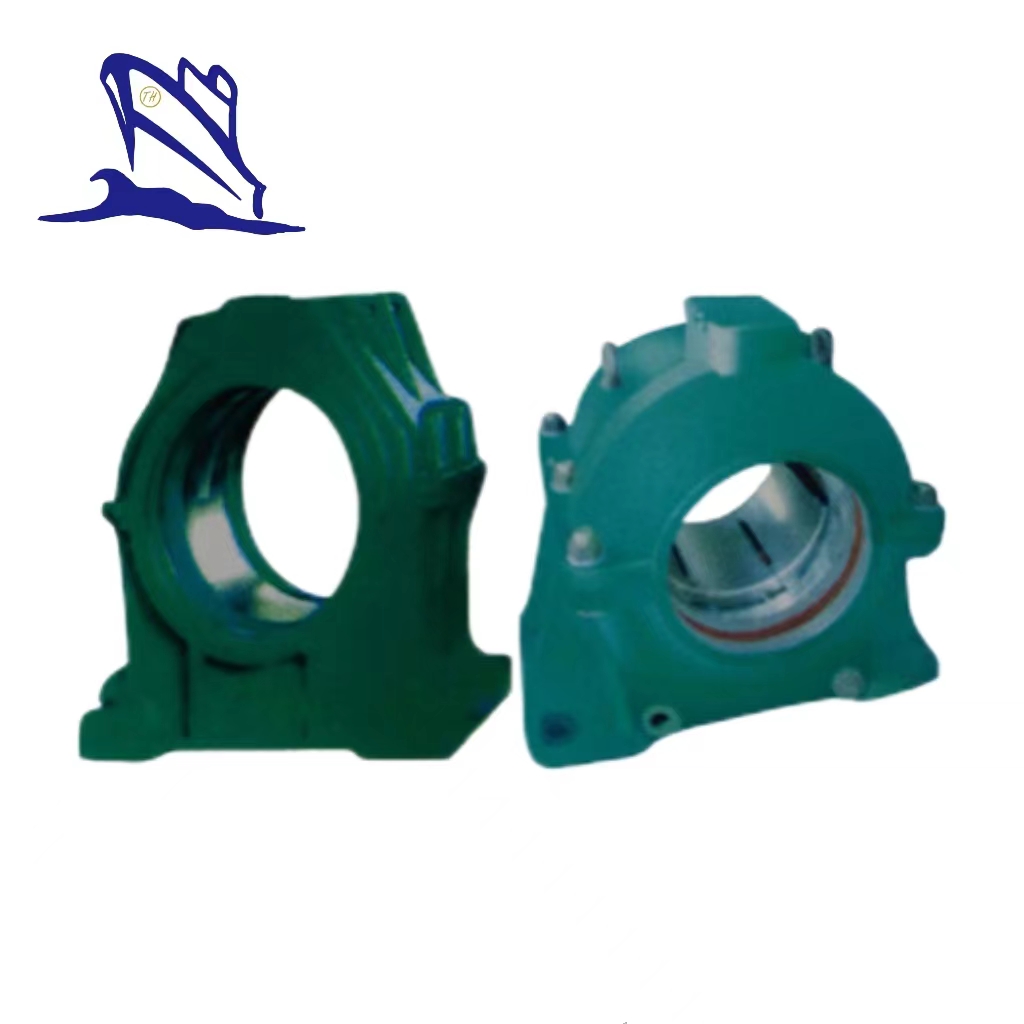

GB/T14364-2008 Marine Shafting Gliding Intermediate Bearing

GB/T14364-2008 Marine Shafting Gliding Intermediate Bearing

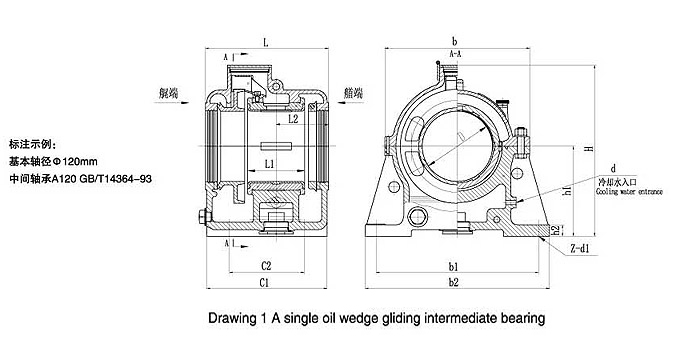

This product is gliding intermediate bearing for ships. It is in accord with GB/T14364-2008 standard and suitable for vessels in inland water. We can supply three types of this product: type A, type B, and type C. Large vessels are suggested to choose type C. Small and medium vessels are suggested to choose type A and B. A Type B has no upper bearing among the three types. We can provide certificates like CCS, ABS, BV, DNV, and RINA about this product according client request.

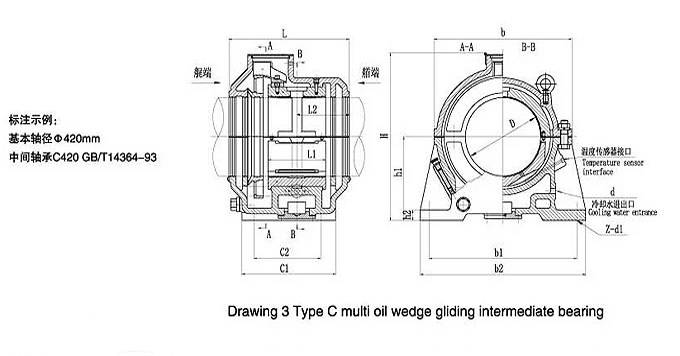

Drawing of Marine Type C Gliding Intermediate Bearing

unit: mm

D	L1	L2	H	H1	H2	b	d1	d2	d2	c1	c2	d1	d	z	Type
80	190	65	79.5	262	135	23	220	250	296	185	125	21	G^2/4*	4	A
100	200	80	85	270	145	23	240	270	316	195	135	21	G^3/4*	4
120	225	100	97	312	160	25	270	300	350	220	160	21	G^3/4*	4
140	250	115	107.5	370	190	28	304	340	390	244	194	21	G^3/4*	4
160	280	130	119	400	205	28	330	370	420	274	224	21	20	4
180	335	145	140	485	265	30	400	450	510	285	230	25	20	4
200	350	160	140	496	275	35	410	450	510	326	250	25	20	4
220	380	180	164	544	292	38	430	490	566	374	298	25	20	4
250	420	195	187	580	300	40	490	530	610	322	250	32	20	4	B、C
280	450	215	199	620	310	40	520	560	630	340	270	32	20	4
300	480	230	209	635	320	40	550	590	660	370	298	32	20	4
320	500	250	219	690	350	50	580	630	700	390	320	32	20	4
350	350	270	236	780	400	50	650	700	780	418	334	38	20	4
380	560	290	240	790	420	55	710	760	840	460	380	38	25	4
400	590	300	260	810	440	5	730	780	860	480	400	38	25	4
420	620	320	265	900	460	65	770	820	920	500	400	44	25	4
450	660	340	280	930	480	65	810	840	940	528	424	44	32	4
480	680	360	298	960	500	65	820	870	970	545	445	50	32	4
500	710	380	305	1060	570	70	900	1000	1120	600	480	50	32	4
530	730	410	315	1090	580	70	920	1020	1140	620	500	50	32	4
560	780	430	355	1140	620	75	970	1080	1200	674	554	50	32	4
600	600	460	380	1180	650	75	1000	1130	1260	700	580	50	32	4
630	860	480	380	1220	670	80	1060	1170	1300	720	600	50	32	4
670	920	510	421	1260	690	85	1150	1250	1370	750	630	50	32	6
710	960	540	435	1330	710	85	1200	1340	1470	800	670	50	32	6
750	1050	570	435	1400	750	90	1260	1420	1580	850	710	60	32	6
800	1100	610	435	1480	800	90	1300	1460	1620	920	760	60	32	6
