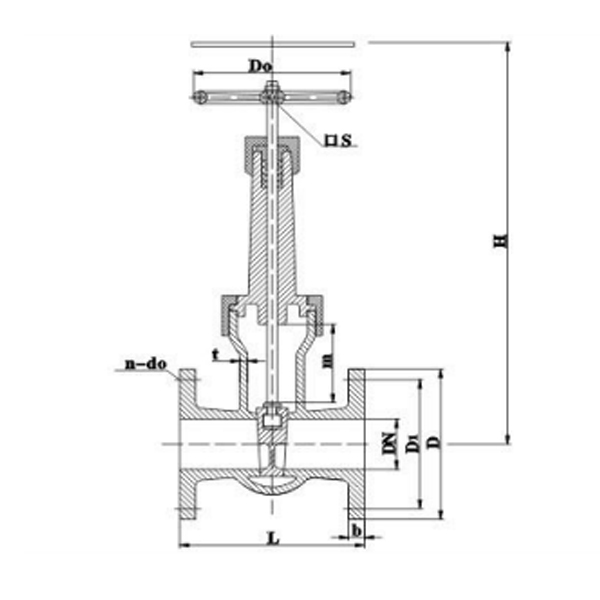

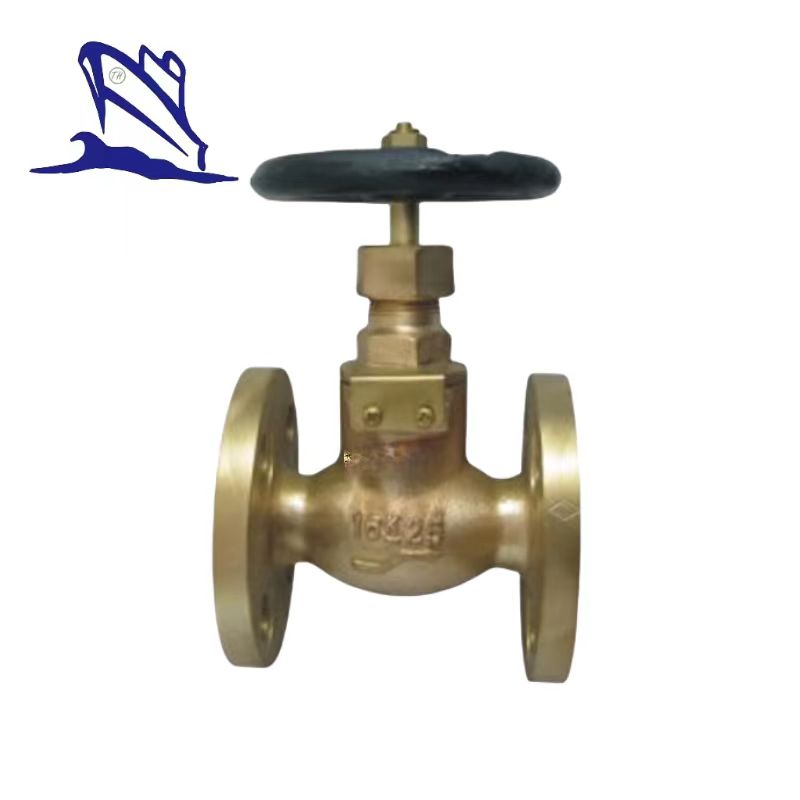

MARINE GATE VALVE

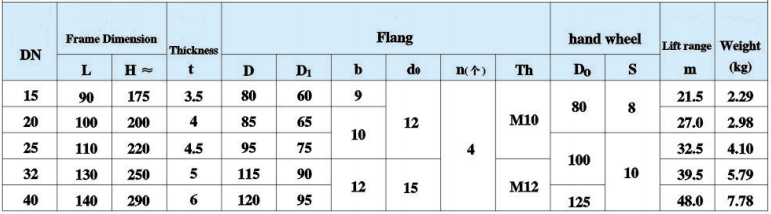

Technical Data

1. Available medium: Oil, Pulsation water.

2. DN: 15 ~ 40

3. Maximal actuating pressure: 0.5, 0.2, 0.7MPa

4. Material of main Parts:

(1). Body: Csat Tin Bronze;

(2), Cover: Cast Tin Bronze;

(3). Hand Wheel: Cast Iron;

(4). Stem: Lead Brass
