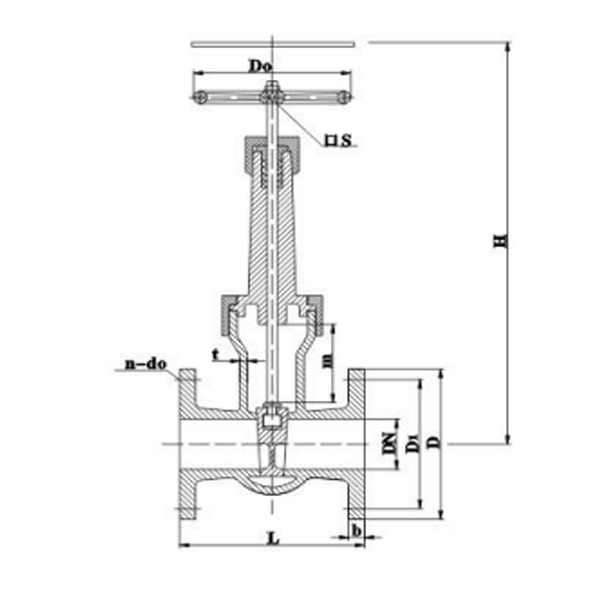

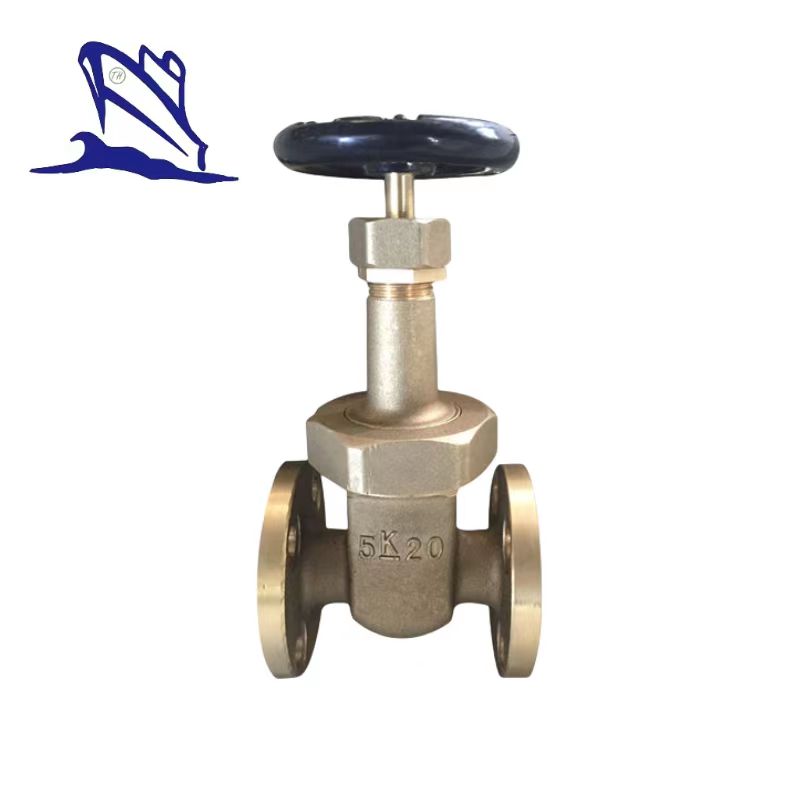

JIS F7364 Gate Valve
Available medium: Oil, Pulsation water.

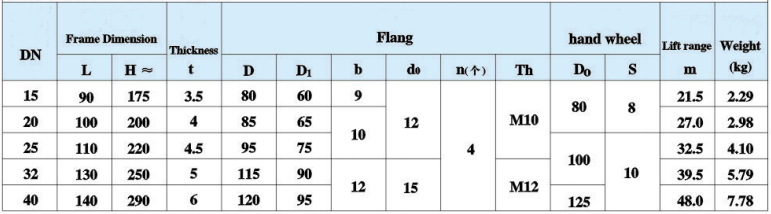

DN: 15 ~ 40
Maximal actuating pressure: 0.5, 0.2, 0.7MPa
Material of main Parts:
(1). Body: Csat Tin Bronze;
(2), Cover: Cast Tin Bronze;
(3). Hand Wheel: Cast Iron;
(4). Stem: Lead Brass
