MARINE SHAFTING PARTS

HPSD-II Water lubrication End Face Seal

HPSD-II Water lubrication End Face Seal

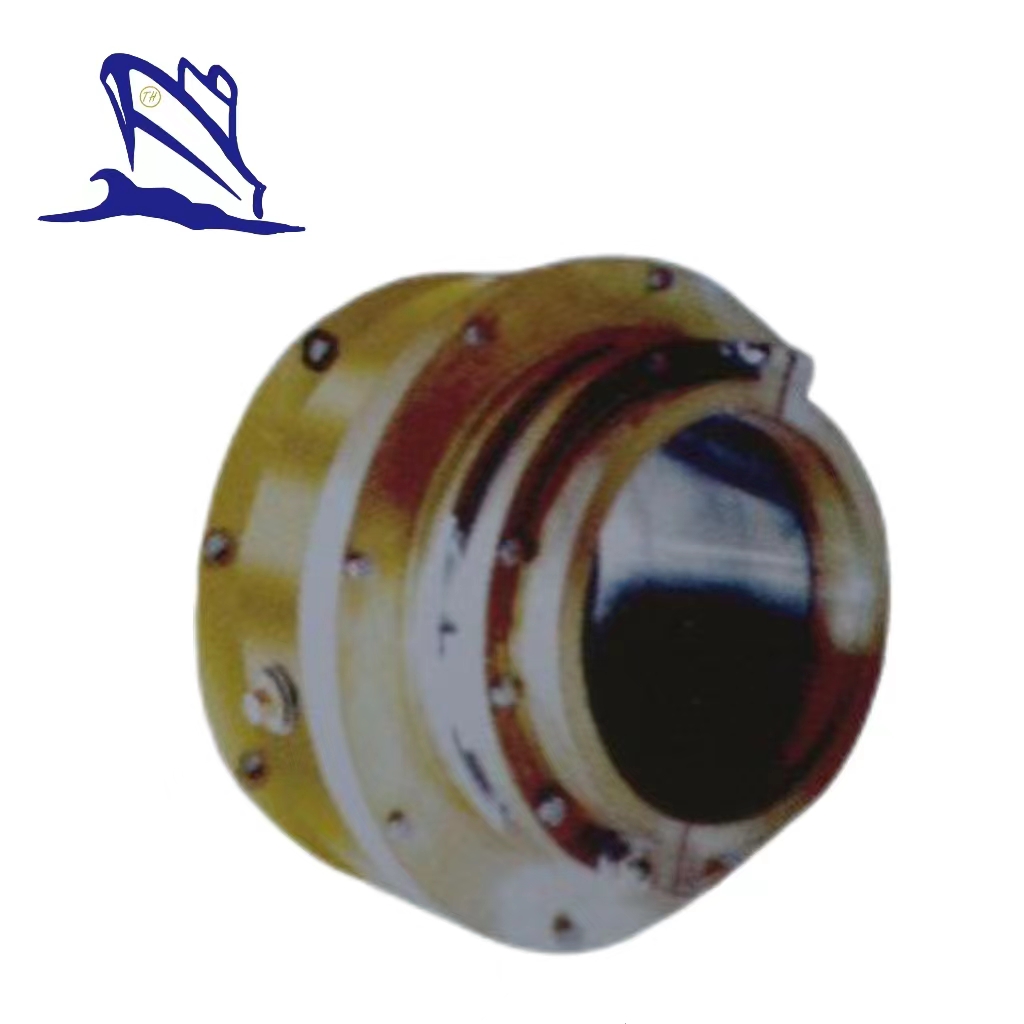

This product is HPSD-II type water lubricated end face seal. It is suitable for kinds of vessels whose working medium is water and which have a large stern shaft diameter and axial vibration. The sizes of this product in the below are for reference only. The product can be manufactured according to customer’s request.

Drawing of HPSD-II Water lubrication End Face Seal

Specifications	Dimensions (mm)
Specifications	B	C	D	L	T	E		F
155	340	300	255	340	20	8	M12	10
185	450	390	230	298	25	8	M20	10
200	460	420	350	370	25	8	M20	10
230	460	395	345	370	25	8	M16	10
255	480	440	370	370	25	8	M20	10
280	500	440	400	330	25	8	M20	10
302	550	500	425	460	25	8	M20	10
325	590	510	445	460	25	8	M20	12
354	670	620	570	460	25	8	M20	12
385	700	595	515	520	30	8	M24	12
405	680	630	530	455	30	8	M24	12
425	740	635	555	520	30	8	M24	12
445	715	655	575	495	30	8	M24	12
465	735	675	595	495	30	8	M24	12
490	750	700	620	500	30	12	M20	15
520	800	750	680	520	30	12	M20	15
550	900	780	695	520	30	12	M24	15
590	950	820	735	580	30	12	M24	15
