Marine JQ/CS 48A Type Stern Tube Seal
Marine JQ/CS 48A Type Stern Tube Seal

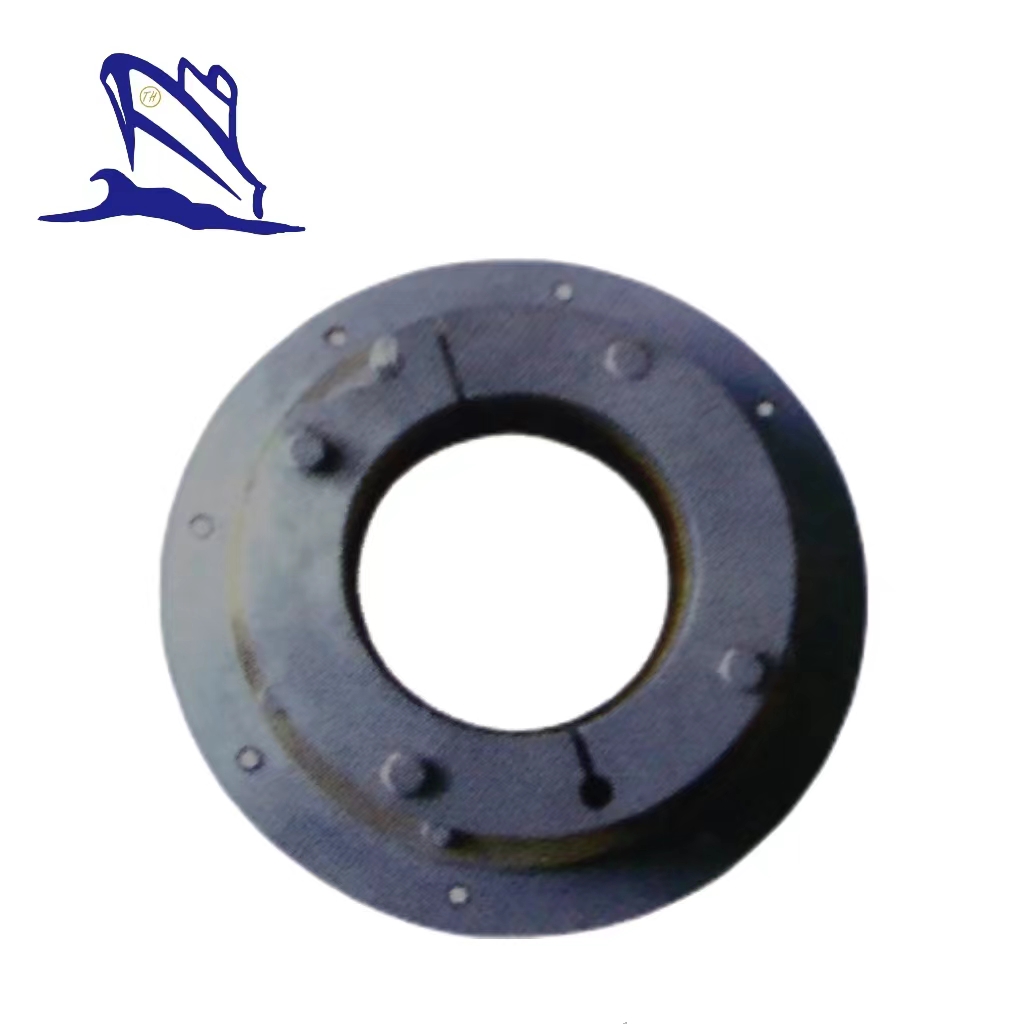

This product is JQ/CS 48A type stern tube seal. It is a kind of oil lubricated stern tube seals. It is suggested for inland water vessels especially for small yachts. It is approved by certificates such as CCS, ABS, GL, NK, DNV, BV, etc

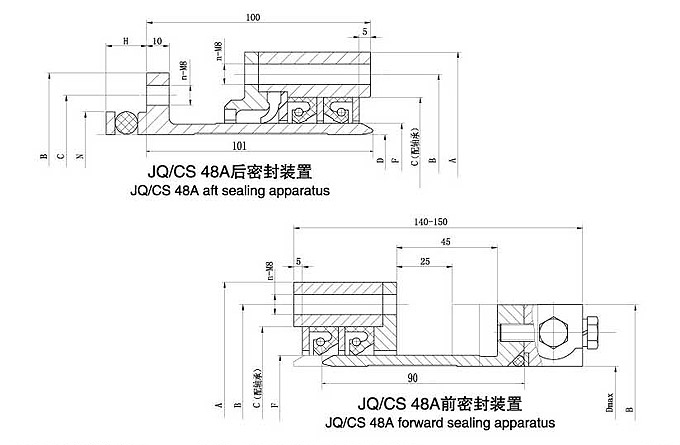

Drawing of Marine 48A Type Stern Tube Seal
unit: mm
Specification | D | A | B | C | F | H | N | n | Weight (kg) | |
Front | Back | |||||||||
45 | 38 | 110 | 90 | 70 | 45 | 12 | 50 | 4 | 4.5 | 5 |
50 | 43 | 115 | 95 | 75 | 50 | 12 | 55 | 4 | 4.8 | 5.3 |
55 | 48 | 120 | 100 | 80 | 55 | 12 | 60 | 4 | 5.2 | 5.7 |
60 | 52 | 125 | 105 | 85 | 60 | 12 | 65 | 4 | 5.6 | 6.1 |
65 | 57 | 130 | 110 | 90 | 65 | 12 | 70 | 6 | 6.0 | 6.5 |
70 | 60 | 135 | 115 | 95 | 70 | 12 | 75 | 6 | 6.4 | 7.0 |
75 | 67 | 140 | 120 | 100 | 75 | 12 | 80 | 6 | 6.8 | 7.5 |
80 | 70 | 145 | 125 | 105 | 80 | 17 | 90 | 6 | 7.3 | 8.1 |
85 | 75 | 150 | 130 | 110 | 85 | 17 | 95 | 6 | 7.8 | 8.8 |
90 | 80 | 155 | 135 | 115 | 90 | 17 | 100 | 6 | 8.5 | 9.8 |
95 | 85 | 160 | 140 | 120 | 95 | 17 | 105 | 8 | 9.2 | 11 |
100 | 90 | 165 | 145 | 125 | 100 | 17 | 110 | 8 | 9.9 | 12.5 |
10.5 | 95 | 170 | 150 | 130 | 105 | 17 | 115 | 8 | 10.8 | 14 |
110 | 100 | 175 | 155 | 135 | 110 | 17 | 120 | 8 | 12 | 15.5 |
