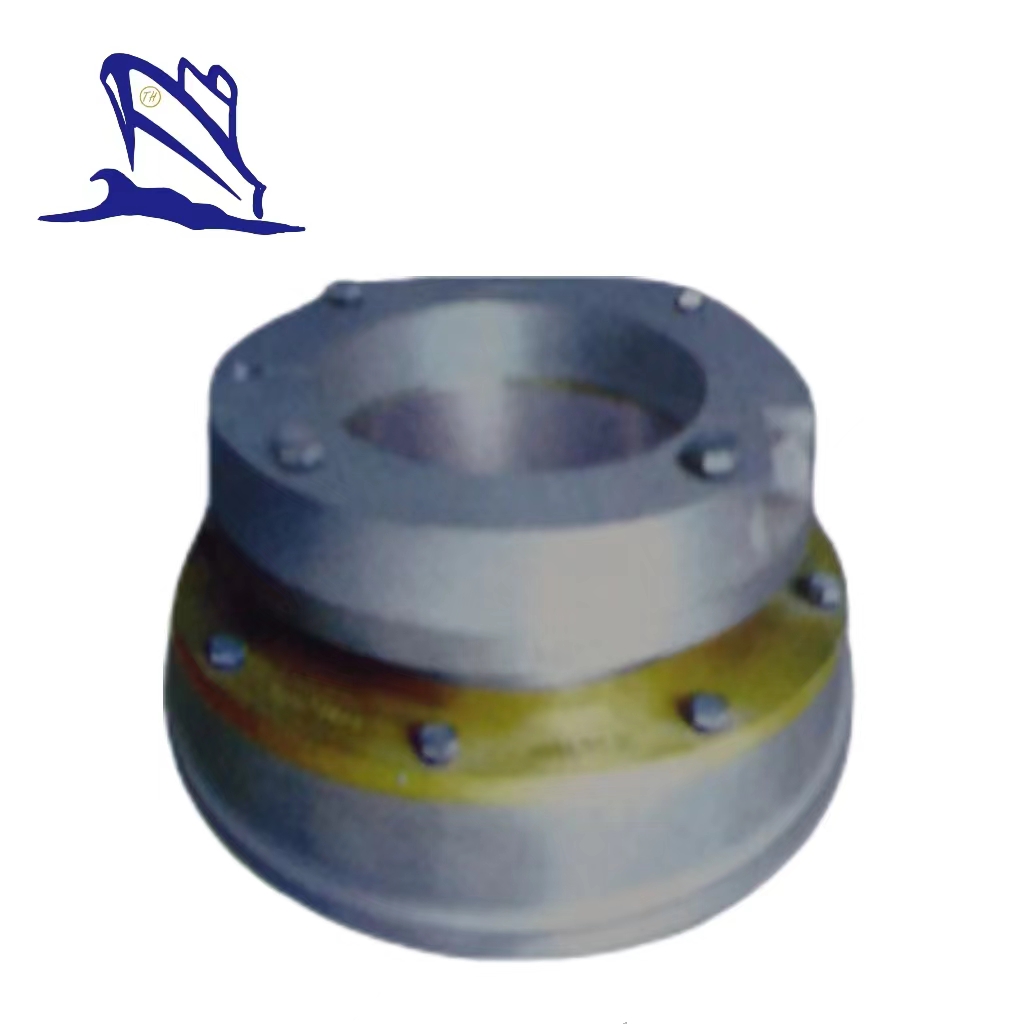

Marine JQ/CS 39 Type Stern Tube Seal




Marine JQ/CS 39 Type Stern Tube Seal

This product is JQ/CS 39 type stern tube seal. Approved by certificates such as CCS, ABS, DNV, BV, this type of apparatuses is suggested to be chosen when inland water vessels have oil as their lubricating working medium and do not have a large stern shaft.



Drawing of Marine JQ/CS 39 Type Stern Tube Seal

unit: mm

Model

D

A

B

C

E

H

K

T

N

P

S

n

F

Weight (kg)

Front

Back

70JQ/CS39

70

176

150

122

110

17.5

144

116

90

130

145

6

80

9

10.5

80JQ/CS39

80

185

160

132

120

17.5

146

126

100

140

155

6

90

10.2

11.8

90JQ/CS39

90

195

170

142

130

17.5

148

136

110

150

165

8

100

11.5

13.5

100JQ/CS39

100

205

180

152

140

175

150

146

120

160

175

8

110

13

16

110JQ/CS39

110

220

190

162

150

17.5

150

156

130

170

185

8

120

15

19

120JQ/CS39

120

235

200

172

160

20

152

166

145

180

195

8

130

17.8

22.5
