MARINE SHAFTING PARTS

Marine JQ-CS 49 Type Stern Tube Seal

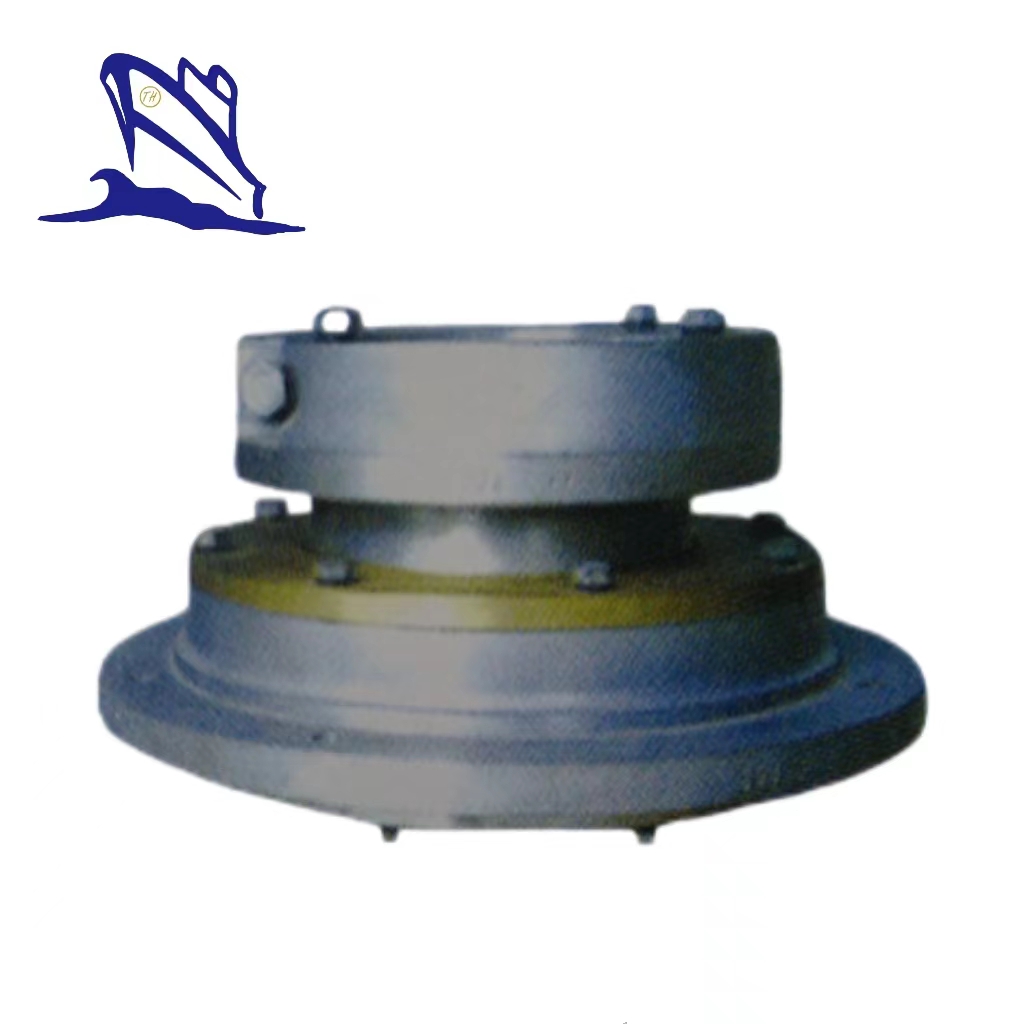

Marine JQ/CS 49 Type Stern Tube Seal

This product is the JQ/CS 49 type stern tube seal. Certified by CCS, BV, ABS and other classification society certificates, this type of apparatuses is suitable for vessels in inland water whose lubricating working medium is oil. When the inland water vessels do not have a large stern shaft, this product is suggested to be chosen.

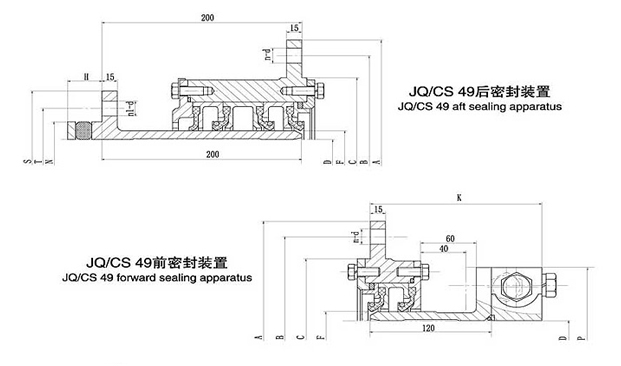

Drawing of Marine JQ/CS 49 Type Stern Tube Seal

unit: mm

Model	D	A	B	C	F	H	K	N	P	S	T	n	d	n1	Weight (kg)
Model	D	A	B	C	F	H	K	N	P	S	T	n	d	n1	Front	Back
130JQ/CS49	130	320	290	250	145	28	140	160	215	230	200	8	11	8	26	38
150JQ/CS49	150	345	310	270	165	28	145	180	235	250	220	8	11	8	29	42
170JQ/CS49	170	366	336	292	185	28	150	200	260	270	240	12	13	8	34	46
190JQ/CS49	190	390	360	320	205	28	160	220	290	295	260	12	13	8	40	53
210JQ/CS49	210	410	380	335	225	32	160	246	310	320	280	16	13	12	45	59
230JQ/CS49	230	445	410	370	245	32	170	266	350	340	300	16	15	12	53	66
250JQ/CS49	250	475	440	390	270	34	175	290	370	360	326	16	17	12	60	73
280JQ/CS49	280	505	470	420	300	34	180	320	400	390	356	16	17	12	68	82
320JQ/CS49	320	550	510	460	340	34	180	360	440	430	390	16	22	12	76	90
360JQ/CS49	360	590	550	500	380	36	180	405	480	470	430	16	22	12	84	98
