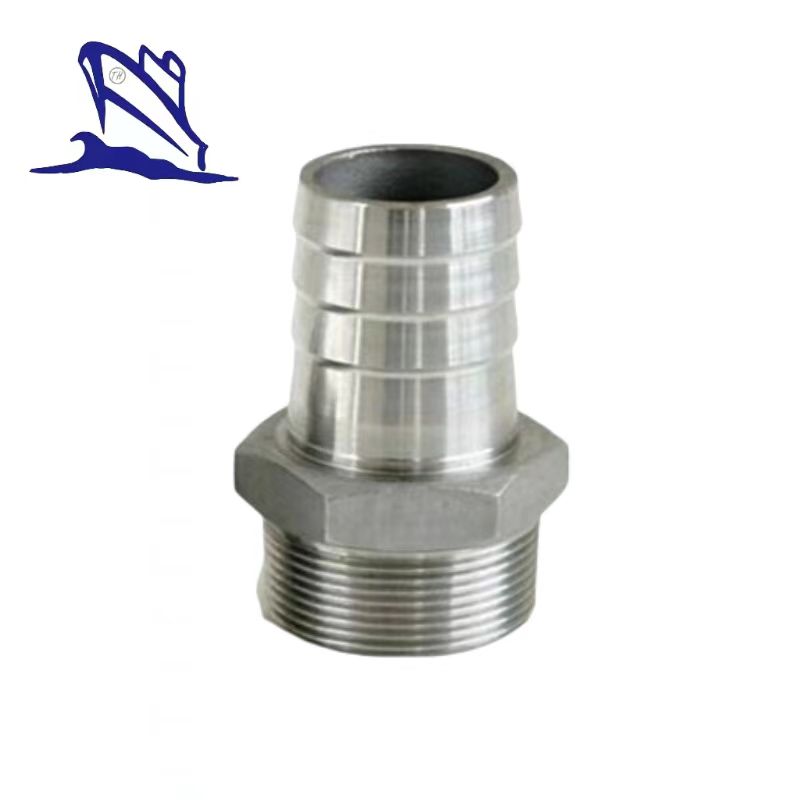

High-quality steel Hose Tail
High-quality steel Hose Tail
This type of High-quality steel Hose Tail is coupling with high quality. This Hose Tails can be used for a range of different media such as water oil and air and are predominantly used in the hydraulic and pneumatic industries. And it is available in a variety of thread combinations and connections.
Product detail:
Place of Origin: Chongqing, China (Mainland)
Brand Name: HI-SEA
Material: Aluminum/ Brass/ stainless steel
Other name: Aluminum/ Brass/ stainless steel Hose Tail
Size: 1' 2' 3' 4'
Technics: Casting
Casting method: Gravity casting
Specification: MIL-C27487
Max Pressure at 20 Degrees Celsius: 16 Bar
Connection: hose shank
Shape: round
Head Code: round
High-quality steel Hose Tail Tail index
DIM | A | B | D | Kg/100 |
inch | mm | mm | mm | |
1/2 | 23.2 | 6.3 | 38.5 | 6.05 |
3/4 | 29 | 66 | 38 | 10.05 |
1 | 34.8 | 71 | 42.2 | 21.25 |
1 -1/4 | 45 | 77.8 | 46 | 24.75 |
1 -1/2 | 50 | 89.5 | 55 | 38.15 |
2 | 61.3 | 96.2 | 59.5 | 60.5 |
2 -1/2 | 78.5 | 116.5 | 72 | 92.85 |
3 | 93.5 | 128 | 80.6 | 138.7 |
4 | 118.5 | 138 | 84 | 222.9 |
