CB MARINE VALVE

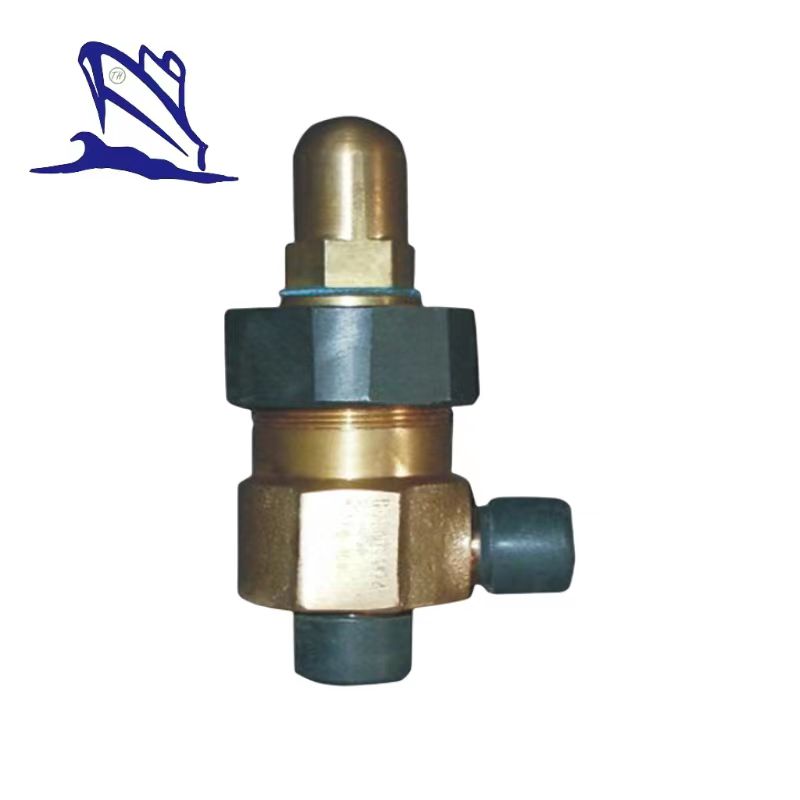

Marine Bronze Male Screw Thread Angle Safety Valve CB907-1994

Marine Bronze Male Screw Thread Angle Safety Valve CB907-1994:

1.Design standard:CB907-1994.

2.End standard:CB56-80.

3.End type:Thread.

4.DN:10mm-25mm.

5.Main material:

6.Application:Sea water piping,fresh water piping and oil piping.

7.Function:Such valves are used for pressure control.

8.Fundamental dimensions of Marine Bronze Male Screw Thread Angle Safety Valve CB907-1994

DN	PN	Flange connection dimension	Height	Structure length
mm	Mpa	M/mm	H/mm	L/mm
10	0.1~0.25	M22x1.5	138	40
	0.25~0.6
	0.6~0.9
	0.9~1.2		140
	1.2~1.6
	1.6~2.5	M27x1.5	146	42
	2.5~3.2		149
15	0.1~0.25	M30x2	148	48
	0.25~0.6
	0.6~0.9
	0.9~1.2		155
	1.2~1.6
	1.6~2.5	M36x2	162	50
	2.5~3.2
20	0.1~0.25	M36x2	170	55
	0.25~0.6
	0.6~0.9
	0.9~1.2
	1.2~1.6
	1.6~2.5	M39x2	176	60
	2.5~3.2		186
25	0.1~0.25	M42x2	190	60
	0.25~0.6
	0.6~0.9
	0.9~1.2
	1.2~1.6		197
	1.6~2.5	M48x2	203	67
	2.5~3.2		210
