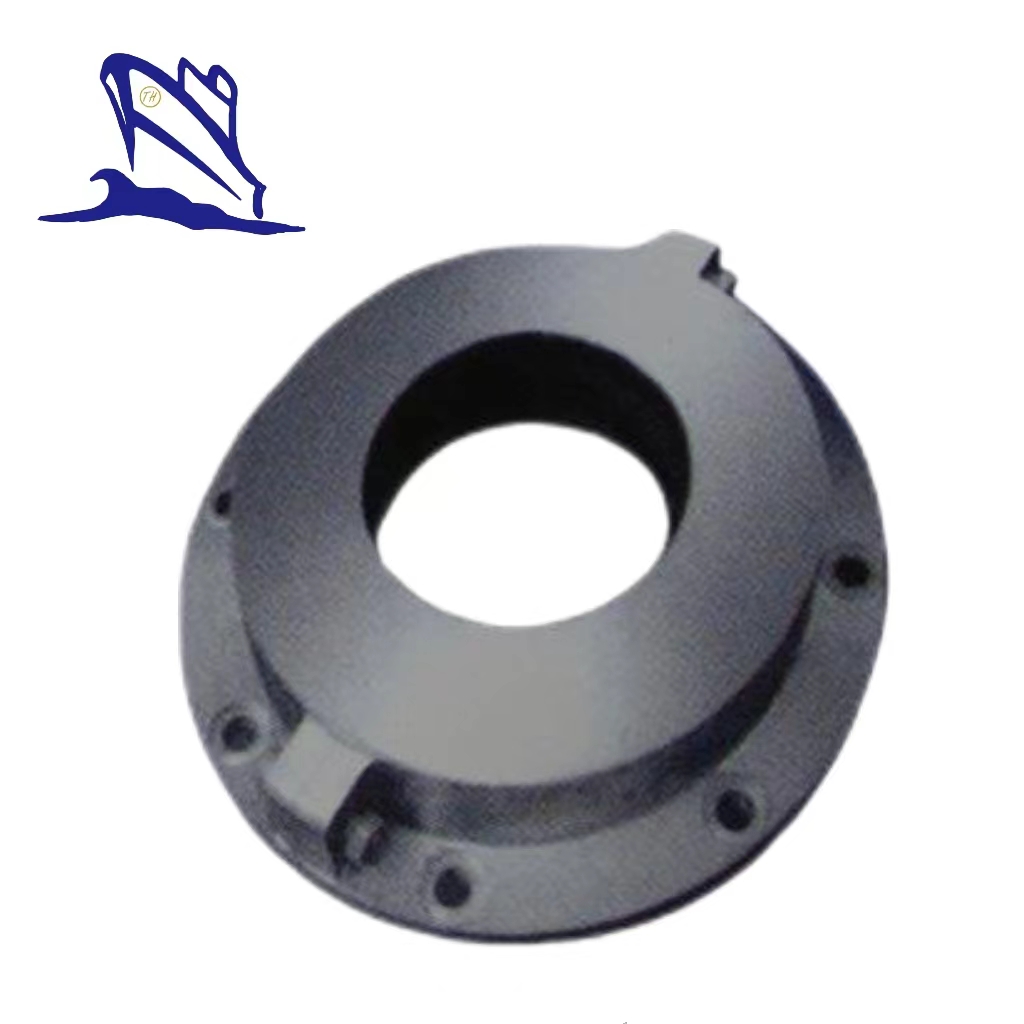

BSD Type Bulkhead Seal
BSD Type Bulkhead Seal
This product is BSD type bulkhead seal for ships. It is suggested that small and medium yachts or vessels should equip with this floating self-sealing bulkhead sealing apparatus. The sizes of the product in the following table are for reference only. If customers have some other demand, we can make a special design.

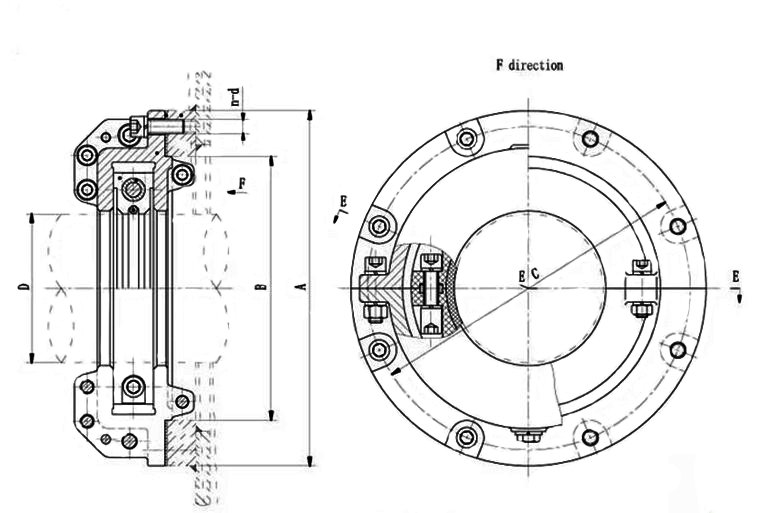

Drawing of BSD Bulkhead Seal
Size | 70 | 80 | 90 | 106 | 110 | 122 | 125 | 130 | 150 | 170 | 175 | 180 | 200 | |
Dimensions (mm) | D | 70 | 80 | 90 | 106 | 110 | 122 | 125 | 130 | 150 | 170 | 175 | 180 | 200 |
A | 250 | 225 | 270 | 305 | 290 | 305 | 270 | 310 | 330 | 335 | 350 | 360 | 380 | |
B | 170 | 180 | 190 | 230 | 210 | 238 | 245 | 230 | 250 | 280 | 280 | 280 | 300 | |
C | 220 | 200 | 240 | 276 | 260 | 276 | 225 | 282 | 300 | 306 | 310 | 330 | 350 | |
n-d | 8-M10 | 8-M10 | 8-M10 | 8-M10 | 8-M10 | 8-M10 | 8-M10 | 8-M12 | 8-M12 | 8-M12 | 8-M12 | 8-M12 | 8-M12 | |
