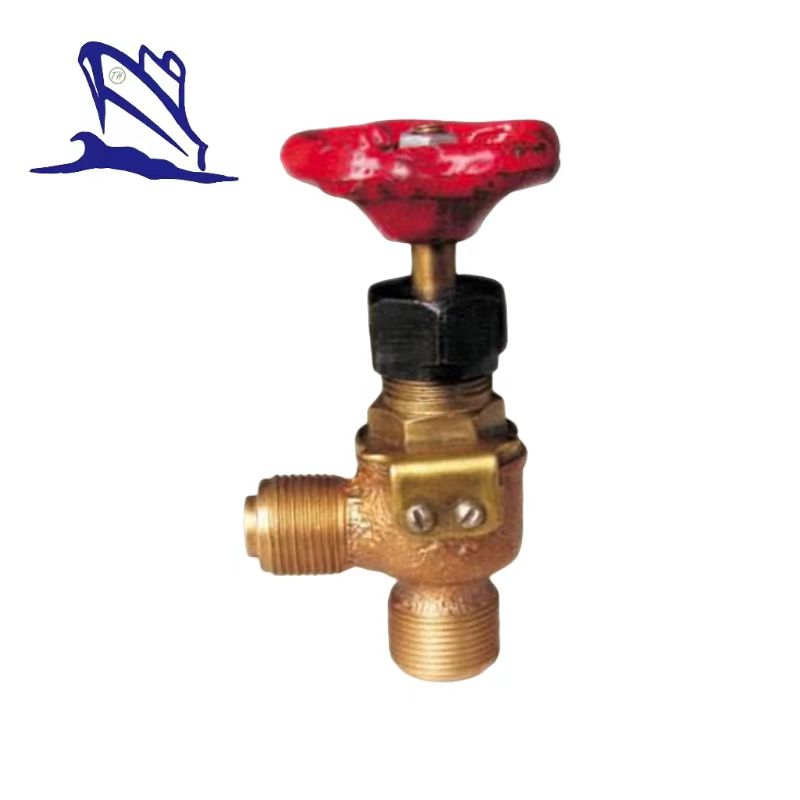

Marine Male Screw Thread Bronze Throttle Valve CB315-1993
Marine Male Screw Thread Bronze Throttle Valve CB315-1993:
1.Design standard:CB315-1993.
2.End standard:CB56-80.
3.End type:Thread.
4.PN:4.0Mpa.
5.DN:10mm-25mm.
6.Main material:
- Body/Bonnet:ZCuAl9Mn2;
- Stem:QAl9-2;
- Disc:QAl9-2.
7.Application:Water piping,oil piping and steam piping.
8.Function:Such valves are used for regulating the flow rate.
9.Fundamental dimensions of Marine Male Screw Thread Bronze Throttle Valve CB315-1993:
DN | Structure dimension | Thickness | Screw connection dimension | Hand wheel | Lift range | Weight | ||||||
mm | L/mm | H1/mm | H/mm | δ/mm | D/mm | l/mm | d1/mm | d2/mm | D0/mm | S/mm | m | kg |
10 | 53 | 49 | 139 | 6 | M27x1.5 | 16 | 24.8 | 14 | 80 | 8 | 10 | 1.18 |
15 | 58 | 58 | 148 | M36x2 | 22 | 33.0 | 22 | 80 | 8 | 13 | 1.40 | |
20 | 64 | 64 | 156 | M39x2 | 23 | 36.0 | 25 | 100 | 9 | 15 | 1.92 | |
25 | 72 | 72 | 176 | M48x2 | 26 | 45.0 | 32 | 120 | 11 | 18 | 2.67 | |
